Each Source and Display contains a status indicator border color, displaying current
information about the device. This is particularly useful for devices that may be in a
separate part of a building or several miles away.
Meaning
OK
Meaning
Warning

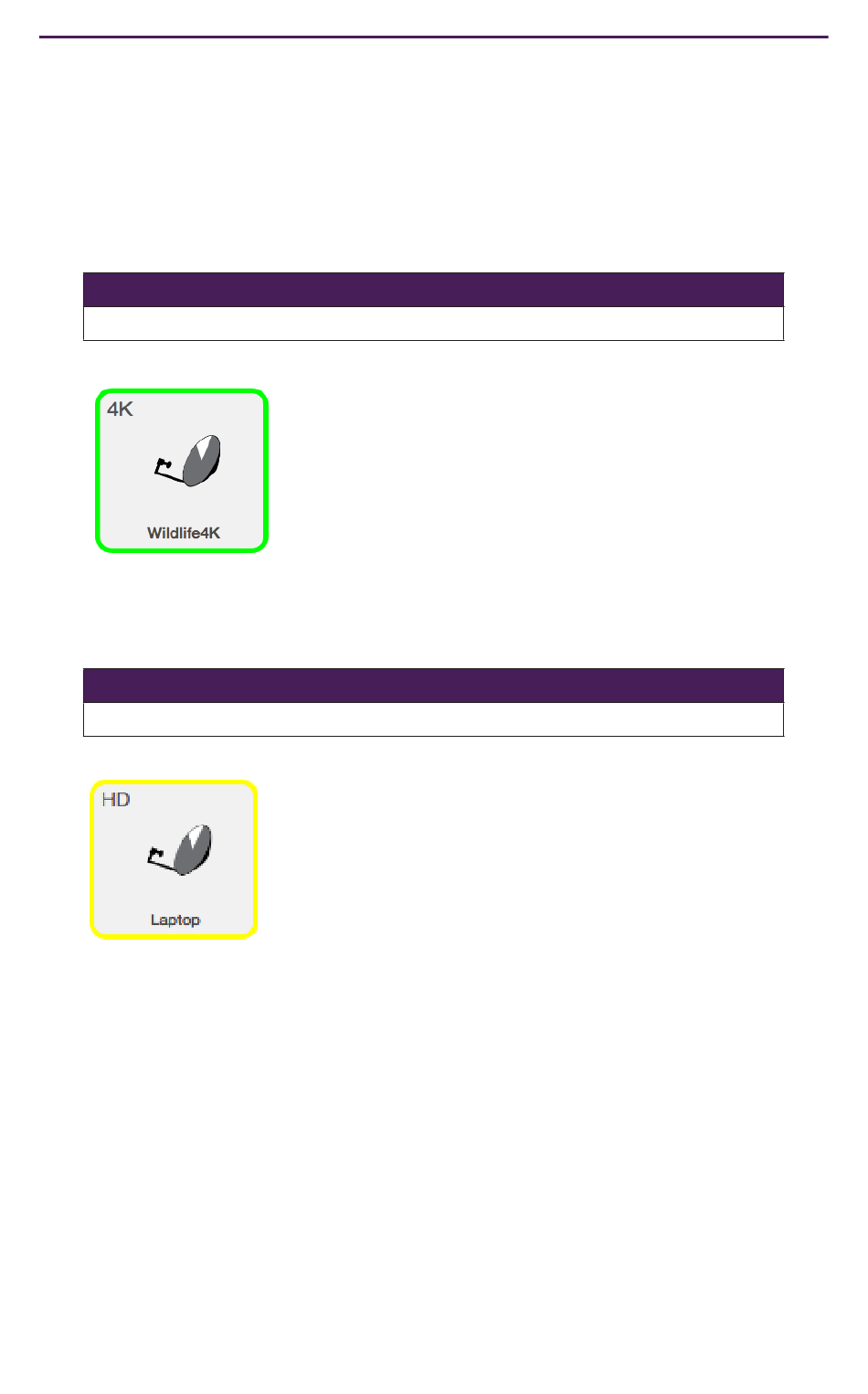

Device Status Indicators
Indicator Color
Green
1.
Indicates that an HDMI cable is connected between
the encoder and the source or between the decoder
and a display or other sink device.
2.
The encoder / decoder is powered.
3.
The Ethernet cable is connected between the switch
and the encoder / decoder.
Indicator Color
Yellow
1.
HDMI cable may not be connected between the
encoder and the source or between the decoder and a
display or other sink device.
Note that this indicator may also indicate a faulty
HDMI cable.
2.
The encoder / decoder is powered.
3.
The Ethernet cable is connected between the switch
and the encoder / decoder.
