Commands
Virtual IP: The IP address that the Master and Slave servers will use. This IP address must
be unique and available on the network as it will be used for telnet access for the API as
well as MaestroZ.
Virtual Mask: The subnet mask for the virtual interface, must be correct for the IP address
listed above and not it should not conflict with the main eth0 interface.
Preferred Roles Radio Button: The preferred roles for the server. This field is used to
decide the Master or Slave upon both servers initializing at the same time. Although rare,
this can occur.
State: The current role of the current Server connected to.
After configuration is complete on the Master, the information should populate to the Slave
server. The preferred roles for the Slave server will still need to be configured. This can
be done by logging into MaestroZ using the Slave server IP address and modifying the
Preferred roles.
The "State" field will reflect the servers current state.
5) After the configuration changes are made, login into MaestroZ with the Virtual IP
address configured above.

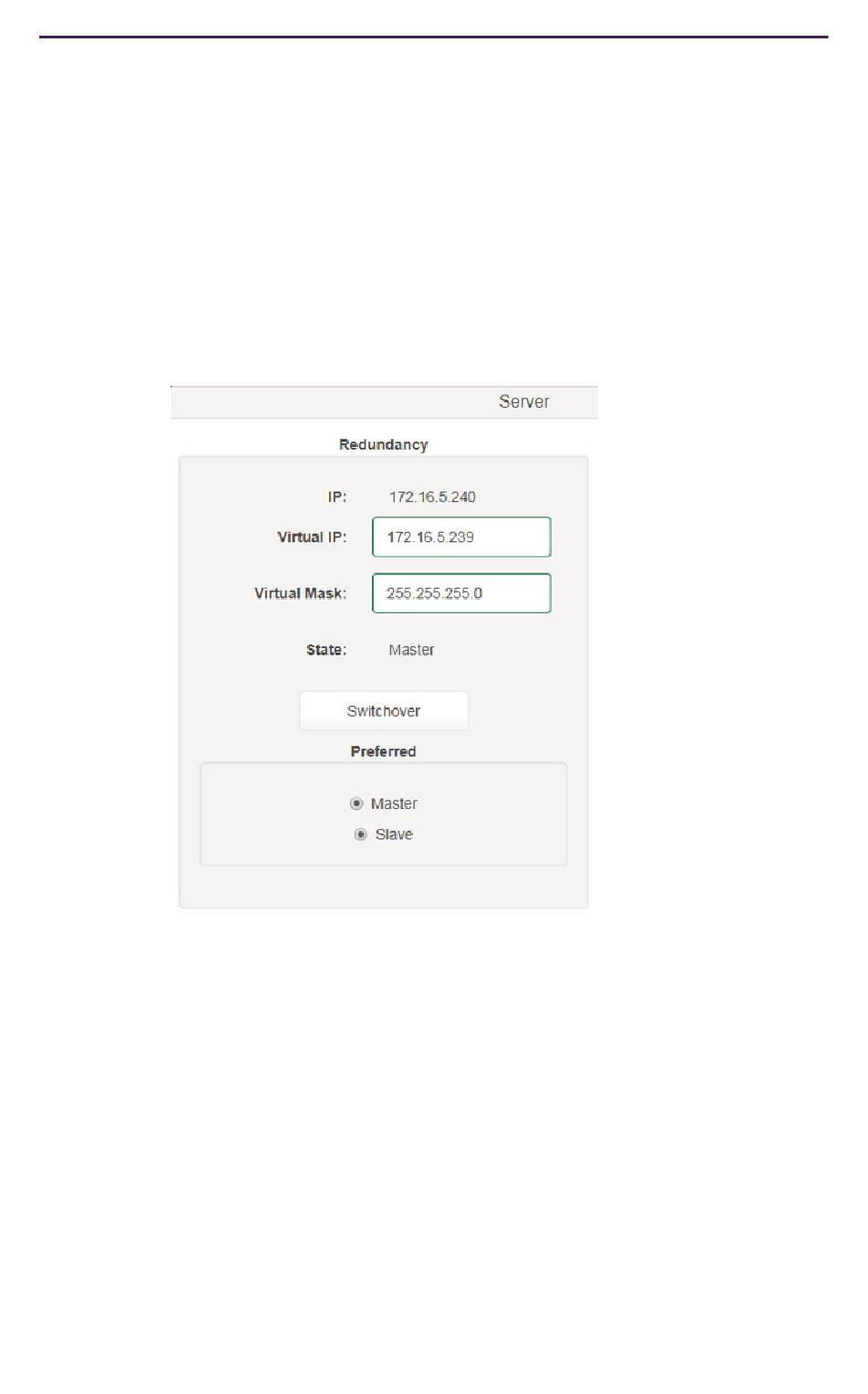

The server panel should show the correct redundancy information.
Note: The "switchover" button above will allow the servers to swap roles as needed.
