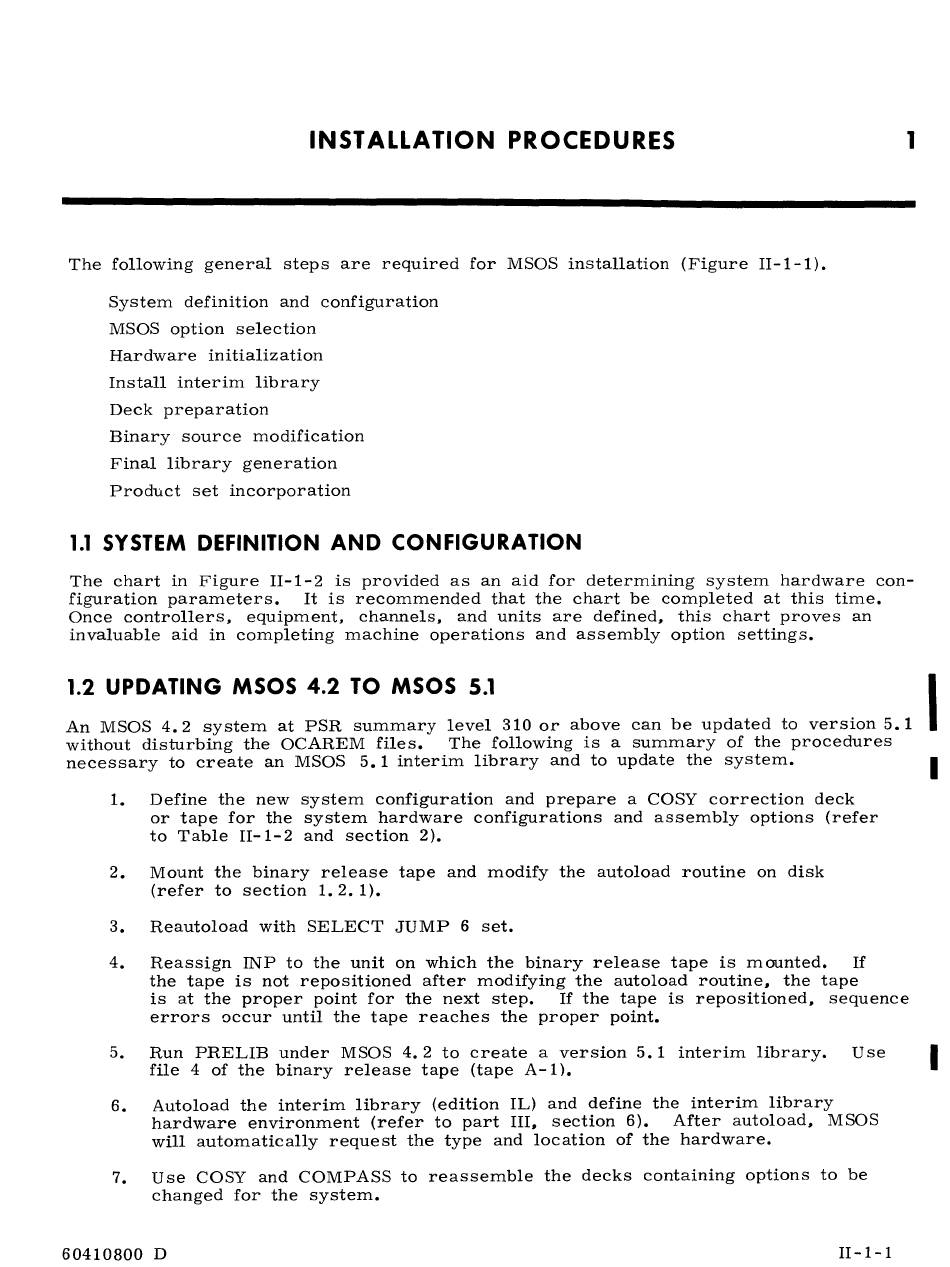

INSTALLATION PROCEDURES
The following general steps are required for MSOS installation (Figure II-I-I).
System definition and configuration
MSOS option selection
Hardware initialization
Install interim library
Deck preparation
Binary source modification
Final library generation
Product set incorporation
1.1 SYSTEM DEFINITION AND CONFIGURATION
1
The chart in Figure II-I-2 is provided as an aid for determining system hardware con-
figuration parameters. It is recommended that the chart be completed at this time.
Once controllers, equipment, channels, and units are defined, this chart proves an
invaluable aid in completing machine operations and assembly option settings.
1.2 UPDATING MSOS 4.2 TO MSOS 5.1
I
An MSOS 4.2 system at PSR summary level 310 or above can be updated to version 5.1
without disturbing the OCAREM files. The following is a summary of the procedures
necessary to create an MSOS 5.1 interim library and to update the system.
1. Define the new system configuration and prepare a COSY correction deck
or tape for the system hardware configurations and assembly options (refer
to Table II-I-2 and section 2).
2. Mount the binary release tape and modify the autoload routine on disk
(refer to section 1. 2. 1).
3. Reautoload with SELECT JUMP 6 set.
4. Reassign INP to the unit on which the binary release tape is mounted. If
the tape is not repositioned after modifying the autoload routine, the tape
is at the proper point for the next step. If the tape is repositioned, sequence
errors occur until the tape reaches the proper point.
I
5. Run PRELIB under MSOS 4.2 to create a version 5.1 interim library. Use
I
file 4 of the binary release tape (tape A-U.
6. Autoload the interim library (edition IL) and define the interim library
hardware environment (refer to part III, section 6). After autoload, MSOS
will automatically request the type and location of the hardware.
7. Use COSY and COMPASS to reassemble the decks containing options to be
changed for the system.
60410800 D
II-l-1
