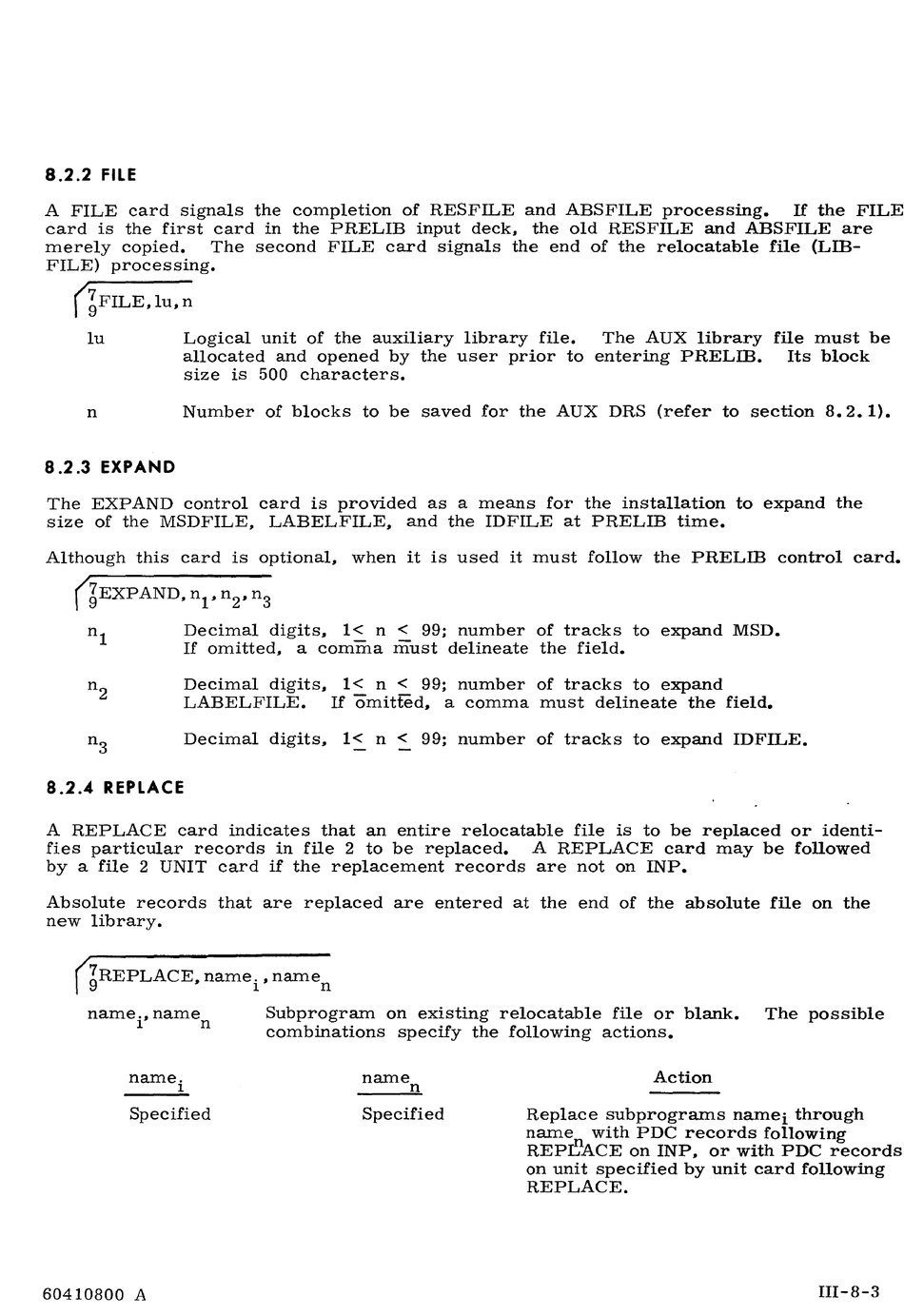

Control Data 3170 Installation Handbook page 256

8.2.2 FILE
A FILE card signals the completion of RESFILE and ABSFILE processing. If the FILE
card is the first card in the PRELIB input deck, the old RESFILE and ABSFILE are
merely copied. The second FILE card signals the end of the relocatable file (LIB-
FILE) processing.
(~FILE,
lu, n
lu Logical unit of the auxiliary library file. The AUX library file must be
allocated and opened by the user prior to entering PRELIB. Its block
size is 500 characters.
n Number of blocks to be saved for the AUX DRS (refer to section 8.2. 1).
8.2.3 EXPAND
The EXPAND control card is provided as a means for the installation to expand the
size of the MSDFILE, LABELFILE, and the IDFILE at PRELIB time.
Although this card is optional, when it is used it must follow the PRELIB control card.
(~EXPAND,
n l , n 2 , n3
Decimal digits, I
<
n
<
99; number of tracks to expand MSD.
If omitted, a comma must delineate the field.
Decimal digits, I
<
n
<
99; number of tracks to expand
LABELFILE. If omitted, a comma must delineate the field.
Decimal digits,
1<
n
<
99; number of tracks to expand IDFILE.
8.2.4 REPLACE
A REPLACE card indicates that an entire relocatable file is to be replaced or identi-
fies particular records in file 2 to be replaced. A REPLACE card may be followed
by a file 2 UNIT card if the replacement records are not on INP.
Absolute records that are replaced are entered at the end of the absolute file on the
new library.
(~REPLACE,
name i ' name n
name.
1
Specified
60410800
A
Subprogram on existing relocatable file or blank. The possible
combinations specify the following actions.
name
n
Specified
Action
Replace subprograms namei through
name with PDC records following
REPflACE on INP, or with PDC records
on unit specified by unit card following
REPLACE.
III-8-3
