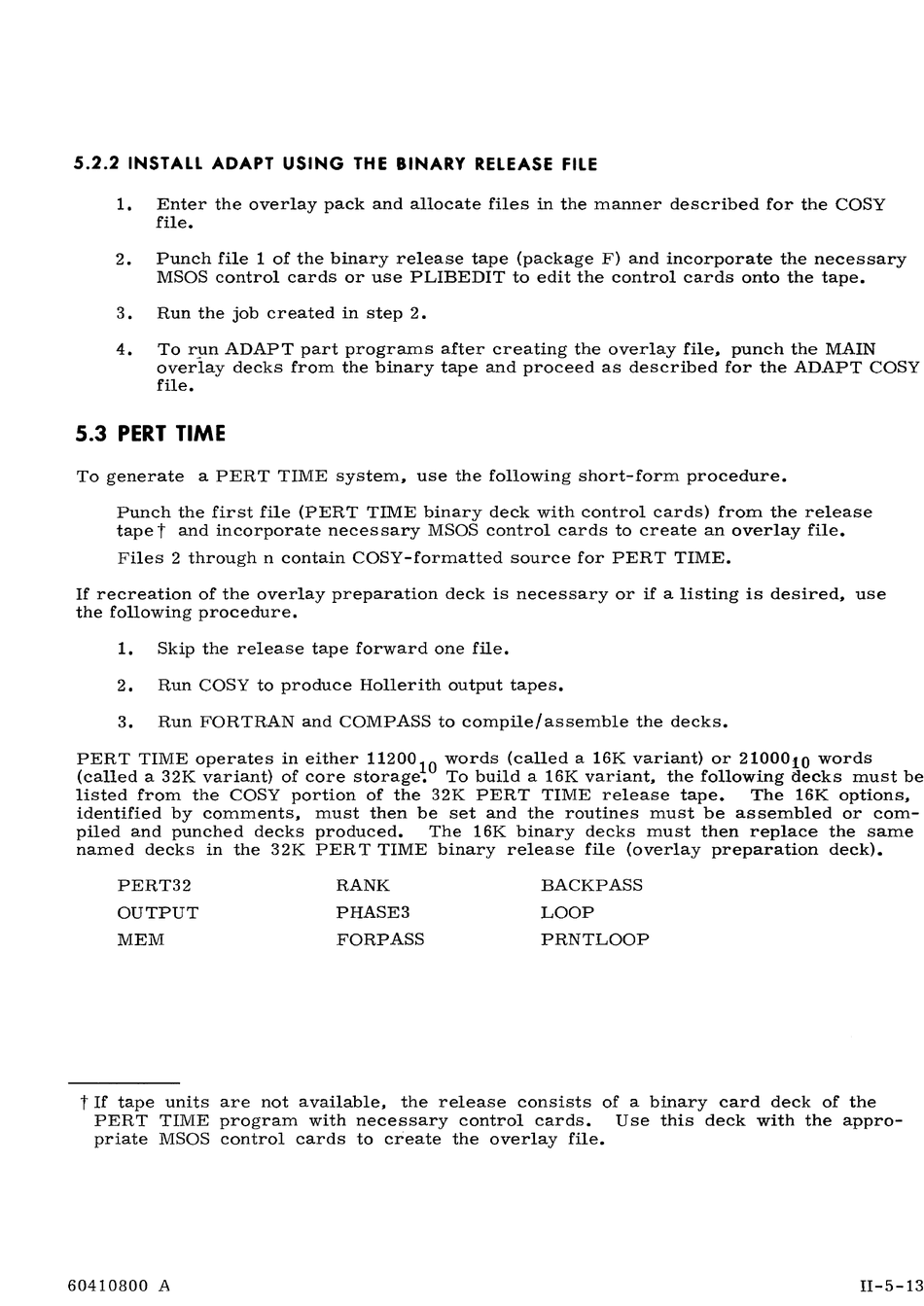

Control Data 3170 Installation Handbook page 130

5.2.2 INSTALL ADAPT USING THE BINARY RELEASE FILE
1. Enter the overlay pack and allocate files in the manner described for the COSY
file.
2. Punch file 1 of the binary release tape (package F) and incorporate the necessary
MSOS control cards or use PLIBEDIT to edit the control cards onto the tape.
3. Run the job created in step 2.
4. To r}ln ADAPT part programs after creating the overlay file, punch the MAIN
overlay decks from the binary tape and proceed as described for the ADAPT COSY
file.
5.3 PERT TIME
To generate a PERT TIME system, use the following short-form procedure.
Punch the first file (PERT TIME binary deck with control cards) from the release
tape
t
and incorporate necessary MSOS control cards to create an overlay file.
Files 2 through n contain COSY-formatted source for PERT TIME.
If recreation of the overlay preparation deck is necessary or if a listing is desired, use
the following procedure.
1.
Skip the release tape forward one file.
2. Run COSY to produce Hollerith output tapes.
3. Run FORTRAN and COMPASS to compile/assemble the decks.
PERT TIME oper.ates in either 11200
10
words. (called a
16~
variant) or 21.00010 words
(called a 32K varlant) of core storage. To bUlld a 16K varlant, the follOWIng decks must be
listed from the COSY portion of the 32K PERT TIME release tape. The 16K options,
identified by comments, must then be set and the routines must be assembled or com-
piled and punched decks produced. The 16K binary decks must then replace the same
named decks in the 32K PER T TIME binary release file (overlay preparation deck).
PERT32
OUTPUT
MEM
RANK
PHASE3
FORPASS
BACKPASS
LOOP
PRNTLOOP
t
If tape units are not available, the release consists of a binary card deck of the
PERT TIME program with necessary control cards. Use this deck with the appro-
priate MSOS control cards to create the overlay file.
60410800
A
U-5-13
