Fan Installation; Step 1 - Build The Wall Framing - Chore-Time Turbo Installation & Operator's Instruction Manual

14, 18, and 24 Fiberglass Turbo
The installation procedure is similar for the 14", 18", & 24" Turbo
difference is the size of opening required. See Figure 2.

Step 1 - Build the Wall Framing

Build wall framing as specified in Figure 2. The required wall opening for each fan is included in the chart below.
The Fans are shipped completely assembled and need only to be fastened to the wall.
8
®
Fans

Fan Installation

®
14" Turbo Fan
®
18" Turbo Fan
®
24" Turbo Fan

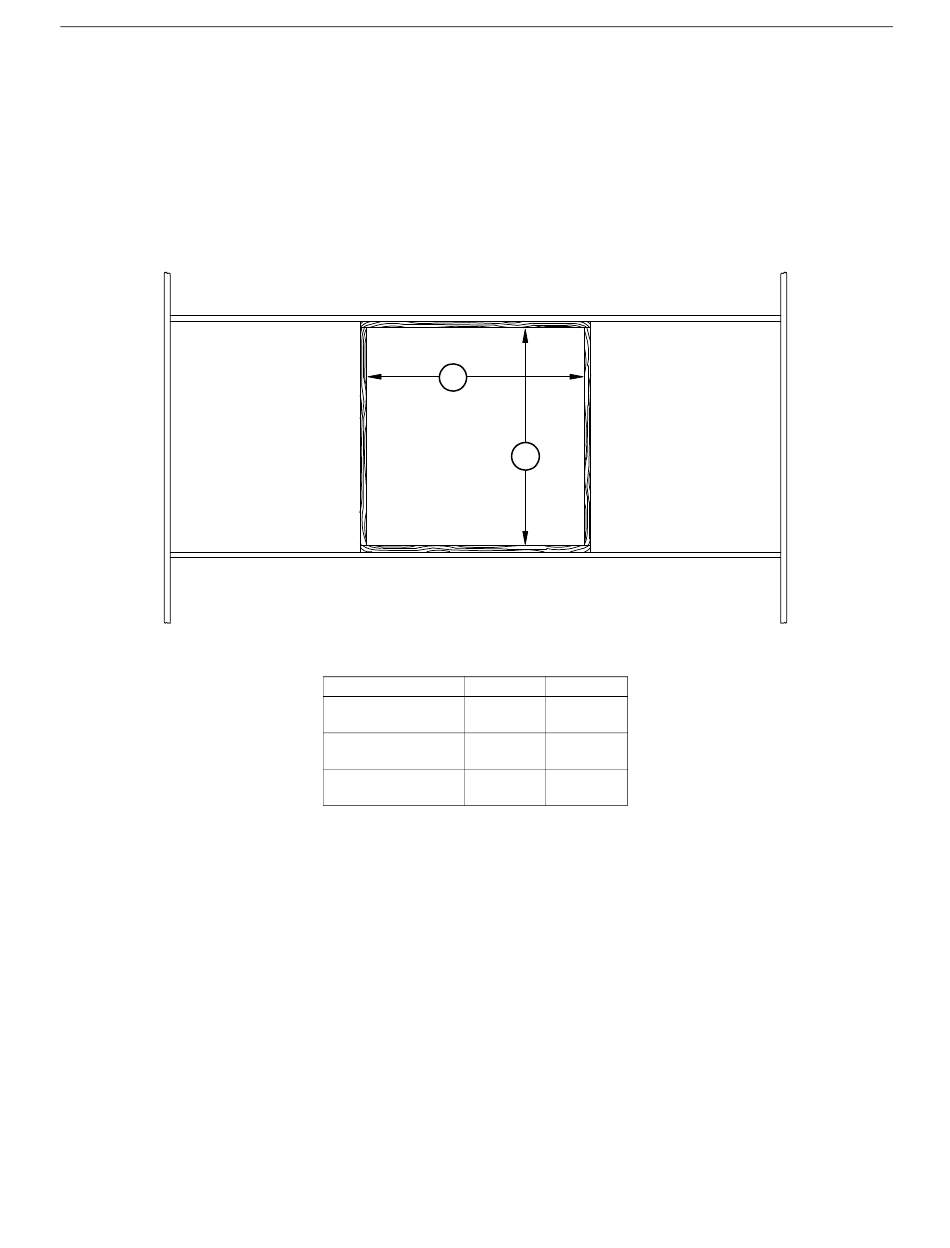

Figure 2. Framing Dimensions
®
Fans, unless otherwise noted. The primary
A
B
A B
17.75 17.75
(45.08 cm) (45.08 cm)
22.25 22.25
(56.52 cm) (56.52 cm)
28.50 28.50
(72.39 cm) (72.39 cm)
MV1517-12 4/98
