14, 18, and 24 Fiberglass Turbo

To mount the fan blade, align blade, bushing and shaft as shown in Figure 8. Use 3/4" socket or closed end wrench

to torque nut on bushing to 175 in. lbs.

IMPORTANT

Do not lubricate or clean bushing.

Part Numbers for Fiberglass Turbo Fans

Fan with Cone and Shutter

Fan with Weather Cover and Shutter 40453-1422 40453-1822 40453-2422 40453-1832 40453-2432

Fan Blade Mounting

Item

Description

Fan Motor Shaft

Align end of Fan Motor Shaft flush with 1/2" Expanding Bushing

Align Fan Blade Hub flush with 1/2" Expanding Bushing as shown

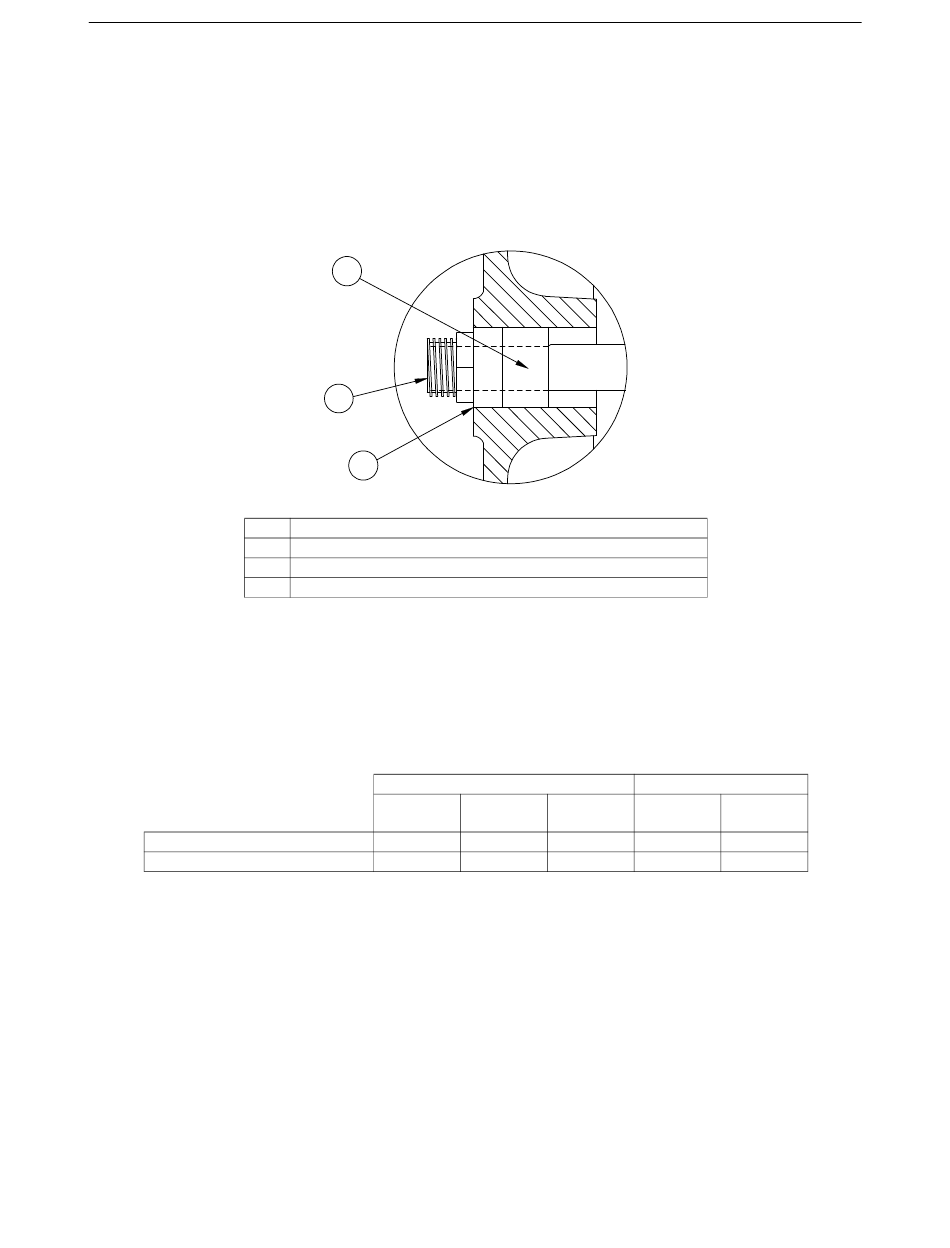

Figure 8. Aligning Blade, Bushing and Shaft

14"

Part No.

40452-1422 40452-1822 40452-2422 40452-1832 40452-2432

MV1517-11 4/98

60 Hz

18"

24"

Part No.

50 Hz

18"

24"

Part No.
