Step 5 - Shutter Installation

If the cord is not routed through the side wall of the fan, cut a 3/8" slot in the top flange of the shutter to route the
Motor Cord through when the Shutter is installed. See Figure 7.
Place the Shutter in the Turbo
Service and maintenance of fans should be done only by a qualified technician.
DISCONNECT POWER PRIOR TO MAINTAINING OR CLEANING THE FAN! The fan may start
automatically causing serious injury or death.
Keep the fan clean for maximum life and best performance.
®
Fan opening and lock it in place by rotating the Shutter Clips. See Figure 7.
2
1
Item Description
1 Shutter
2 3/8" Slot in Shutter Flange
3 Shutter Clip
4 ®
Turbo

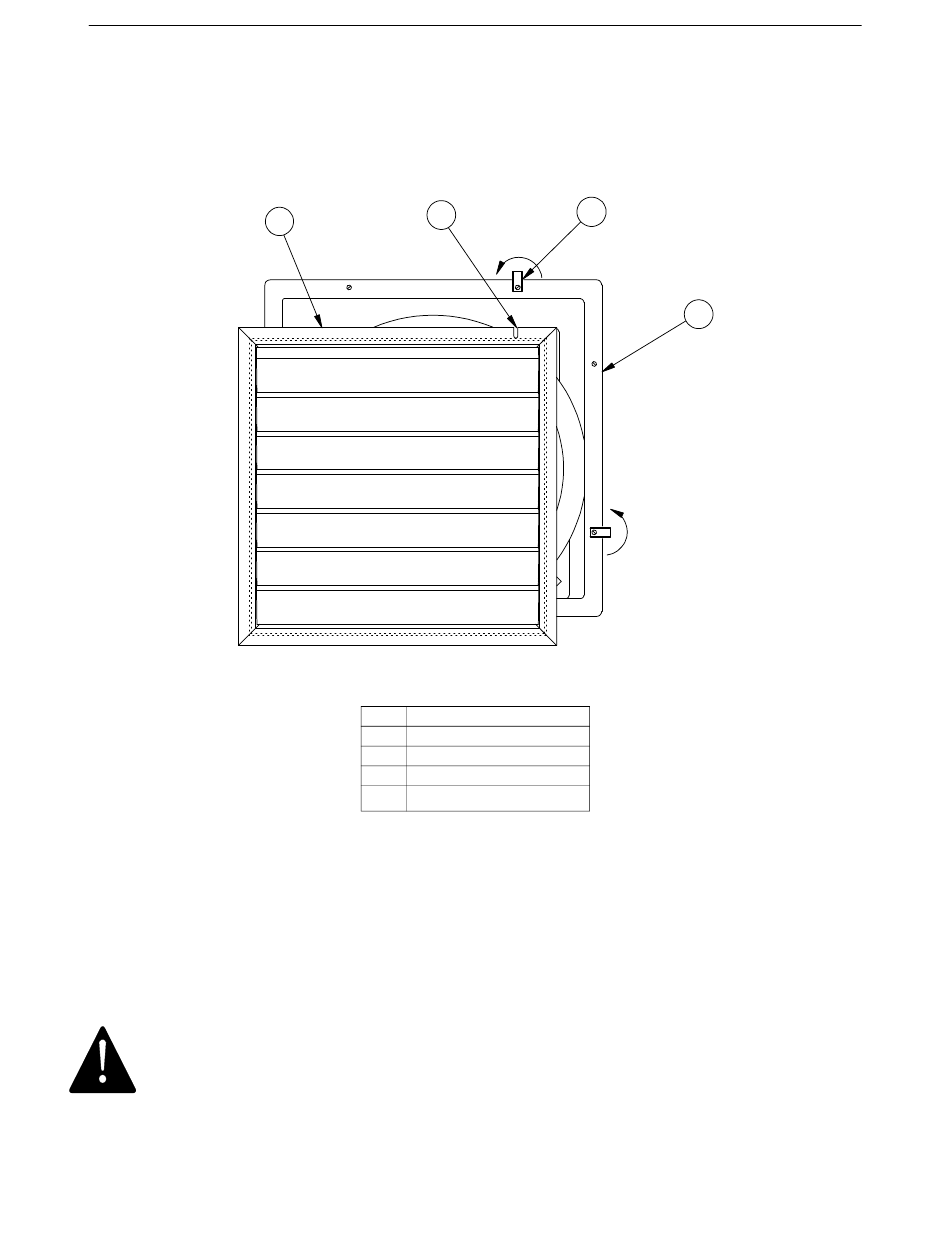

Figure 7. Installing the Shutter

Maintenance:

14, 18, and 24 Fiberglass Turbo
3
MV1517-10 3/98
Fan Housing
®
Fans
4
13
