Step 3 - Installing The Cone And Grill Or Cover And Guard - Chore-Time Turbo Installation & Operator's Instruction Manual

14, 18, and 24 Fiberglass Turbo

Step 3 - Installing the Cone and Grill or Cover and Guard

Installing the Cone and Grill
Cones may be installed to improve the performance of the Turbo
align the holes and assemble using the included 1/4-20 x 3/4 bolts and 1/4-20 flange nuts, as shown in Figure 4.
A Grill must be installed inside the Cone to prevent injury from rotating blades. Assemble as shown.
10
®
Fans
Item Description
1
Turbo
2 Cone
3 Grill

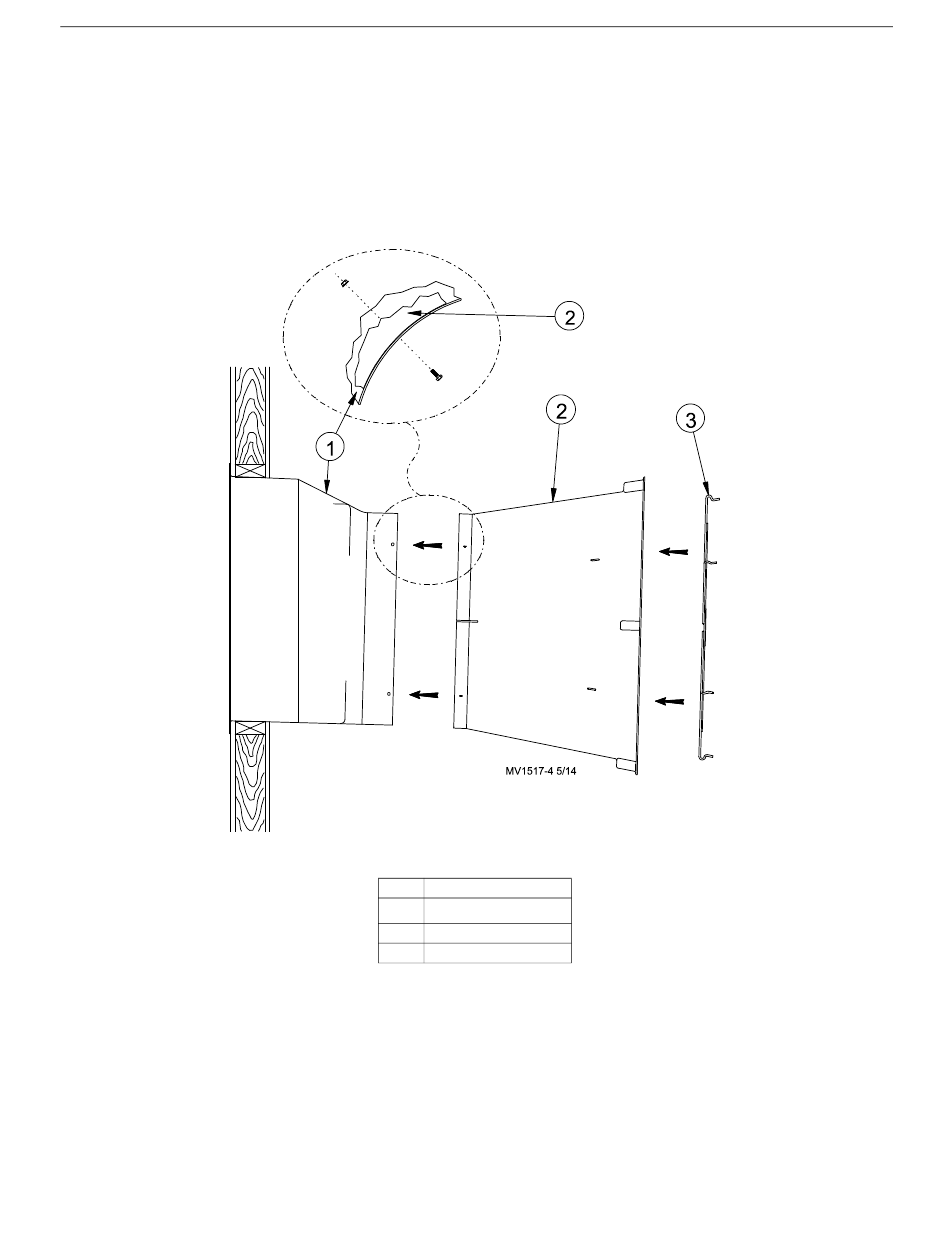

Figure 4. Installing the Cone and Grill
®
Fans. Slide the Cone over the Turbo
®
Fan
®
Fan and
