Step 2 - Install Fan In Opening - Chore-Time Turbo Installation & Operator's Instruction Manual

Step 2 - Install Fan in Opening

The Hardware Kit, supplied, includes (8) 1/4 x 1-3/4 Lag Screws, (4) Shutter Clips, and (4) Nylon Washers to secure
the fan to the framed opening. Install as shown in Figure 3.
The Shroud Flange should be secured square in the opening.
2
1
1
3
Item Description
1 1/4 x 1-3/4 Lag Screw 40938
2 Shutter Clip
3 Nylon Washer
4 Turbo Fan
5 Side Wall Framing
®

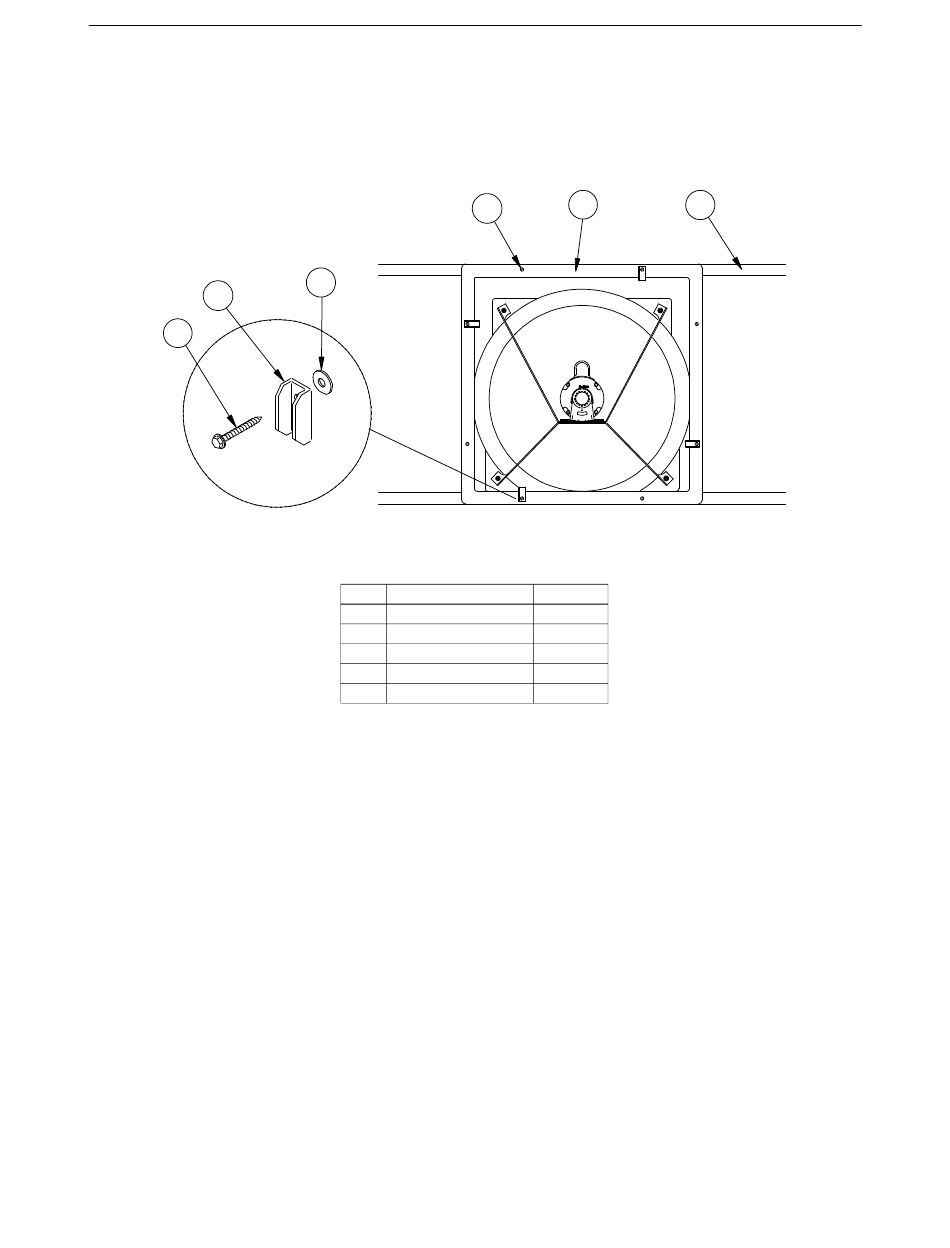

Figure 3. Installing Turbo
14, 18, and 24 Fiberglass Turbo
4
MV1517-3 3/98
Part No.
36729
4856
Fan into Framed Wall
®
Fans
5
9
