MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server

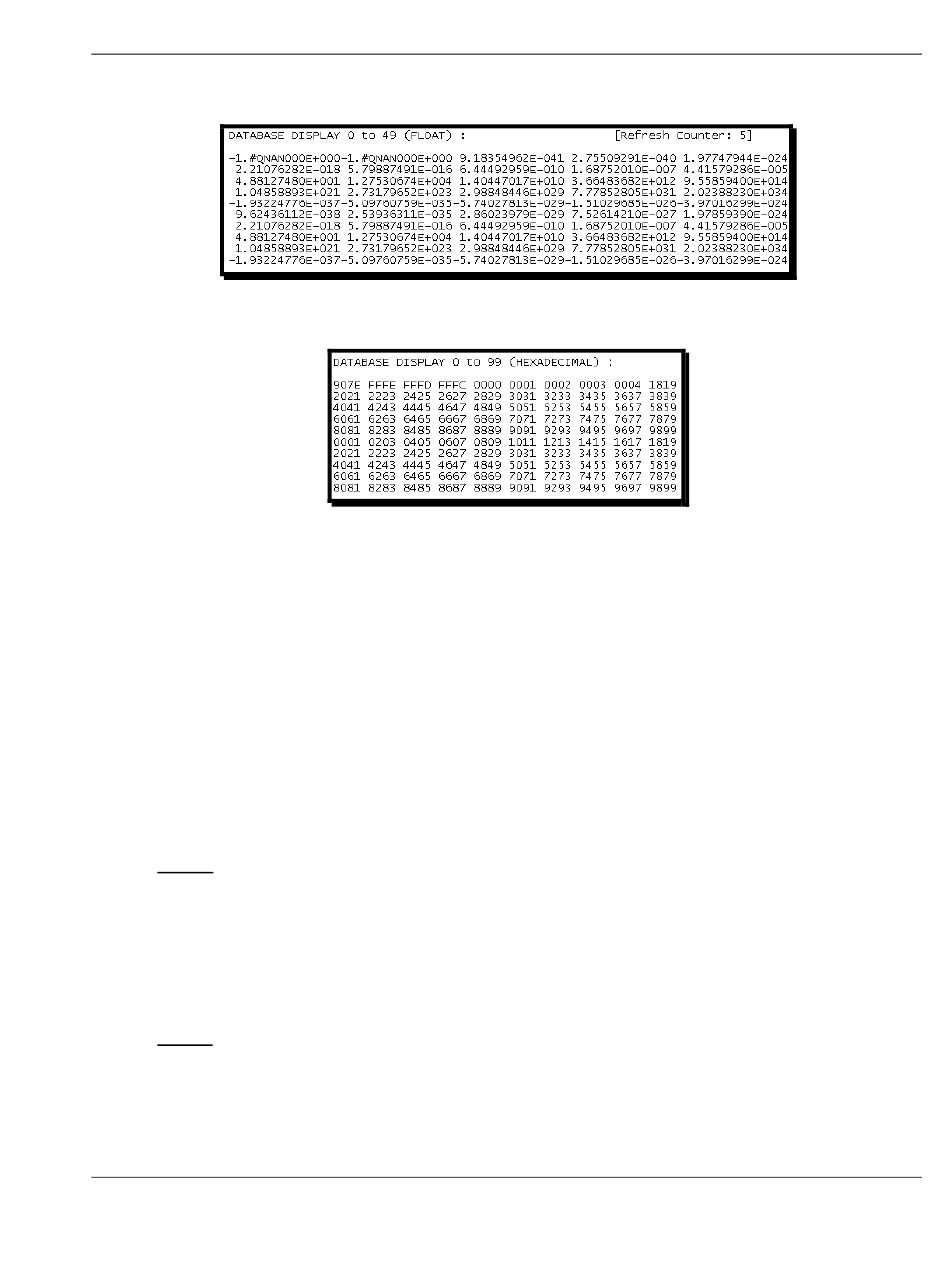

Float
Hexadecimal
Use the scroll bar on the right edge of the window to view each page (100 words)
of data.

4.4.5 Monitoring MNETC Server Information

Use the MNETC SERVER menu to view the configuration and status information
for the MNETC server.
Note: To take advantage of the new features described above, your MVI56E-
MNETC/MNETCXT module needs to have firmware version 3.01 or higher, and
your MVI56E-MNETC/MNETCXT Add-On Instruction needs to be version 1.8 or
higher. Earlier versions have no server capabilities and support only up to 5000
user database registers.
Config
Use the Configuration menu to view configuration settings for MNET servers
connected to the MNET Client.
The information on this menu corresponds with the configuration information in
the MNET Servers settings in ProSoft Configuration Builder MNET Servers (page
39) dialog box. See MNET Servers (page 39).
Status
Use the Status menu to view the status of each MNET server connected to the
MNET Client 0. During normal operation, the number of requests and responses
should increment, while the number of errors should not change.
ProSoft Technology, Inc.
September 20, 2018
Diagnostics and Troubleshooting
User Manual
Page 91 of 172
