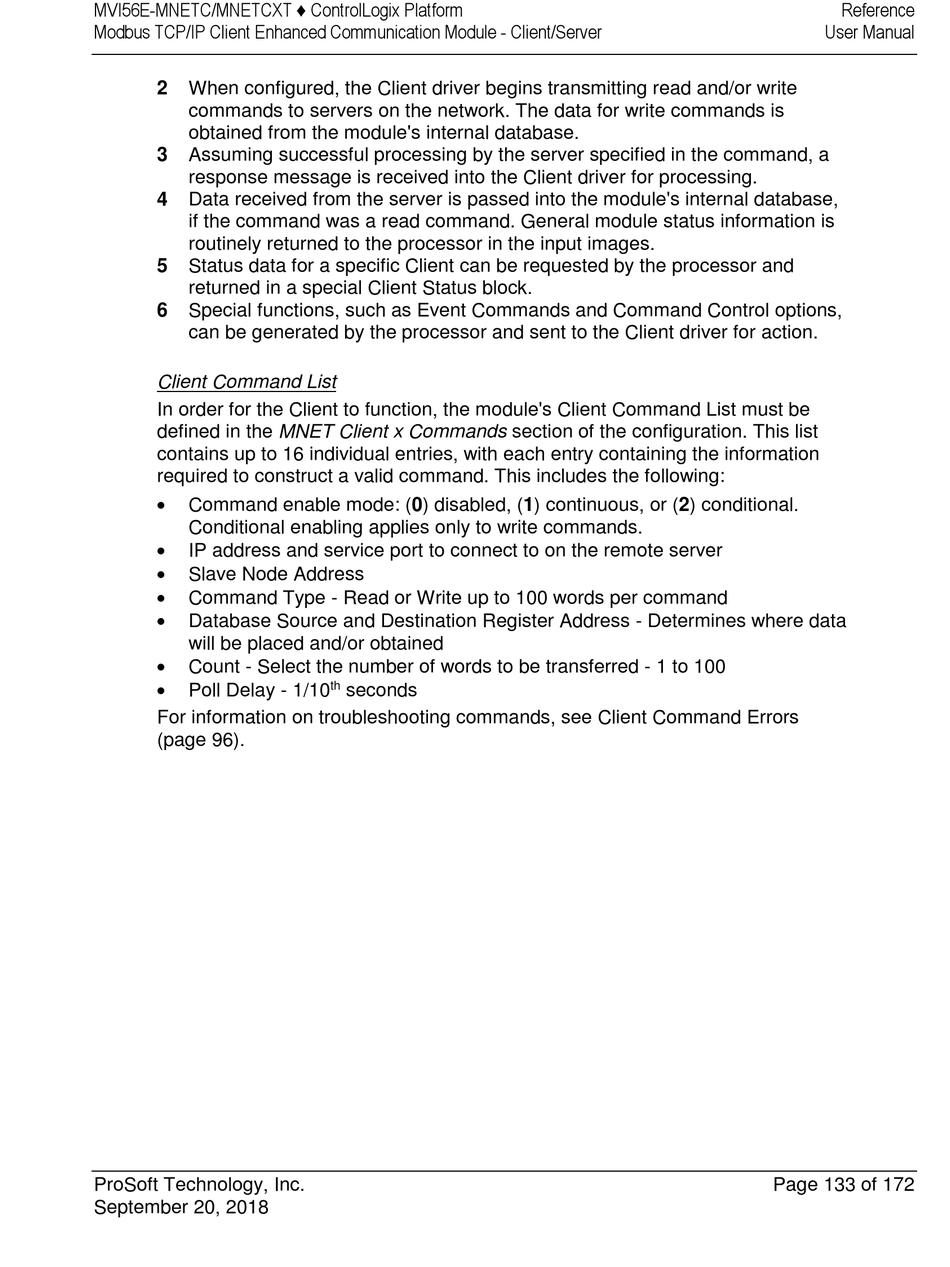

MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
2 When configured, the Client driver begins transmitting read and/or write
commands to servers on the network. The data for write commands is
obtained from the module's internal database.
3 Assuming successful processing by the server specified in the command, a
response message is received into the Client driver for processing.
4 Data received from the server is passed into the module's internal database,
if the command was a read command. General module status information is
routinely returned to the processor in the input images.
5 Status data for a specific Client can be requested by the processor and
returned in a special Client Status block.
6 Special functions, such as Event Commands and Command Control options,
can be generated by the processor and sent to the Client driver for action.
Client Command List
In order for the Client to function, the module's Client Command List must be
defined in the MNET Client x Commands section of the configuration. This list
contains up to 16 individual entries, with each entry containing the information
required to construct a valid command. This includes the following:

Command enable mode: (0) disabled, (1) continuous, or (2) conditional.
Conditional enabling applies only to write commands.

IP address and service port to connect to on the remote server

Slave Node Address

Command Type - Read or Write up to 100 words per command

Database Source and Destination Register Address - Determines where data
will be placed and/or obtained

Count - Select the number of words to be transferred - 1 to 100

Poll Delay - 1/10
For information on troubleshooting commands, see Client Command Errors
(page 96).
ProSoft Technology, Inc.
September 20, 2018
th
seconds
Reference
User Manual
Page 133 of 172
