MVI56E-MNETC/MNETCXT Configuration
User Manual

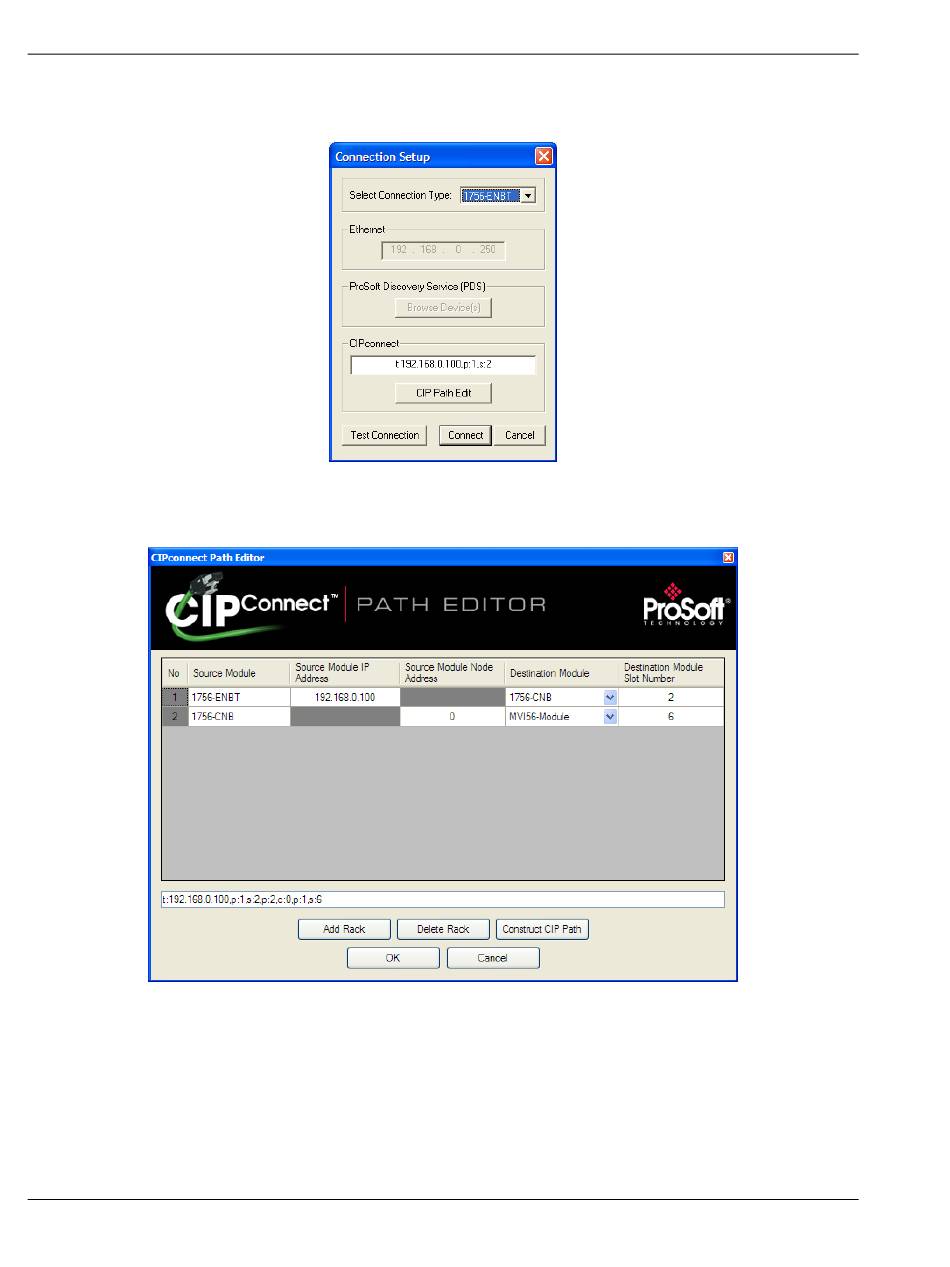

3 In the Select Connection Type dropdown list, choose 1756-ENBT. The
default path appears in the text box, as shown in the following illustration.
4 Configure the path as shown in the following illustration, and click
C
ONSTRUCT
5 Click OK to close the CIPconnect Path Editor and return to the Connection
Setup dialog box.
Page 62 of 172
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
CIP P to build the path in text format.
ATH
