Using Controller Tags
User Manual

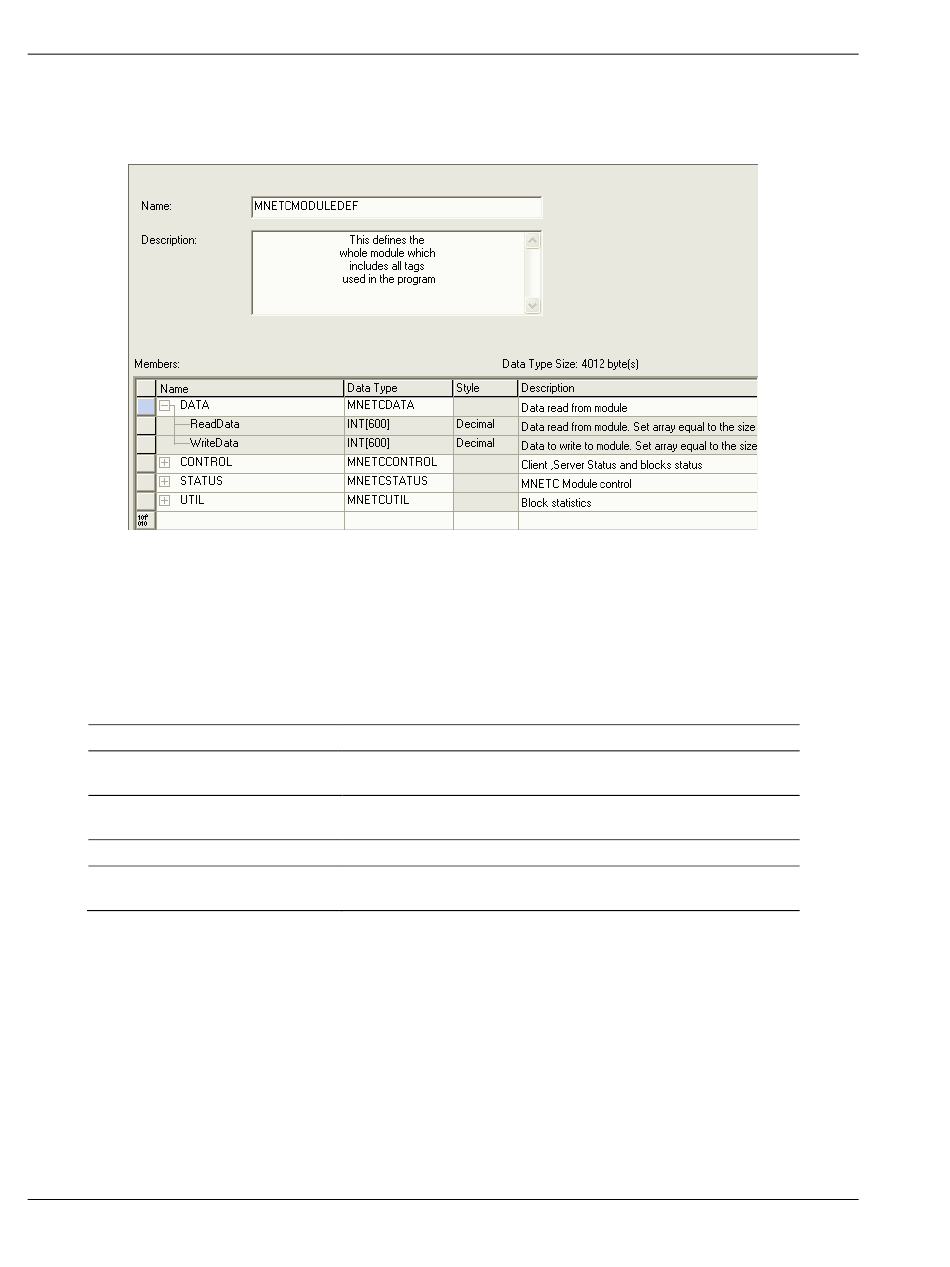

For example, if you expand MNETC.DATA, you will see that it contains two
UDTs, ReadData and WriteData. Both of these are 600-element integer arrays
by default.
Notice that these UDTs are the data types used to declare the
MNETC.DATA.ReadData and MNETC.DATA.WriteData controller tag arrays.
Each UDT is commented in the Description column.
3.3

Controller Tag Overview

This and the following sections describe the MNETC controller tags in detail.
Controller Tag

MNETC.DATA

MNETC.CONTROL
MNETC.STATUS
MNETC.UTIL
3.3.1 MNETC.DATA
The controller tags in MNETC.DATA hold data to be transferred between the
processor and the MVI56E-MNETC/MNETCXT module. This read and write data
is transferred between the processor and module as "pages," or blocks, of data
up to 200 words long.
The data types for the MNETC.DATA.ReadData and MNETC.DATA.WriteData
controller tag arrays are integer arrays containing variable numbers of elements.
Page 74 of 172
MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Description
MNET input and output data transferred between the processor
and the module
Governs the data movement between the PLC rack and the
module
Status information
Block statistics and generic tags used for internal ladder
processing (DO NOT MODIFY)
