Select Priority Read Block = 0

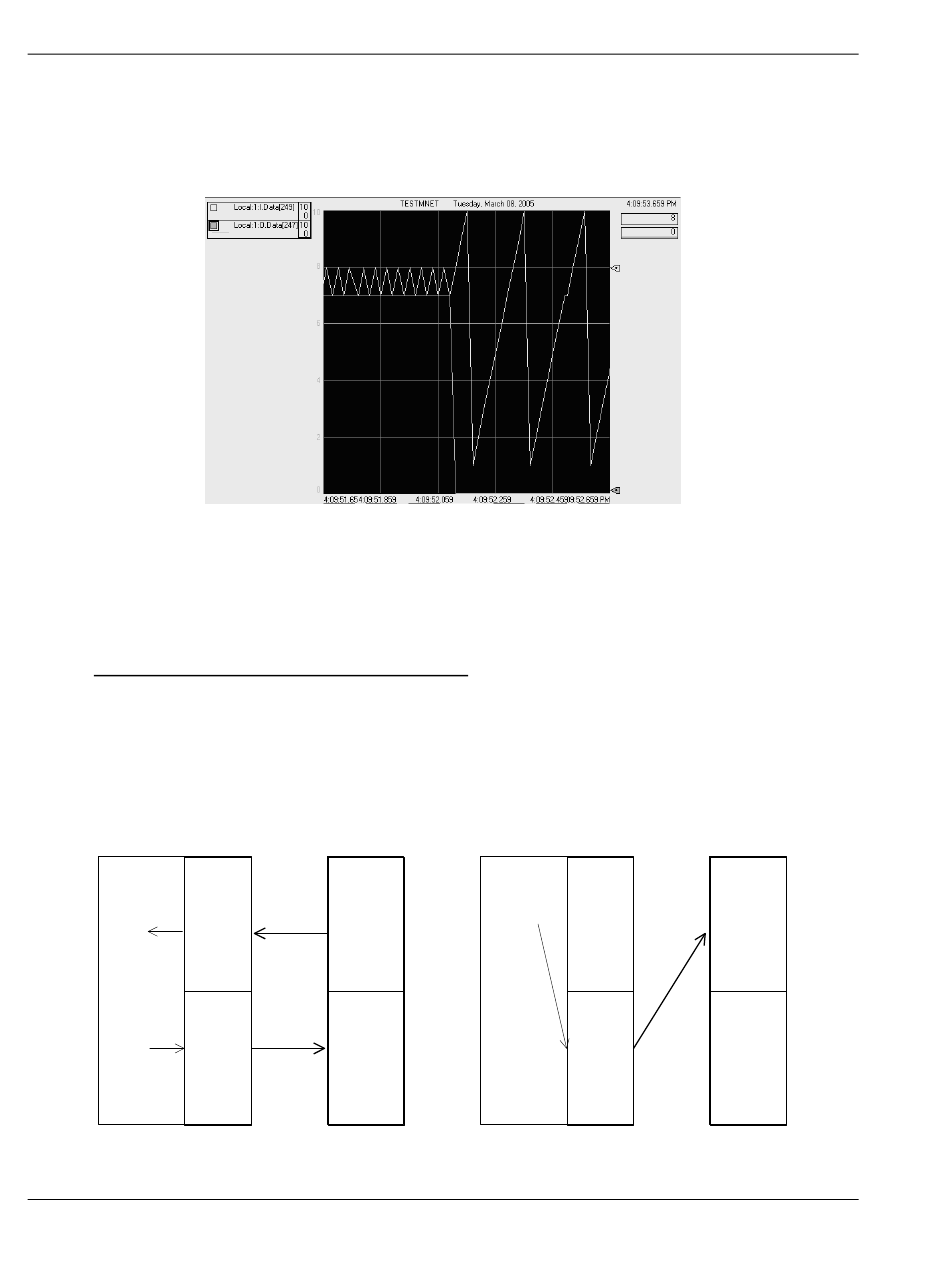

After the ladder logic changes the value of Local:1:O.Data[247] from 5 to 0, then
the Local:1:I.Data[249] value is updated as before, by returning all blocks 1
through 10 in a repeating sequence.

5.2.3 Special Function Blocks

Special function blocks are optional blocks used to request special tasks from the
module.
Initialize Output Data Blocks (1000 to 1049)
Use the Initialize Output Data parameter in the configuration to bring the module
to a known state after a restart operation. If the Initialize Output Data parameter
is enabled, when the module performs a restart operation, it will request blocks of
output data from the ReadData array in the processor to initialize the Read Data
area of the module's internal database.
Normal Data transfer
CLX Processor
Read
Local:X:I
Tags
Write
Local:X:O
Tags
Page 110 of 172
MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
MNET Module
Read
Modbus
Tags
Output
Write
Modbus
Tags
Input
Initialize Output Data transfer
CLX Processor
Local:X:I
Local:X:O
ProSoft Technology, Inc.
September 20, 2018
MNET Module
Modbus
Output
Modbus
Input
