MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
6

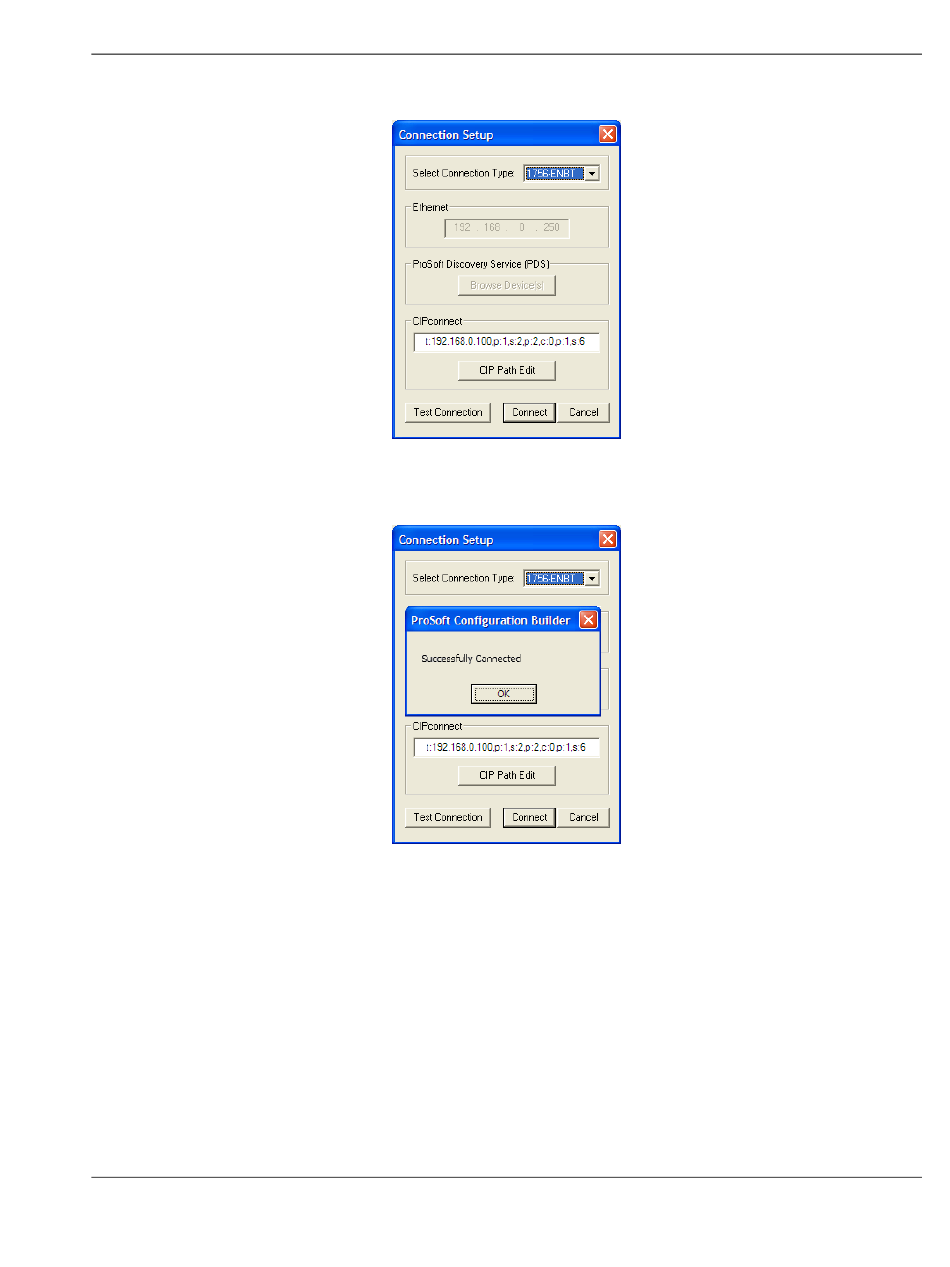

Check the new path in the Connection Setup dialog box.
7
Click T
EST
following message should be displayed upon success.
8
Click OK to close the Test Connection pop-up and then click C
close the Connection Set up dialog box. The Diagnostics menu is now
connected through CIPconnect.
ProSoft Technology, Inc.
September 20, 2018
C
to verify that the physical path is available. The
ONNECTION
MVI56E-MNETC/MNETCXT Configuration
to
ONNECT
Page 63 of 172
User Manual
