ProSoft Technology MVI56E-MNETC User Manual page 66

MVI56E-MNETC/MNETCXT Configuration
User Manual

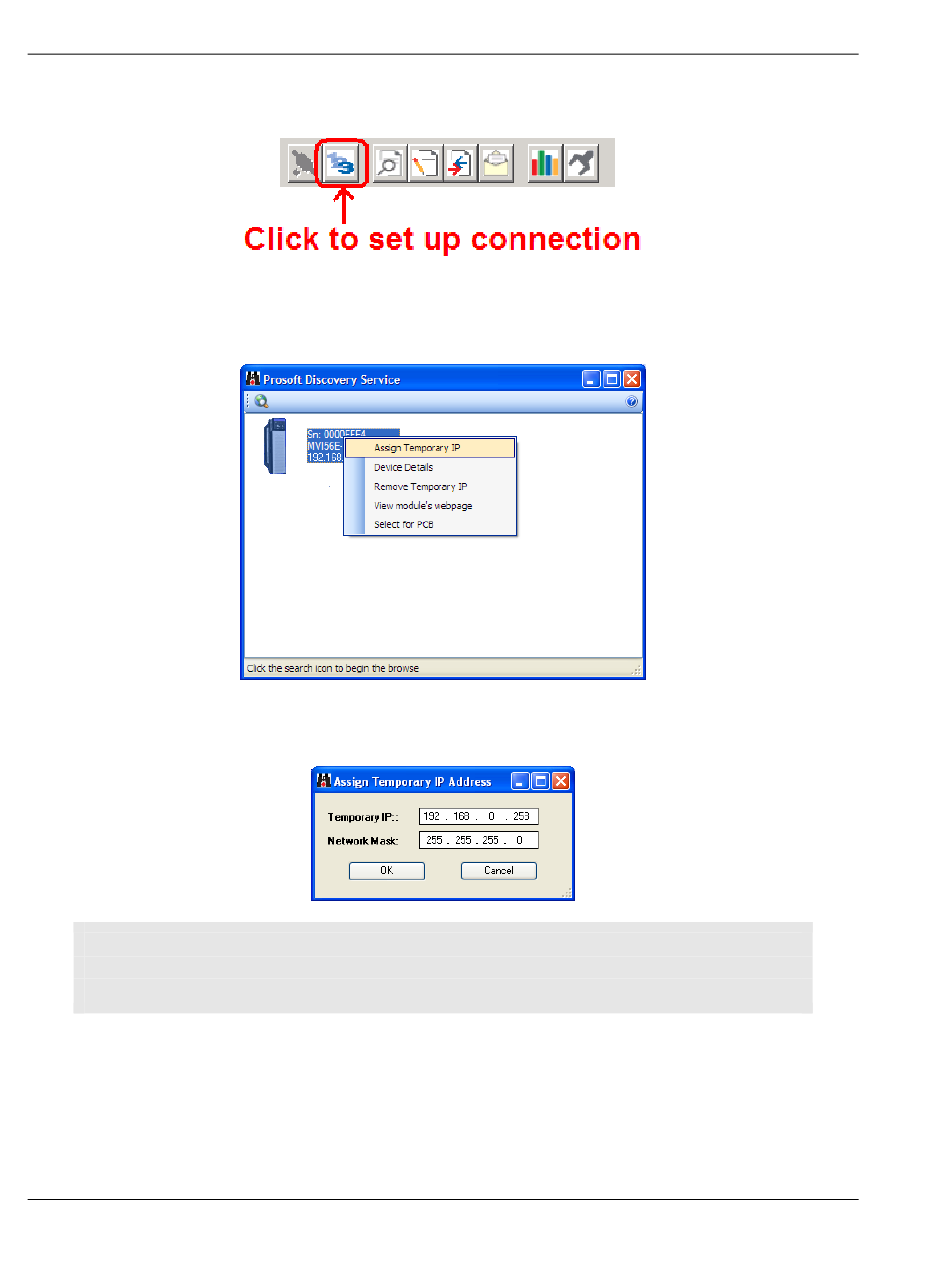

3 In the Diagnostics window, click the S
4 In the Connection Setup dialog box, click the B
open the ProSoft Discovery Service. Select the module, then right-click and
choose A
SSIGN
The module's default IP address is 192.168.0.250. Choose an unused IP
5
within your subnet, and then click OK.
Important: The temporary IP address is only valid until the next time the module is initialized. For
information on how to set the module's permanent IP address, see Ethernet Configuration (page
53).
Page 66 of 172
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
T IP.
EMPORARY
MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
U C button.
ET P ONNECTION
D
ROWSE EVICE
( ) button to
S
ProSoft Technology, Inc.
September 20, 2018
