If you have used other Windows configuration tools before, you will find the
screen layout familiar. PCB's window consists of a tree view on the left, and an
information pane and a configuration pane on the right side of the window. When
you first start PCB, the tree view consists of folders for Default Project and
Default Location, with a Default Module in the Default Location folder. The

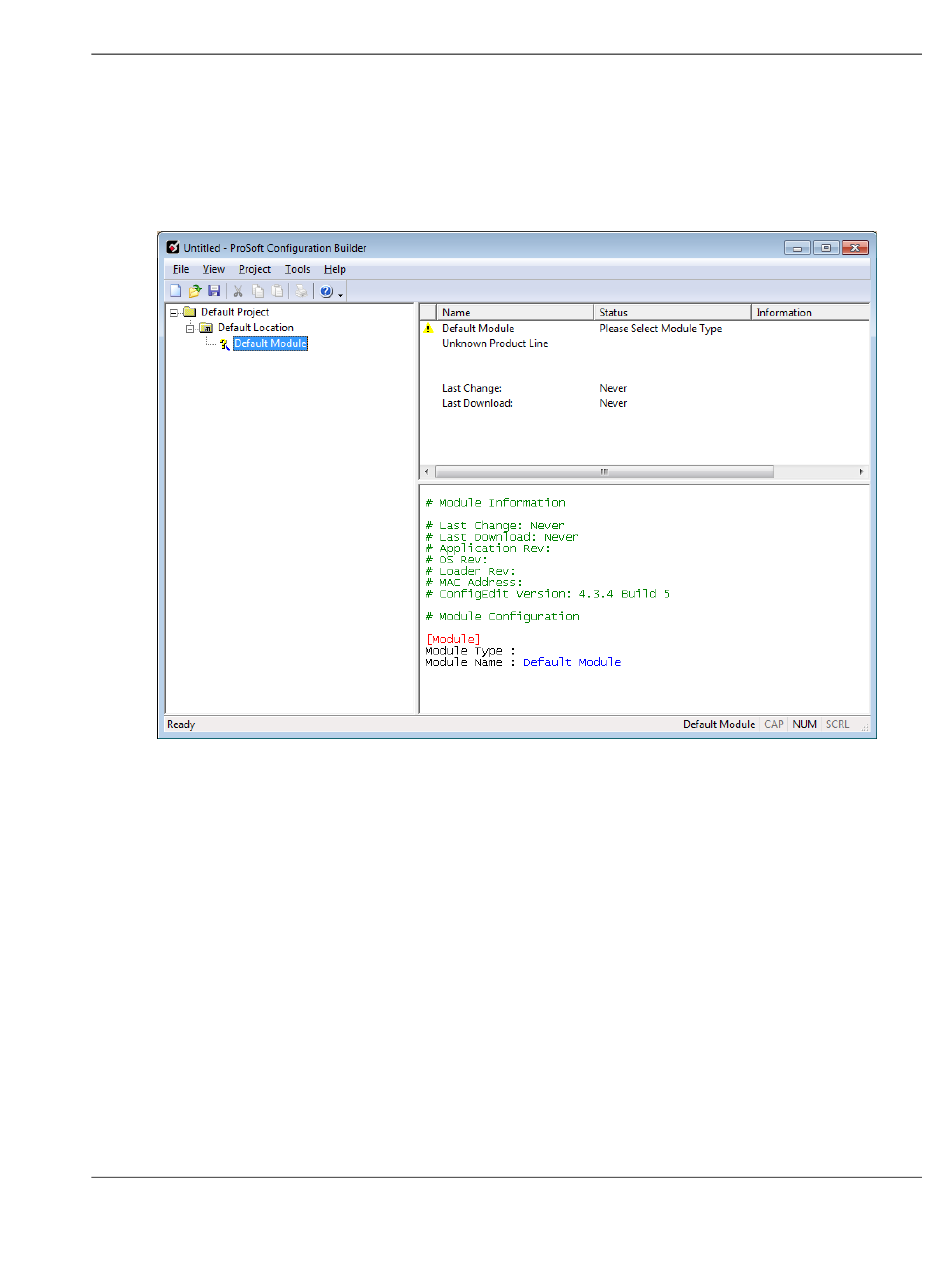

following illustration shows the PCB window with a new project.
Your first task is to add the MVI56E-MNETC/MNETCXT module to the project.
