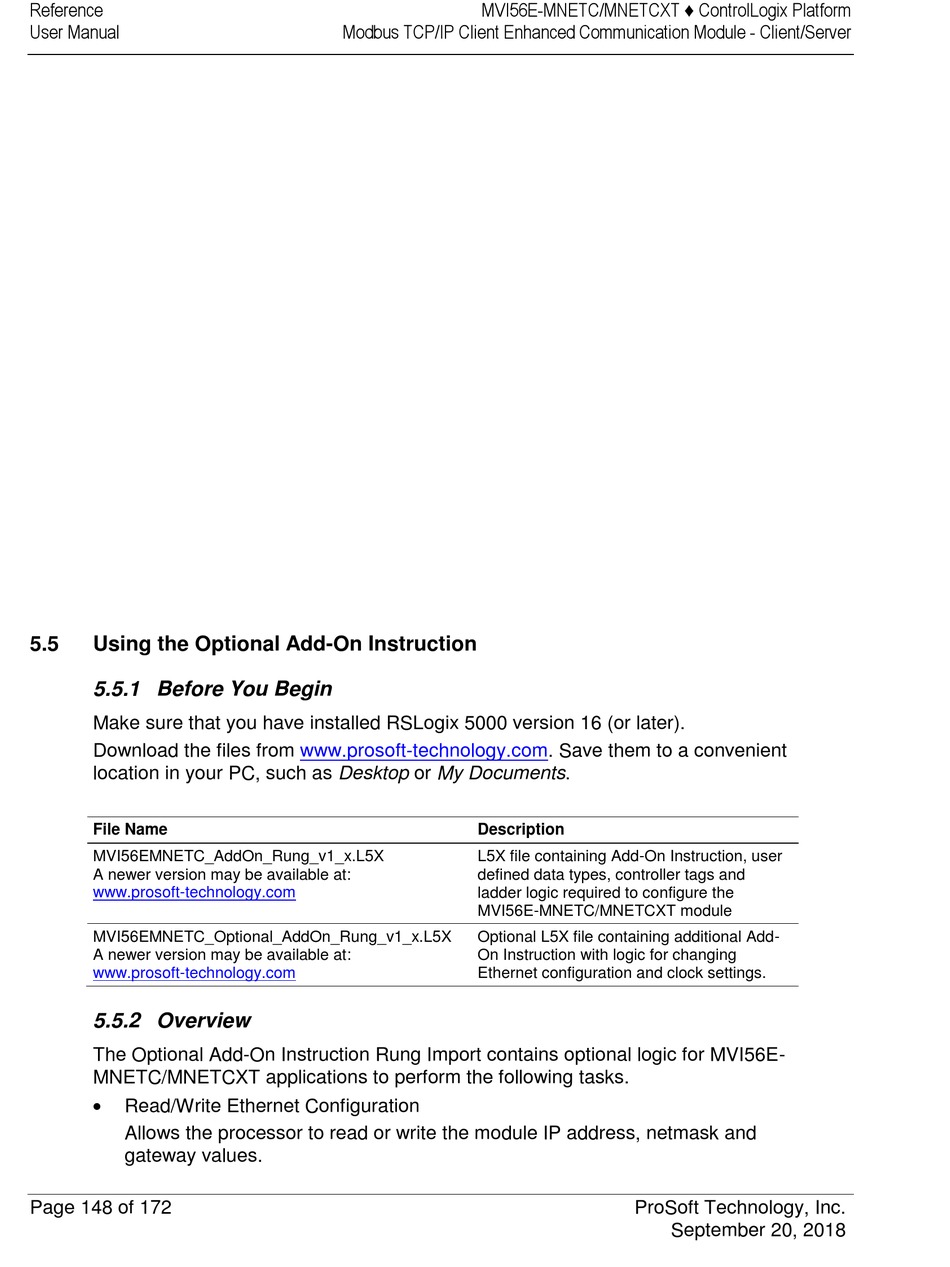

Using the Optional Add-On Instruction

5.5.1 Before You Begin

Make sure that you have installed RSLogix 5000 version 16 (or later).
Download the files from www.prosoft-technology.com. Save them to a convenient
location in your PC, such as Desktop or My Documents.
File Name
MVI56EMNETC_AddOn_Rung_v1_x.L5X
A newer version may be available at:
www.prosoft-technology.com
MVI56EMNETC_Optional_AddOn_Rung_v1_x.L5X
A newer version may be available at:
www.prosoft-technology.com

5.5.2 Overview

The Optional Add-On Instruction Rung Import contains optional logic for MVI56E-
MNETC/MNETCXT applications to perform the following tasks.

Read/Write Ethernet Configuration
Allows the processor to read or write the module IP address, netmask and
gateway values.
Page 148 of 172
MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Description
L5X file containing Add-On Instruction, user
defined data types, controller tags and
ladder logic required to configure the
MVI56E-MNETC/MNETCXT module
Optional L5X file containing additional Add-
On Instruction with logic for changing
Ethernet configuration and clock settings.
