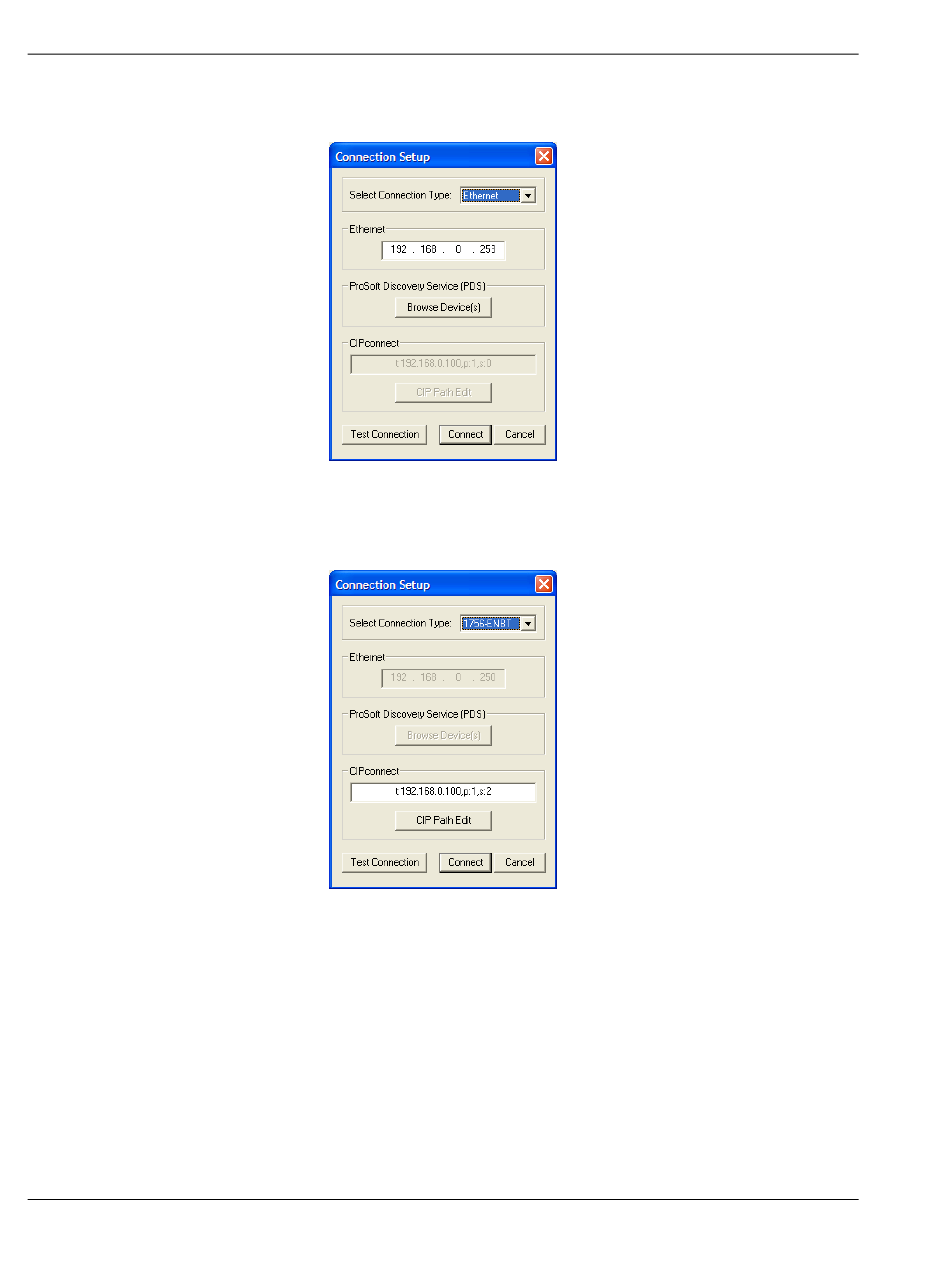

4 In the Connection Setup dialog box, click the T
verify that the module is accessible with the current settings.
You can also use CIPconnect
ENBT card. Refer to Using CIPconnect to Connect to the Module (page 54)
for information on how to construct a CIP path.
5 If the Test Connection is successful, click C
Page 86 of 172
MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
Modbus TCP/IP Client Enhanced Communication Module - Client/Server
®
to connect to the module through a 1756-
ONNECT
C button to
EST ONNECTION
.
