5 If you are using the module in a different slot (or remote rack), edit the
connection input and output variables that define the path to the module. Edit
the text in the F
less). For example, if your module is located in slot 3, change Local:1:I in the
above picture to Local:3:I. Do the same for Local:1:O. If your module is
located in Slot 1 of the local rack, this step is not required.
6 Click OK to confirm the import.

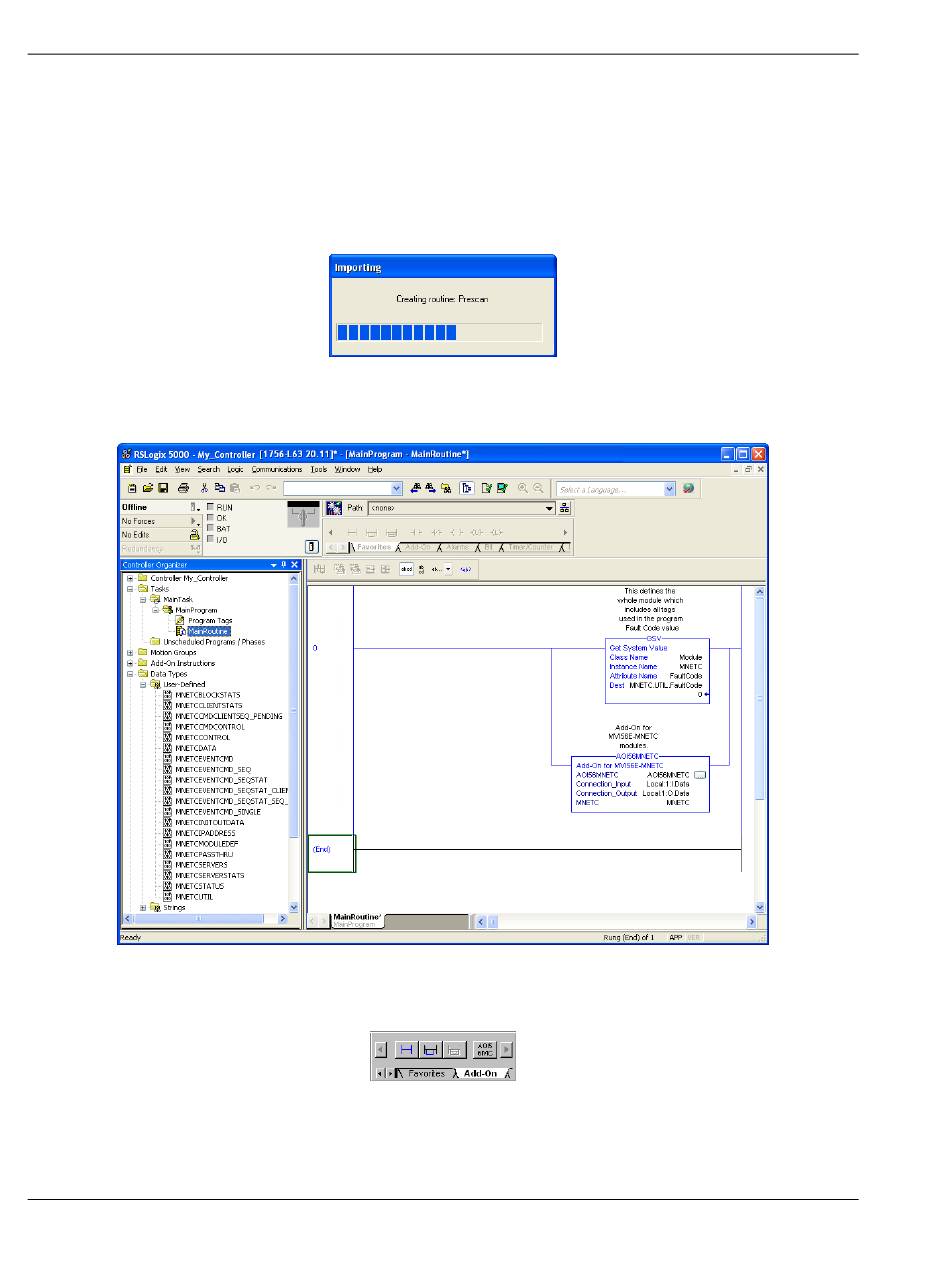

When the import is completed, the new rung with the Add-On Instruction
appears as shown in the following illustration.
The procedure also imports the new User Defined Data Types, Controller
Tags, and the Add-On instruction for your project.
7 Save the application and then download the sample ladder logic to the
processor.
