57" Endura
Fan

Installation

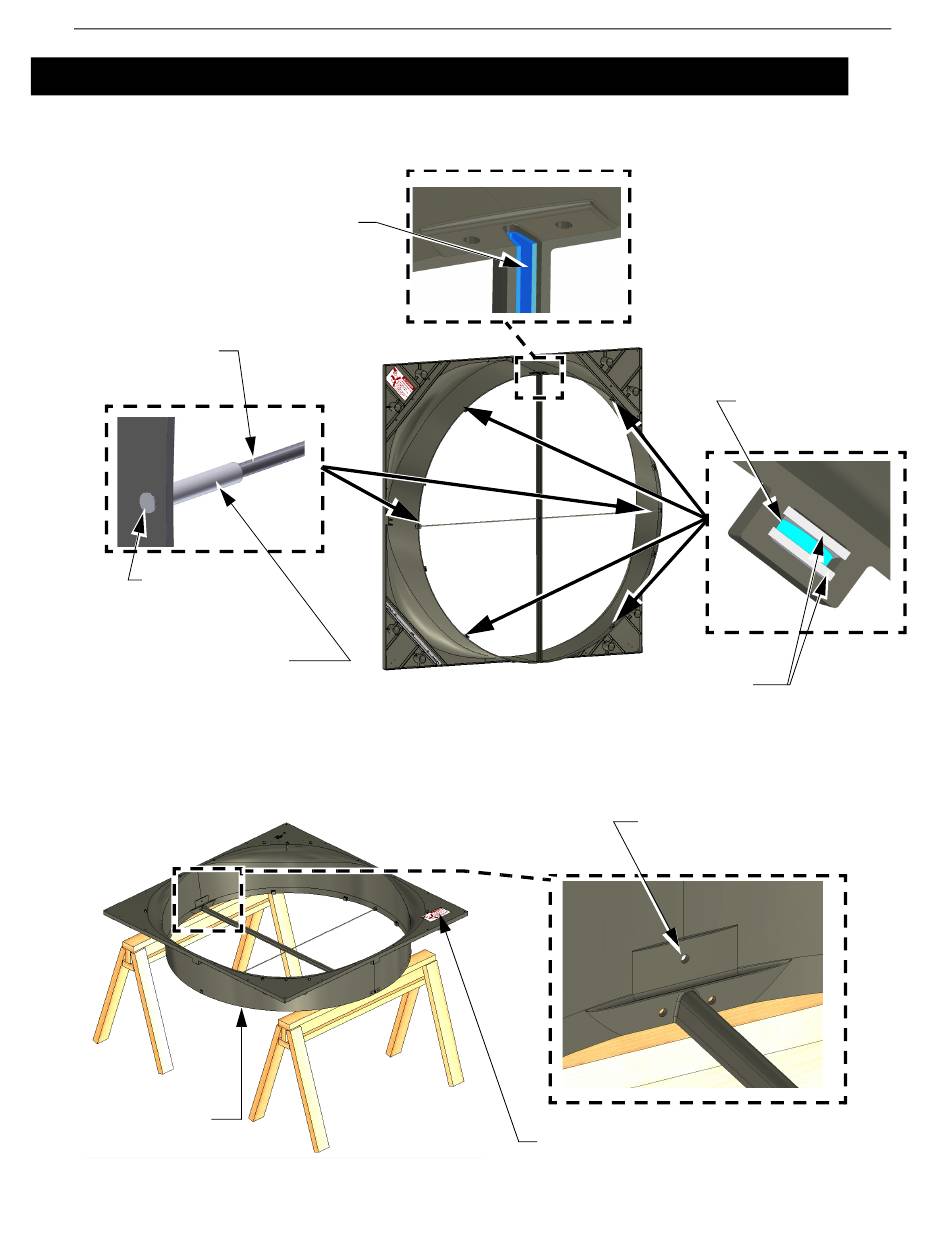

Inspecting the Shroud (For assembled versions skip to page 12)
Inspect the Shroud assembly for hardware as received.
(53626) Center V-Post
(53398) Cross Rod
(7791-3)
Press Stud
(53896) Rod Coupler

Fan Shroud Assembly (Unassembled version)

Rest Fan Shroud on Saw Horses for ease of Assembly
Top of Fan Shroud
Exhaust Side Down
MV2406P
(53026) Magnet Side Plate
Third Hole designates the
Top of Shroud.
Danger Decal is located in Bottom
Right corner of the Shroud.
Installation
(48427) Magnet
7
