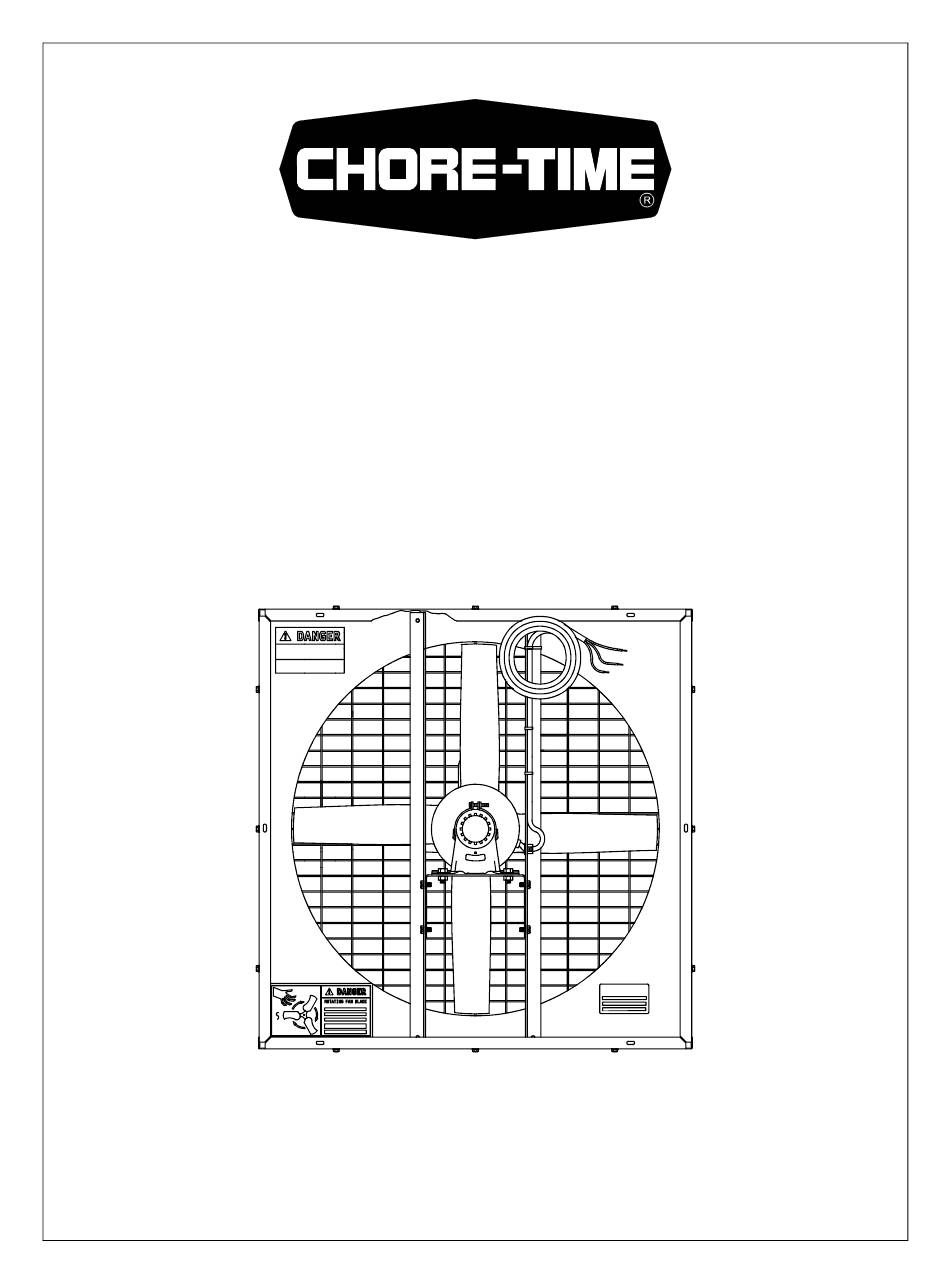

- Page 1 24" Crated Galvanized Crated Fan Installation & Operator’s Instruction Manual MV903-10 10/99 January 2023 MV903E...
-
Page 2: Chore-Time Warranty
(“Warranty”). If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B. the factory of manufacture or (b) replace the Product or Component Part free of charge, F.O.B. the factory of manufacture. This Warranty is not transferable, and applies only to the original purchaser of the Product. -
Page 3: Table Of Contents
Chore-Time Warranty ........ -
Page 4: Support Information
CE is required only on equipment sold in Europe. Chore-Time Equipment recognizes the CE Mark and pursues compliance in all applicable products. Fill in the CE-Mark serial number in the blank space provided for future reference. -
Page 5: About This Manual
24" Crated and Galvanized Crated Fan About This Manual About This Manual The intent of this manual is to help you in two ways. One is to follow step-by-step in the order of assembly of your product. The other way is for easy reference if you have questions in a particular area. -
Page 6: Follow Safety Instructions

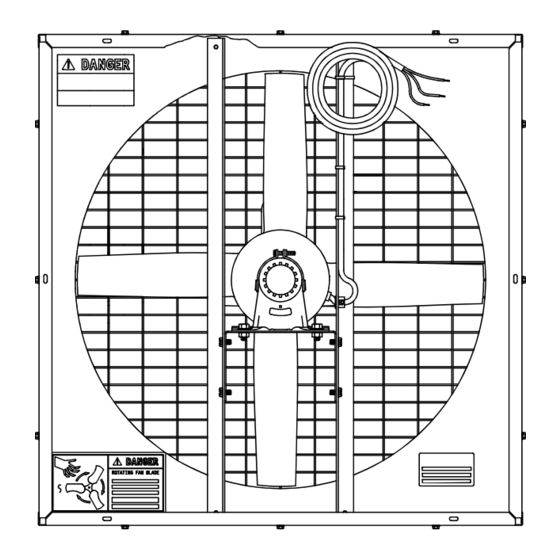

Safety Information 24" Crated and Galvanized Crated Fan Safety Information Follow Safety Instructions Carefully read all safety messages in this manual and on your equipment safety signs. Follow recommended precautions and safe operating practices. Keep safety signs in good condition. Replace missing or damaged safety signs. Decal Descriptions This diagram shows the proper location of the safety decals as shipped from the factory. -
Page 7: Technical Information
Weight (wood crate) 62 lbs. (28.1 kg) Important ! Chore-Time recommends that a good alarm system should be installed in confinement buildings to warn of power failure and high temperature. Chore-Time also recommends that an alternate power source be available for confinement buildings in case of power failure. -
Page 8: Fan Installation
Fan Installation 24" Crated and Galvanized Crated Fan Fan Installation The installation information is the same for 24" Crated Fan and the 24" Galvanized Crated Fan, unless otherwise noted. The Fan can be mounted in either of two ways: 1.Fan unit mounted in the building side wall, with or without the optional Shutter mounted on the outside. -
Page 9: Ceiling Mount Installations
24" Crated and Galvanized Crated Fan Fan Installation Ceiling Mount Installations: Drill (2) 3/8" (10 mm) holes into the top of the fan assembly, as shown in Figure 2. Holes provided in the Fan Shroud should be used to determine hole locations in the Fan Crate. -
Page 10: Parts List
24119 24119 *NOTE: 27495 Galvanized Crated Fan Assembly is shown. 14843 (wood) Crated Fan Assembly is similar except that the shroud is enclosed by a plywood crate instead of galvanized steel. **The Suspension Kit and Shutter are optional and must be ordered separately. - Page 11 24" Crated and Galvanized Crated Fan Maintenance Maintenance IMPORTANT! Disconnect Power Prior To Maintaining Or Cleaning The Fan. The fan may start automatically causing serious injury or death. • Service and repair of fans should be done only by a qualified technician. •Minimize contact of moisture or corrosive chemicals to the surfaces of the fan components to maximize fan life.
- Page 12 Revisions to this Manual Page No. Description of Change Changed 4146 to 40277 36121 Contact your nearby Chore-Time distributor or representative for additional parts and information. CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 Email: choretime@choretime.com...
