Installation

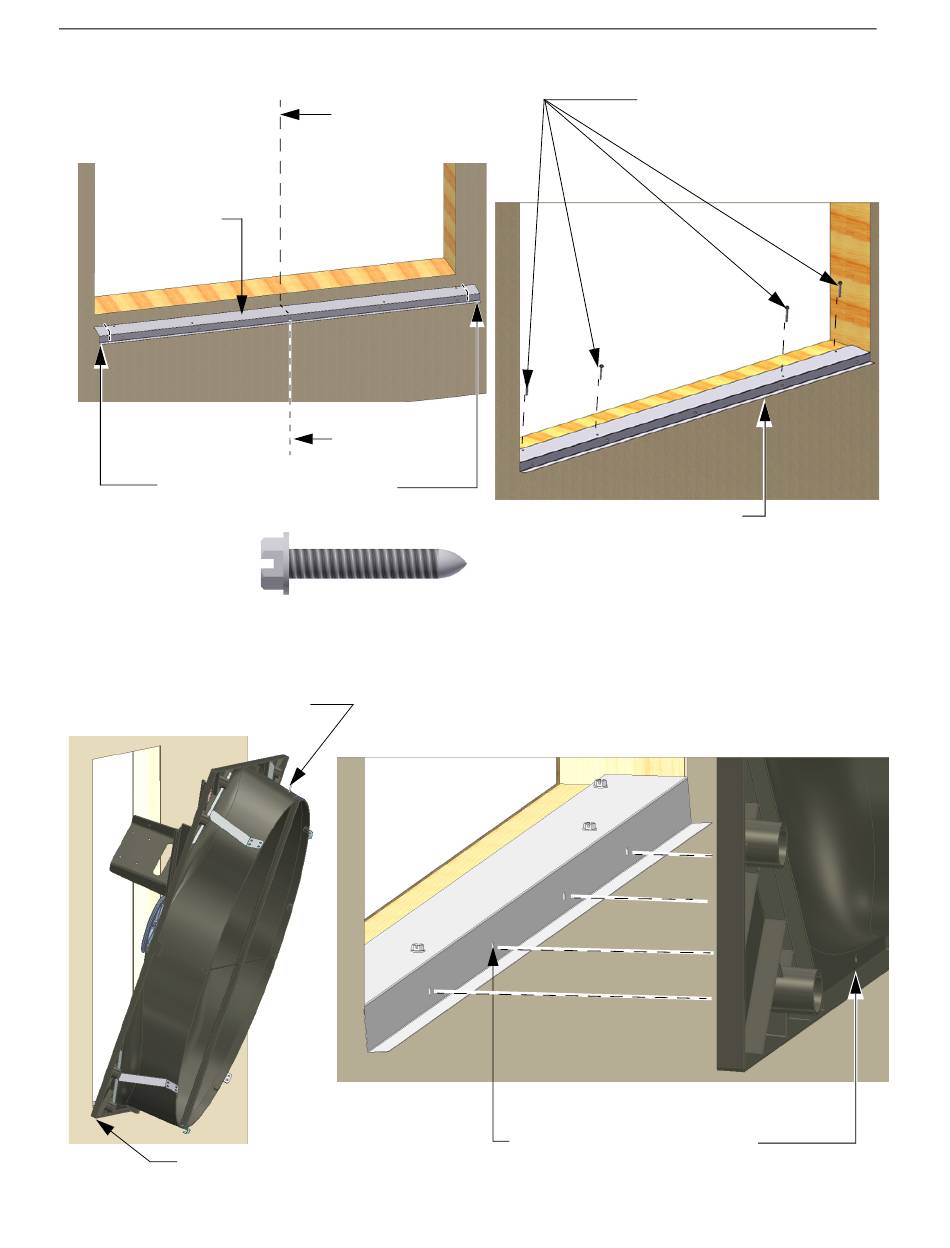

Bottom Shelf Installation
(53338)
Bottom
Shelf
Outside of House
If the Shelf is too long Trim
equal amounts from both ends.
Attaching the Fan to the Wall
Eyebolt indicates the Top of
Set Fan Shroud on the
Bottom Shelf.
12
Center of Rough
Opening
Center of Bottom
Shelf
(41561) 1/4 x 1-1/2 Lag Screw
the Fan.
(41561)
SS 1/4-10 x 1-1/2" Lag Screws
Tighten until Snug only. Do not
Deform the Bottom Shelf.)
This Flange must not be
bowed after installation!
Line up the four Holes in the
Shroud with the Holes in the
Bottom Shelf.
®
57" Endura
Fan
MV2406P
