Installation
57" Endura
Fan

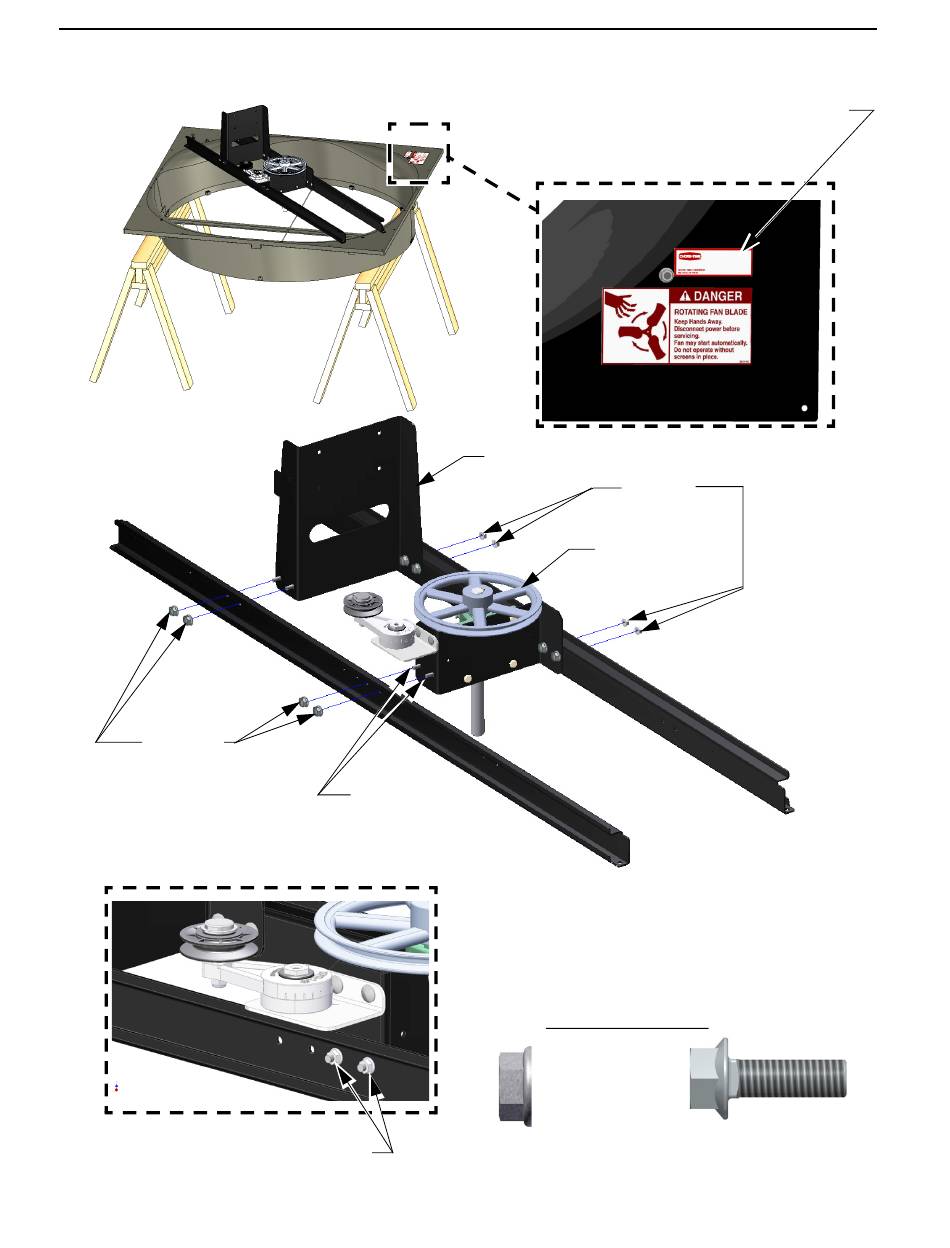

Installing the Drive Assembly and Motor Mount
Apply a Fan Description Decal to the Shroud
as shown. (Included in Parts Package)
(48396C) Motor Support
(46764)
(53753-X)
Drive Assembly
(46764)
(54287) x8
Hardware Full Scale
(54287) 5/16-18 x 1.00
(46764) 5/16 Flg. Nut
Use the Bottom Set of Holes in the
SS Shldr. Bolt
Posts as shown.
10
MV2406P
