57" Endura
Fan

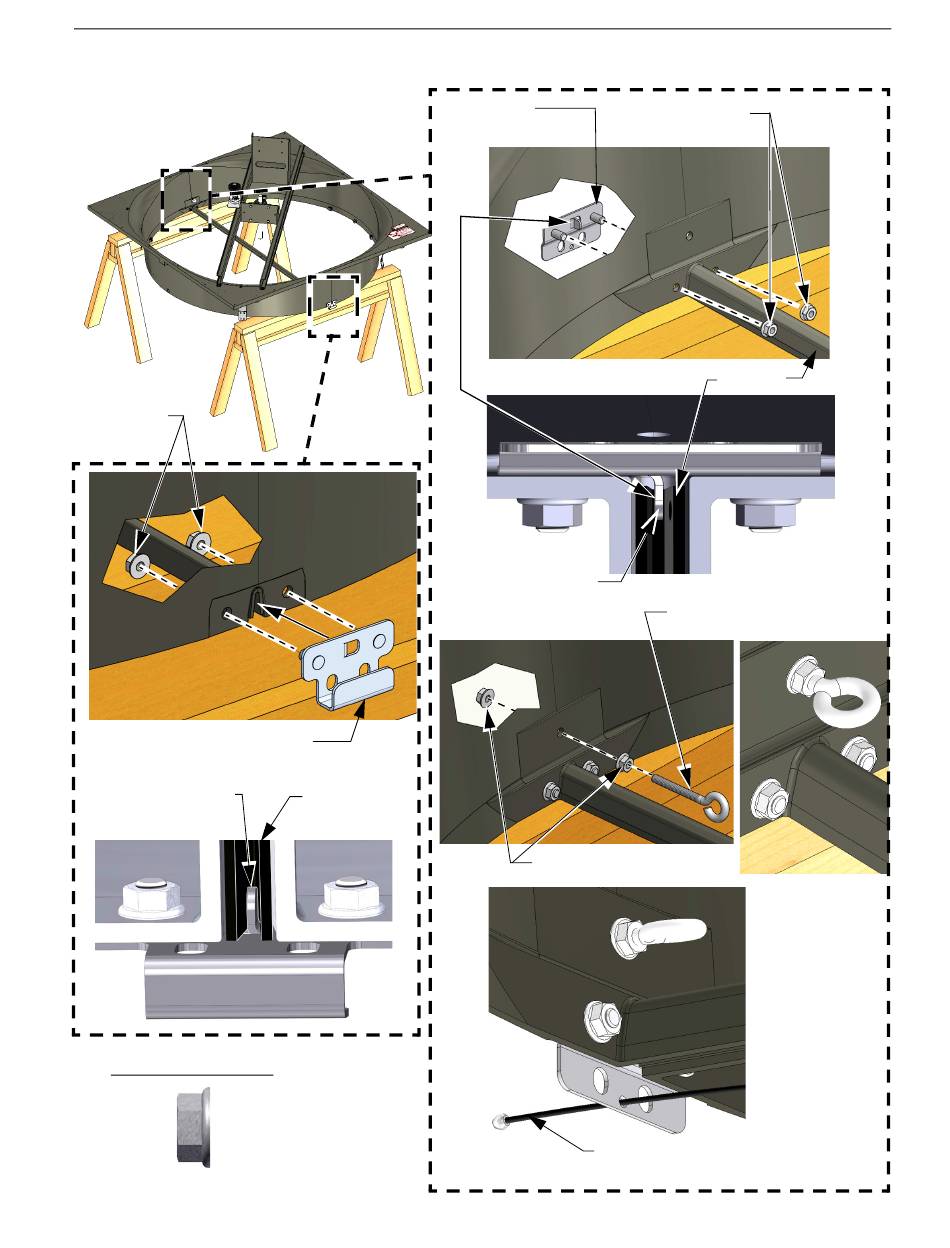

Top and Bottom Pivot Plates and Eyebolt, Door Stop Cable
(46764) Nut
(53036) Bottom Pivot Plate
Pivot Plate Tab
Centered in V-Post
Hardware Full Scale
(46764) 5/16 Flg. Nut
MV2406P
(53037)
Top Pivot Plate
Pivot Plate Tab
Centered in V-Post
V-Post
(46764)
Nut
(3066) Eyebolt
(46764) Nut
Insert (53399) Door Stop Cable
Assembly into Top Pivot Plate
Installation
V-Post
11
