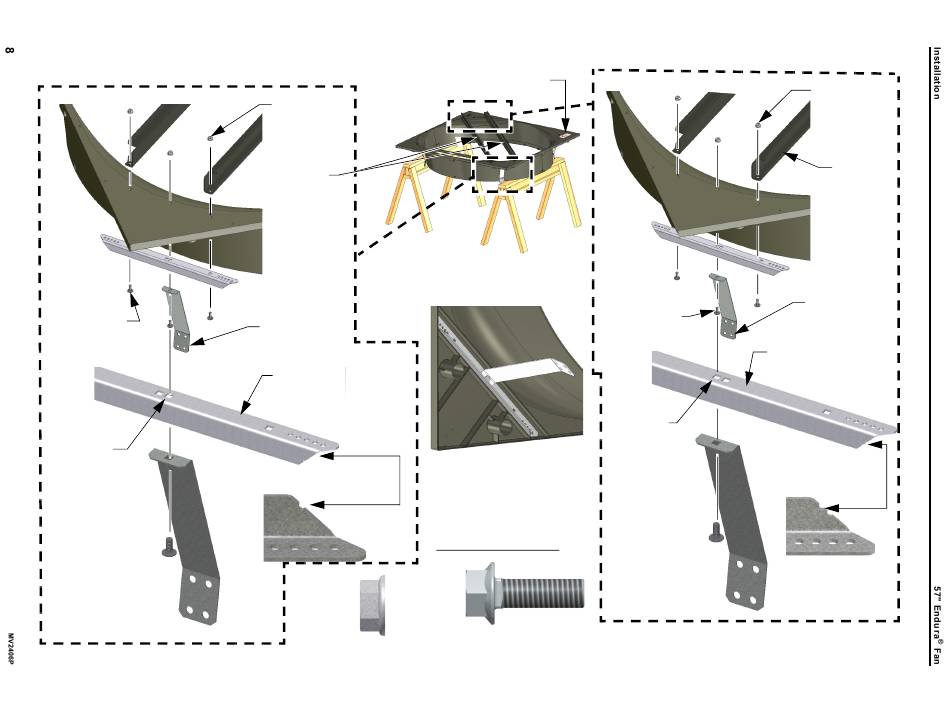

Attaching Fan Posts
(27868-1) x3
Bolt
1st Hole
(46764) x3
Nut
(53204)
Fan Post
(53039)
Cone Bracket
(53206) Bottom Corner
Support Bracket
View from Front of Fan
One Notch
Hardware Full Scale
(46764) 5/16 Flg. Nut
Decal
(27868-1) x3
2nd Hole
(bottom left corner)
(54287) 5/16-18 x 1.00
SS Shldr. Bolt
(46764) x3
Nut
(53204)
Fan Post
(53039)
Cone Bracket
Bolt
(53205) Top Corner
Support Bracket
Two Notches
