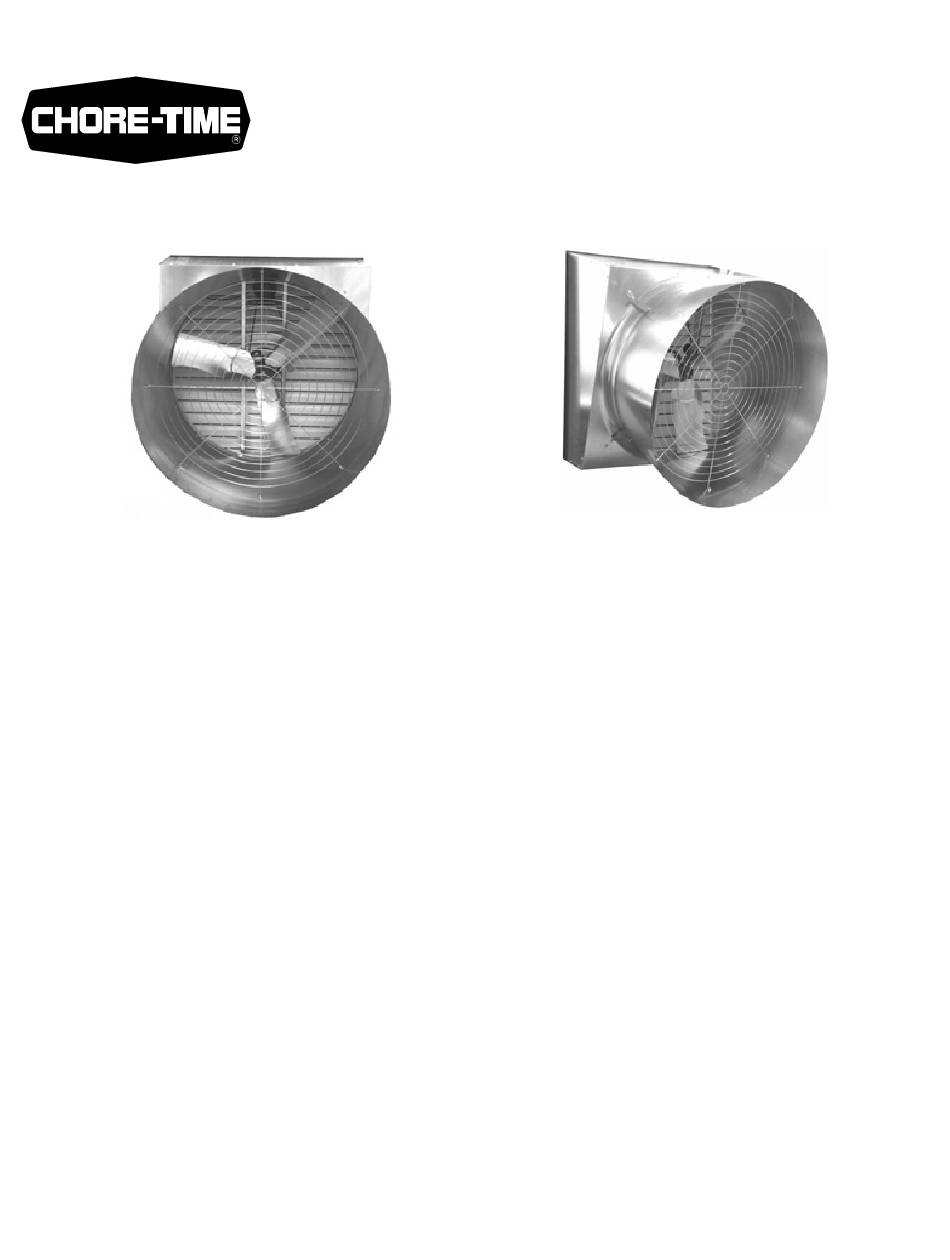

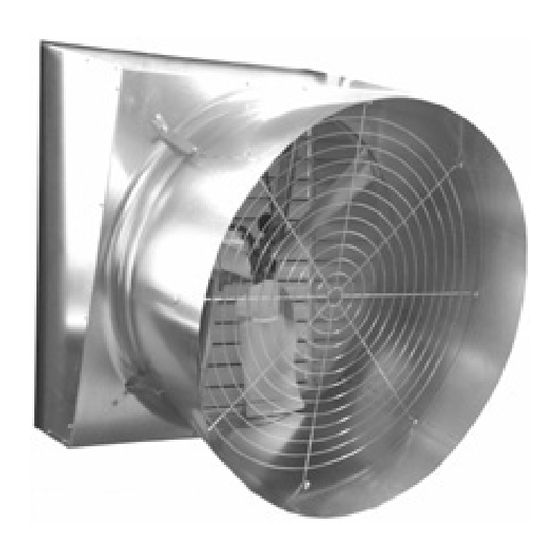

48" and 52" Vanguard Plus Belt Drive Fans
Installation and Operators Instruction Manual
Thank You
employees of CTB Inc. would like to thank your for your recent Chore-Time purchase. If a problem should arise,
The
your Chore-Time distributor can supply the necessary information to help you.
Note: The original, authoritative version of this manual is the English version produced by CTB, Inc. or any of its
subsidiaries or divisions, (hereafter collectively referred to as "CTB"). Subsequent changes to any manual made by any
third party have not been reviewed nor authenticated by CTB. Such changes may include, but are not limited to,
translation into languages other than English, and additions to or deletions from the original content. CTB disclaims
responsibility for any and all damages, injuries, warranty claims and/or any other claims associated with such changes,
inasmuch as such changes result in content that is different from the authoritative CTB-published English version of the
manual. For current product installation and operation information, please contact the customer service and/or technical
service departments of the appropriate CTB subsidiary or division. Should you observe any questionable content in any
manual, please notify CTB immediately in writing to: CTB Legal Department, P.O. Box 2000, Milford, IN 46542-2000
USA.
Contact your nearby Chore-Time distributor or representative for additional parts and information.
CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone (574) 658-4101 Fax (877) 730-8825
Email: choretime@choretime.com
Internet: www.choretime.com
MV1758M
January 2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chore-Time 48318 Series
Summary of Contents for Chore-Time 48318 Series
- Page 1 Installation and Operators Instruction Manual Thank You employees of CTB Inc. would like to thank your for your recent Chore-Time purchase. If a problem should arise, your Chore-Time distributor can supply the necessary information to help you. Note: The original, authoritative version of this manual is the English version produced by CTB, Inc. or any of its subsidiaries or divisions, (hereafter collectively referred to as "CTB").
- Page 2 Fan and Fan Framing Dimensions 48" and 52" Vanguard Plus Belt Drive Fans Fan and Fan Framing Dimensions MV1760-002 05/03 Planning the layout of the spacing between fans is very 1760-001 05/03 important. Spacing too close together will cause interfer- ence between Discharge Cones.
-
Page 3: Cone Assembly
48" and 52" Vanguard Plus Belt Drive Fans Cone Assembly Cone Assembly The Fan Cone is assembled by interlocking four identical Panels (See Figure below).Use a piece of lumber to prop up the end of a Panel with slots. Interlock two Panels by sliding the tabbed end of another Panel into these slots. - Page 4 Wiring 48" and 52" Vanguard Plus Belt Drive Fans Wiring 1. Install an electrical disconnect within reach of each Fan installed. 2.Remove the Motor Access Cover. 3. Remove the electrical knock-out nearest the Fan power supply outlet. 4. Install the Romex Connector and cord through the knock-out selected before wiring the motor. Connect the cord to the motor according to the wiring diagram on the motor.
-
Page 5: Belt Installation
48" and 52" Vanguard Plus Belt Drive Fans Belt Installation Belt Installation 1.Install the Belt as shown. Belt Shutter Installation The Bottom Panel is designed with 3 tabs, (Item 1, Figure below), to hold the Shutter. Slide the bottom of the Shutter into the Tabs, lean the Shutter into the Fan and lock the Shutter in place by rotating the (5) Shutter Clips (Item 2). -
Page 6: Maintenance
Maintenance 48" and 52" Vanguard Plus Belt Drive Fans Maintenance IMPORTANT! Disconnect Power Prior To Maintaining Or Cleaning The Fan. The fan may start automatically causing serious injury or death. • Service and repair of fans should be done only by a qualified technician. •Minimize contact of moisture or corrosive chemicals to the surfaces of the fan components to maximize fan life. - Page 7 48" and 52" Vanguard Plus Belt Drive Fans Maintenance Fan Bearing and Belt Tensioner Lubrication • Grease zerks are provided for lubrication on the fan shaft bearings and the belt tensioner. • Lubricate the fan every 2-6 months or whenever these components get wet. •...
- Page 8 48" and 52" Itemized Parts 48" Fan Blades Prior to 2/1/24 48" Fan Blades Since 2/1/24...
- Page 9 48" and 52" Vanguard Plus Belt Drive Fans 48" (48318-XXX) and 52" (48319-XXX) Part Numbers 48" (48318-XXX) and 52" (48319-XXX) Part Numbers Chore-Time Vanguard Plus Fan Components 48" Fans 52" Fans 48318-XXX 48319-XXX Item Part Description Part No. Models Part No.
-
Page 10: Safety Information
(1) year from and after the date of initial installation by or for the original purchaser. If such a defect is found by Chore-Time to exist within the one-year period, Chore-Time will, at its option, (a) repair or replace such product free of charge, F.O.B.
