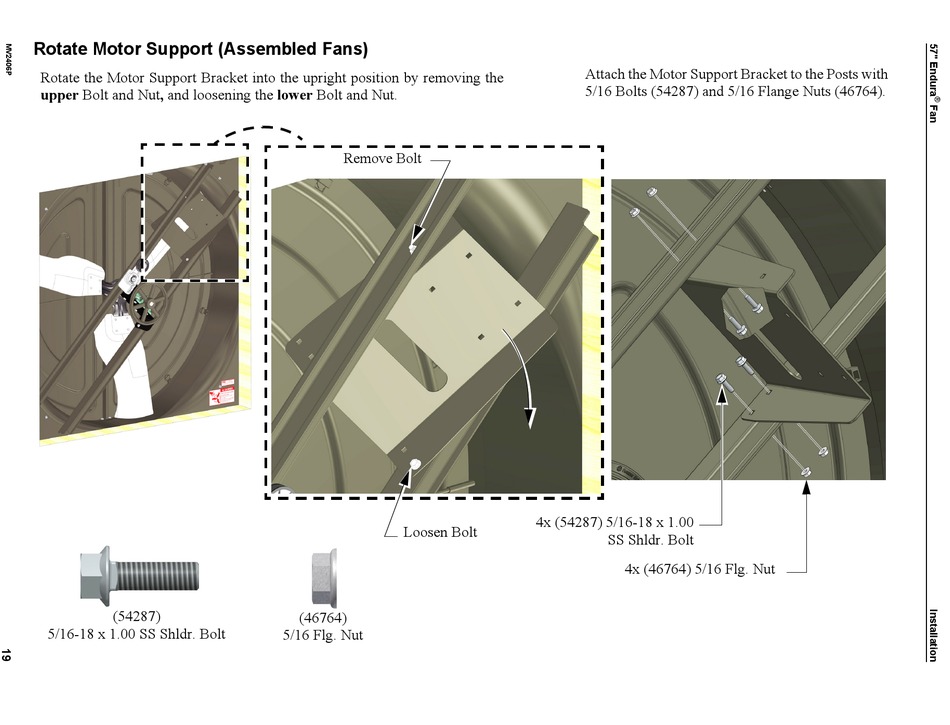

Rotate Motor Support (Assembled Fans)

Rotate the Motor Support Bracket into the upright position by removing the
upper Bolt and Nut, and loosening the lower Bolt and Nut.
(54287)
5/16-18 x 1.00 SS Shldr. Bolt
Remove Bolt
Loosen Bolt
(46764)
5/16 Flg. Nut
Attach the Motor Support Bracket to the Posts with
5/16 Bolts (54287) and 5/16 Flange Nuts (46764).
4x (54287) 5/16-18 x 1.00
SS Shldr. Bolt
4x (46764) 5/16 Flg. Nut
