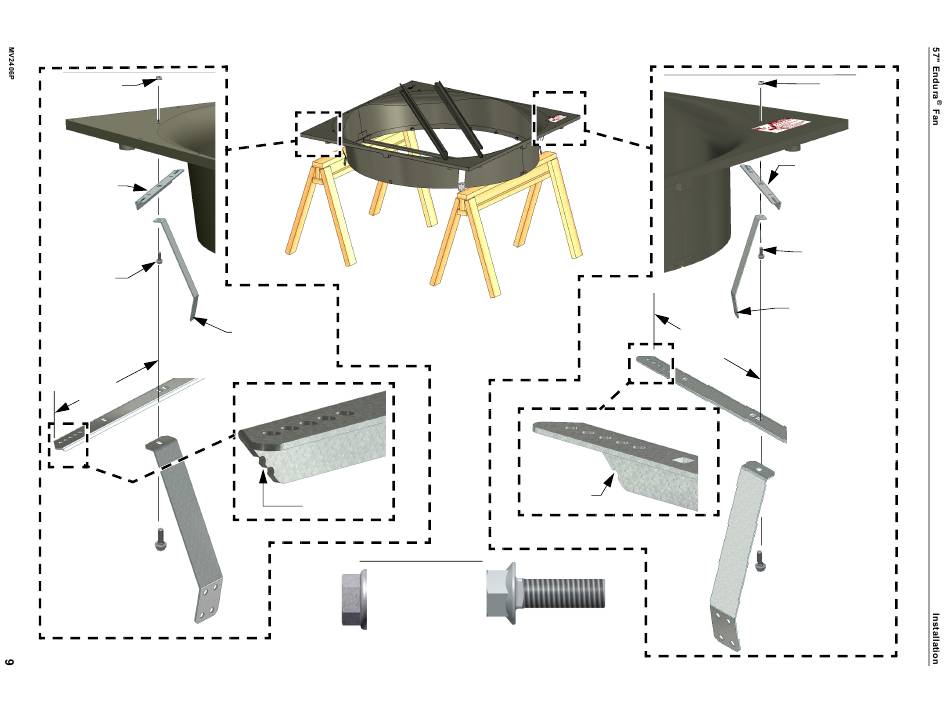

Cone Brackets, Corner Brackets (Corners without Posts)

(46764) Nut

(53205)Top

Corner Sup-

port Bracket

(27868-1)

Bolt

1st Hole

(53039)

Cone Bracket

Two Notches

Hardware Full Scale

(46764) 5/16 Flg. Nut

One Notch

(54287) 5/16-18 x 1.00

SS Shldr. Bolt

(46764)

Nut

(53206) Bottom

Corner Support

Bracket

(27868-1) Bolt

(53039)

Cone Bracket

2nd Hole
