Tools Needed and Supplies

Tools Needed and Supplies
3/8" socket, 1/2"socket or wrench, Side cutters, 1/4" nut driver, Motor power cord, Wire nuts / terminals, Optional
screw hook installation tool (CTB part number 13150-1), Caulking, 5/32" allen wrench (un-assembled)

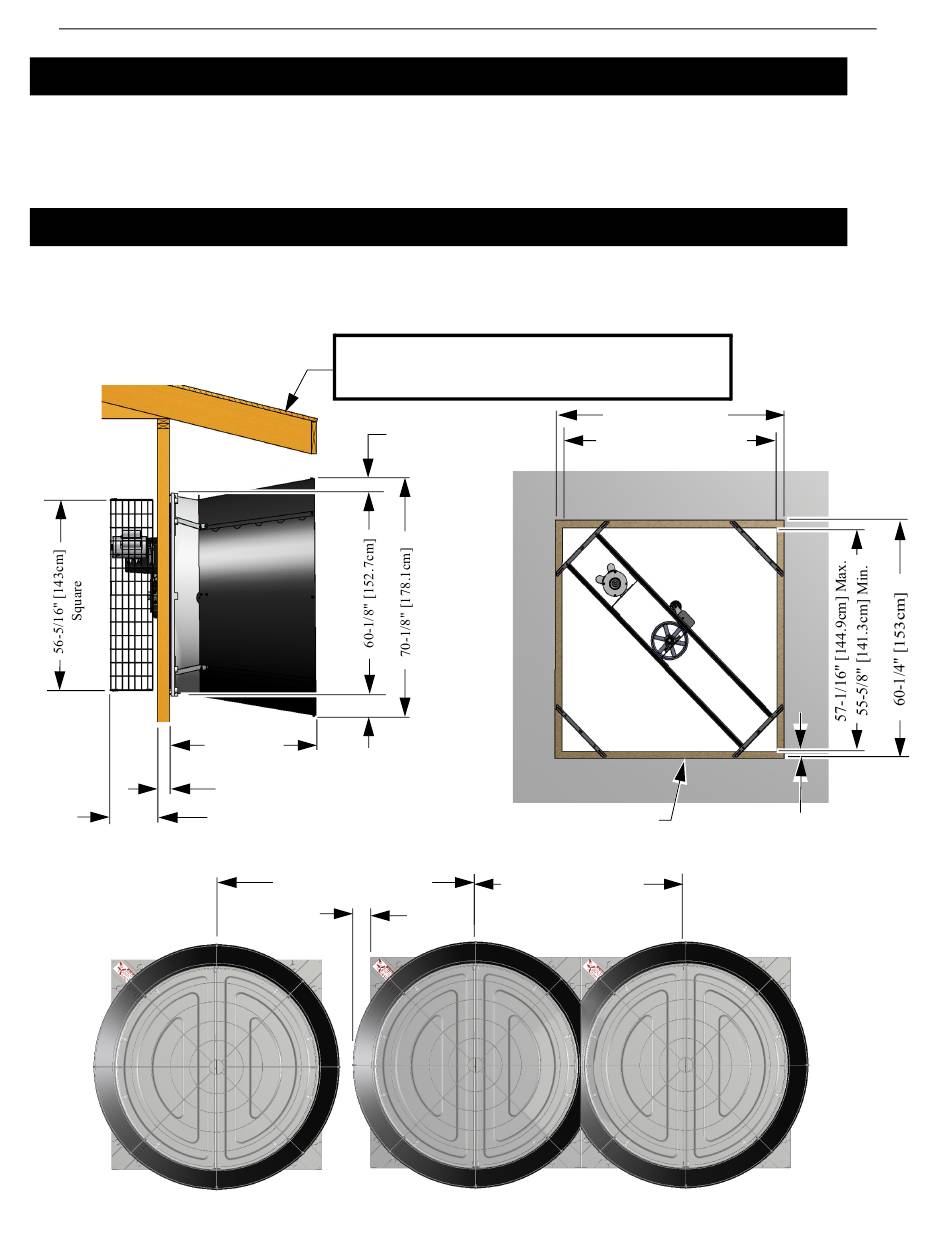

New Installation Planning

Planning the layout of the spacing between Fans is very important. Spacing too close together will cause interference
between the discharge Cones.
42-13/16"
[108.7cm]
Minimum Wall Thickness 3-1/2" [8.9cm]
13-11/16" [34.8cm] Inside Wall to Screen
6
!Important: Provide Shelter over Cones in areas where
snow or ice could cause damage. CTB Inc. Warranty Does
Not cover damage from external sources.
4-5/16"
[10.9cm]
5-11/16" [14.4cm]
72" [182.9cm]
Recommended Spacing
5" [12.7cm]
60-1/4" [153.0cm]
57-3/8" [145.7cm] Max.
55-1/4" [140.3cm] Min.
Important!
Fan mounting
surface must be flat.
60-1/16" [152.5cm]
Minimum Spacing if
sides of Cone are flat-
tened (See page 17).
®
57" Endura Fan
1-3/4" [4.4cm] required at
the bottom of the opening.
MV2406P
