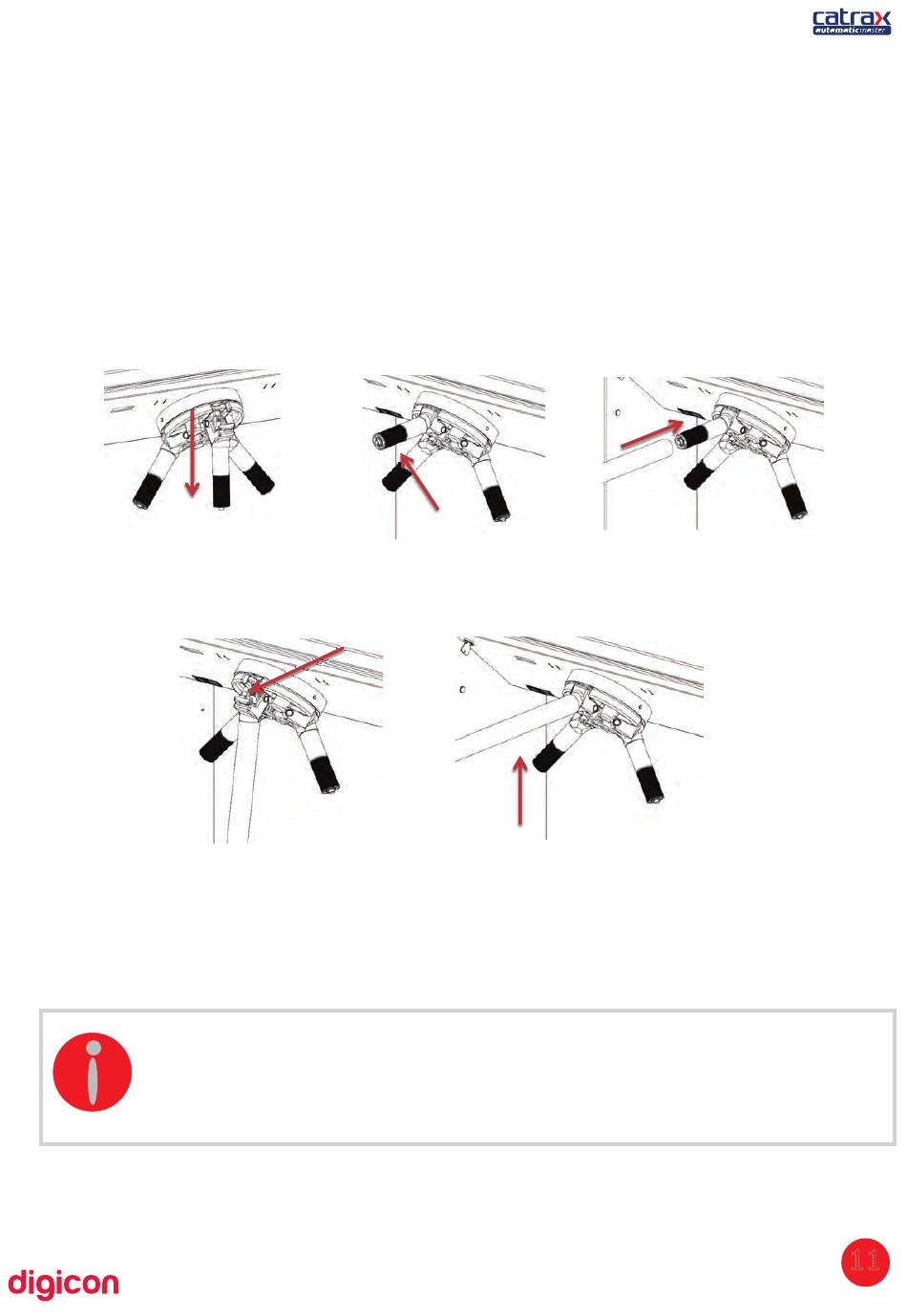

5.3 Assembling the arms

After positioning and aligning the turnstile in its operation place, it's time to assemble
the arms. Make sure that you have all the necessary items and that the turnstile is
turned off, once you will have to remove the bowl to screw in the arms.
The arms are provided disassembled. To assemble them, observe the following
instructions.
The wrench used for assembling the arms is an Allen n.8 and the screws must be
fastened to the maximum to ensure good fixation. All three arms must be fixed in the
same upper central point.
st
1 Let the mini arm drop
th
4 Fixate the screw inside the
mini arm using an Allen n.8 wrench
Repeat the operation on the three arms and make sure all arms are well fixed.
INFORMATION:
- The cover for accessing the screws is fitted into place, so pressure it to
open or close it.
- To assemble the arms of Automatic Master, use an Allen n. 8 wrench.
n d
2 Make sure the mini
arm's plastic part is fitted into
the steel part.
th
5 Put the arm back into
its normal position
rd
3 Fit the stainless steel
arm in the mini arm
