6.5.1.5 Pictogram

The pictogram's outputs are activated by NPN transistors (maximum 500 mA) at the
moment of activation, the GND is sent through a corresponding output.
BOARD'S VERSION
NUMBER

6.5.2 Outputs

CATRAX Automatic Clip's board has outputs for return signals, electromagnets,
pictogram, collecting box, and sound alarm.
6.5.3

Configuration of Control Board

The switch (or dipswitch) DS1 allows programming the following actions:
-passage direction
-Maximum time for passage
-NO inputs (relay or pushbutton contact normally open and without input voltage),
enabling passage in face of these signals; or NC inputs (relay or pushbutton contact
usually closed and with input voltage), enabling passage in the absence of these
signals.
-enabling of a signal for a sound alarm if the access control remains at mid passage for
more than 2 seconds.
To program DS1, put each pin in the desired position, according to the table below:

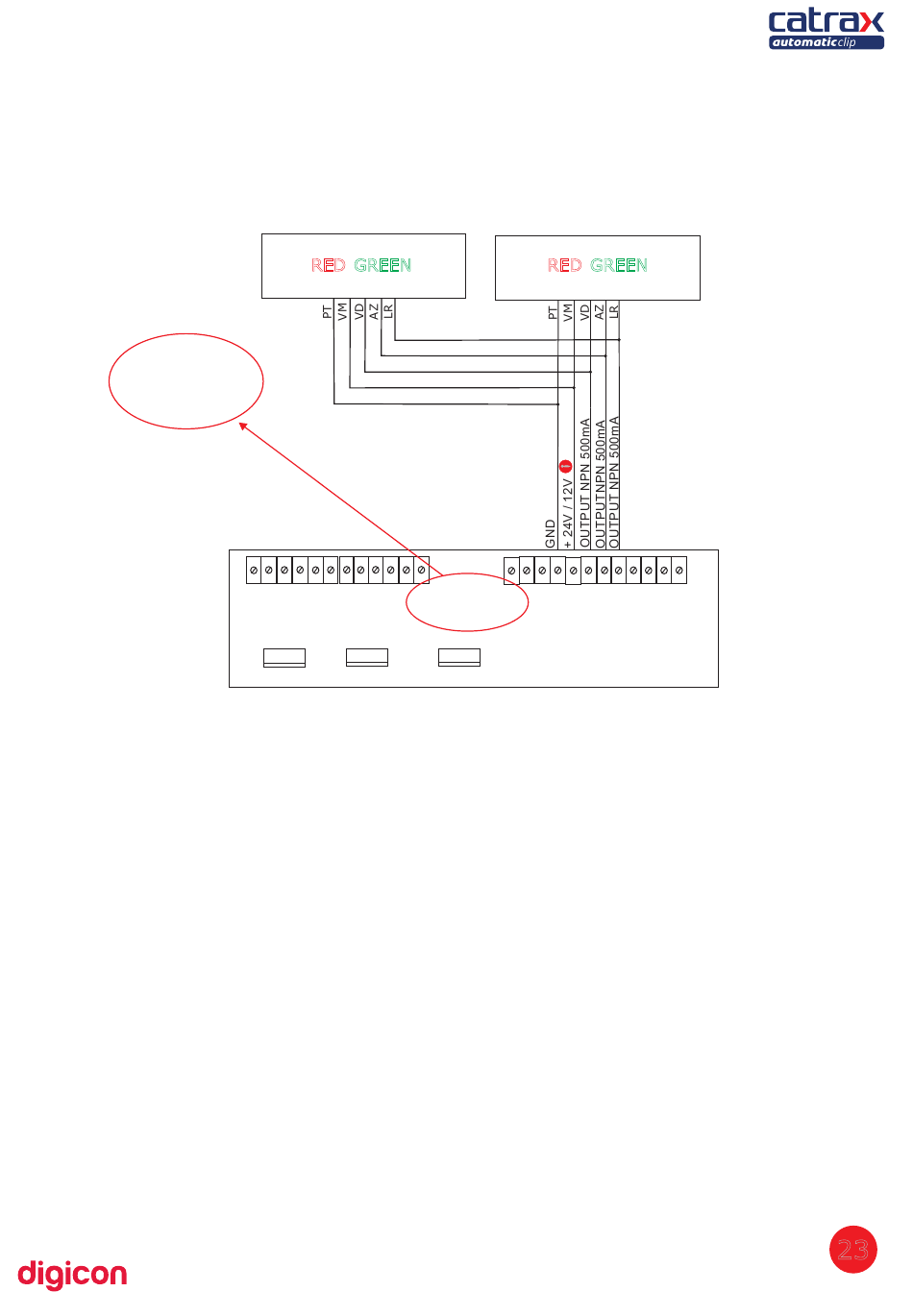

RED / GREEN
12 11 10 9 8 7 6 5 4 3 2 1
INPUTS CN8
DIGICON CONTROL BOARD
BOX SENSOR ELECTROMAGNETS TURNSTILE SENSORS
RED / GREEN
12 11 10 9 8 7 6 5 4 3 2 1
XXXXXX
OUTPUTS CN9
