6.2

Collecting box kit

The collecting box kit has a device for collecting, retaining, and gathering cards or
badges. It is ideal for places with eventual visitors or users. The kit is composed of a

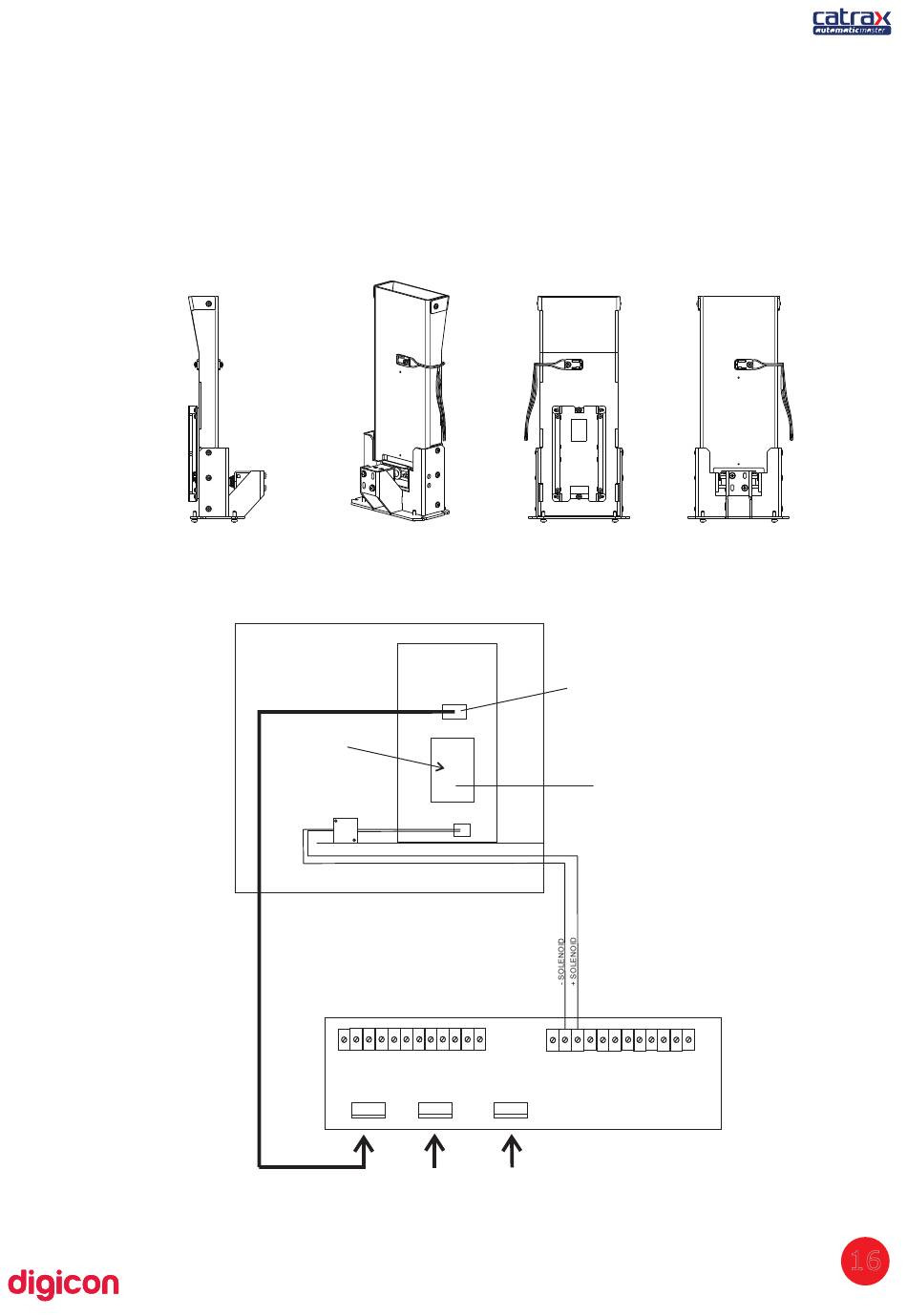

socket, a retention device activated by a solenoid, and a storage box. The image
below shows the items that accompany the collecting box kit:
6.2.1 Connection of collecting kit to control board
Connection of
collecting kit
to control board
SOLENOIDE
12 11 10 9 8 7 6 5 4 3 2 1
INPUTS CN8
BOX SENSOR ELECTROÍMAGNETS TURNSTILE SENSORS
Sensor used for collecting
the card after 1.5 seconds
For access
control board
12 11 10 9 8 7 6 5 4 3 2 1
OUTPUTS CN9
DIGICON CONTROL BOARD
