5.5 Connection to power network

The Turnstile is powered by a 24 Vcc supply (located inside the turnstile). The
power supply can be of 100 to 240 Vca. Digicon recommends the regulation NBR
5410 as reference to the equipment's electrical connections. In one of its columns,
the turnstile has circuit breakers in its columns where the power cables (electrical
supply) and the ground wire must be connected.
CAUTION: Electric connections must be performed by qualified
professionals.
TIP: We recommend that you use a good quality AC cable and ground wire
and with compatible dimensions to the distance until the switchboard.

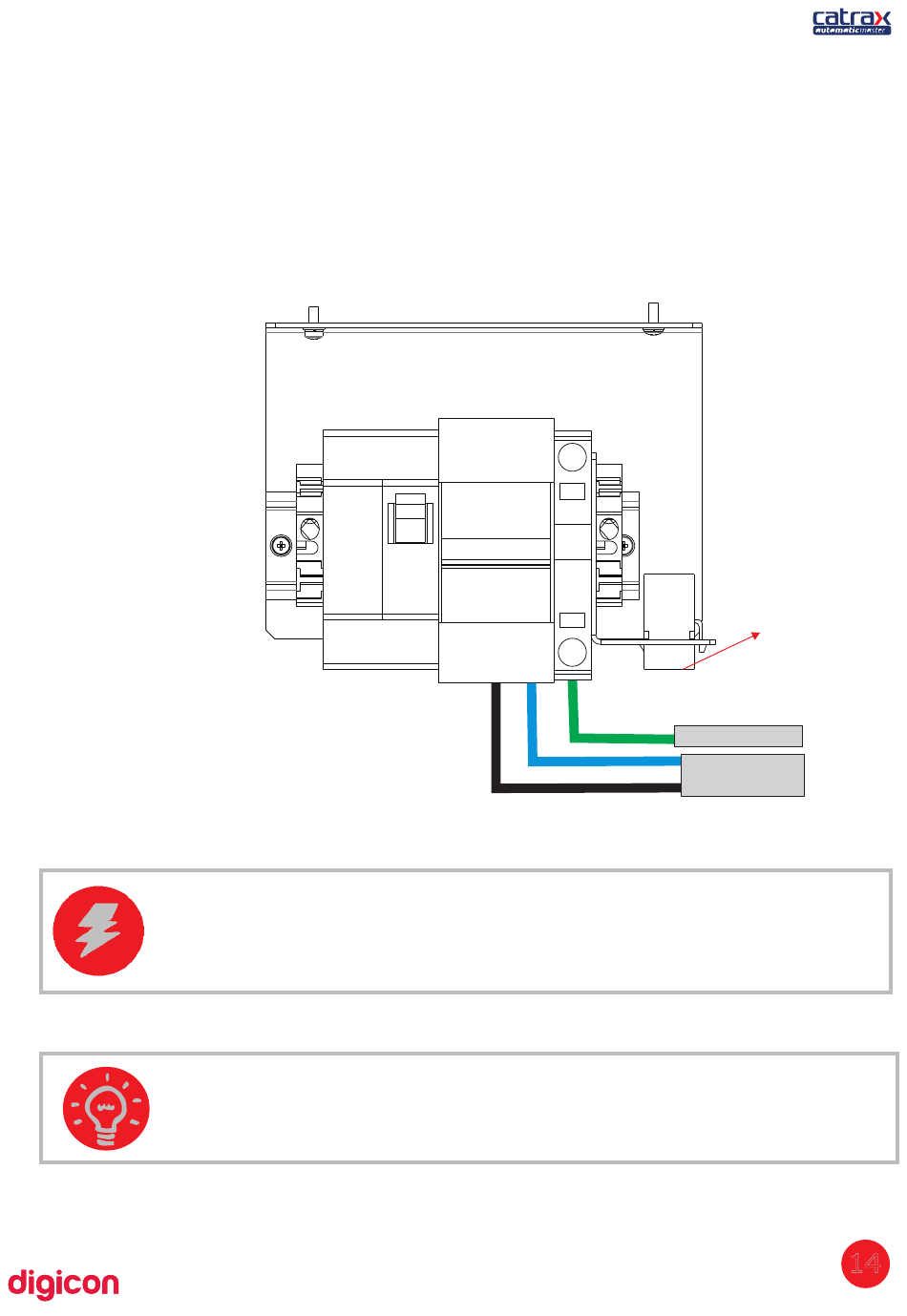

Input for
data cables
Ground wire
Electric network
