Electrical Installation
1
2
3
4
L1
L2
L3
PE
5
1 PLC
2
Minimum 16 mm 2 (6 AWG) equalizing cable
3 Control cables
4 Required minimum separation of 200 mm (7.9 in) between
control cables, motor cables, and mains cables
5 Mains supply
6 Bare (unpainted) surface
7 Star washers
8 Brake cable (shielded)
9 Motor cable (shielded)

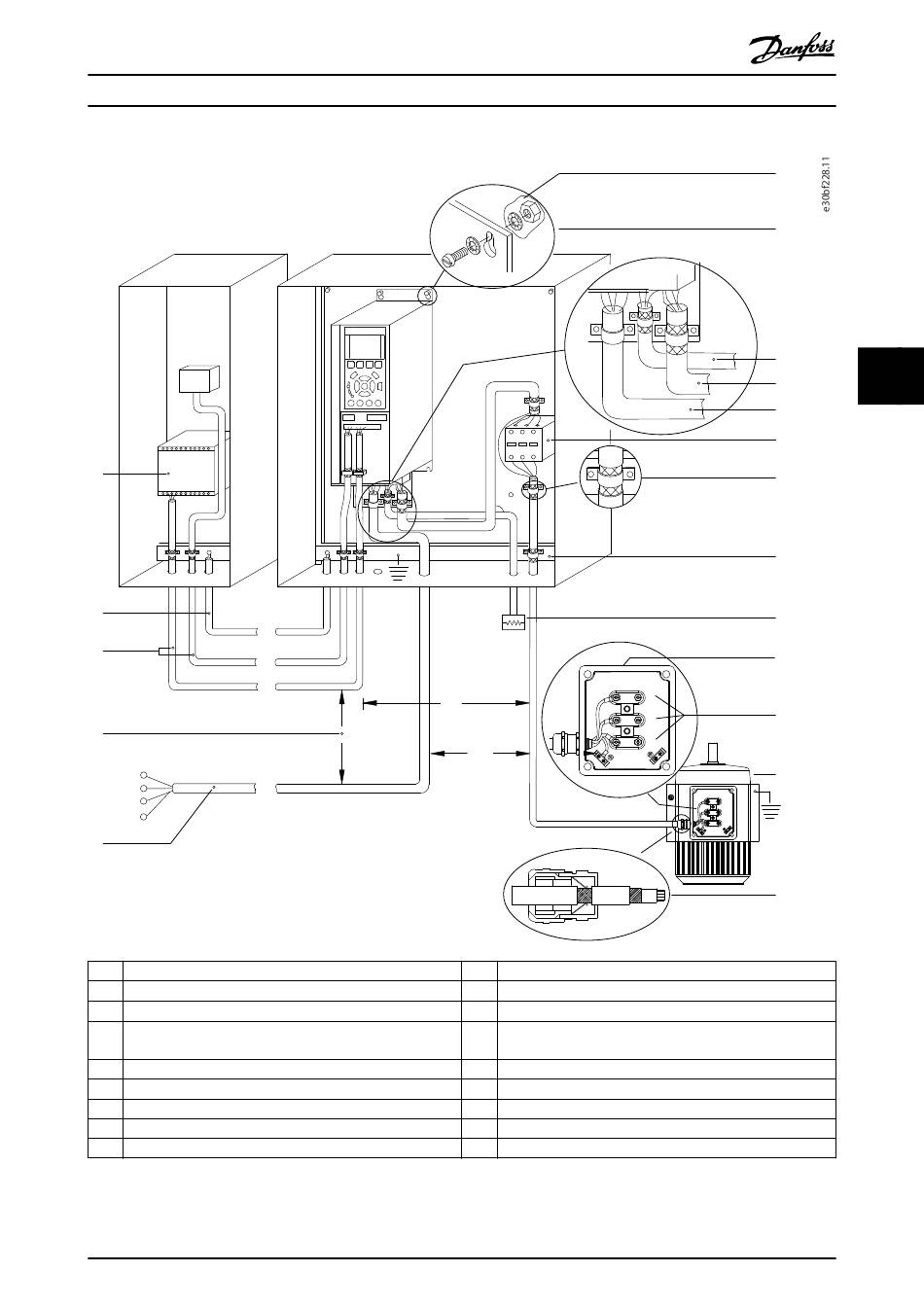

Illustration 5.1 Example of Proper EMC Installation
MG21A502
Operating Guide
90
4
4
10 Mains cable (unshielded)
11 Output contactor and similar options
12 Cable insulation stripped
13 Common ground busbar (Follow local and national
requirements for enclosure grounding)
14 Brake resistor
15 Metal box
16 Connection to motor
17 Motor
18 EMC cable gland
