Product Overview

3.4 Interior View of D2h Drive

Illustration 3.2 shows the D2h components relevant to installation and commissioning. The D2h drive interior is similar to
that of the D4h, D7h, and D8h drives. Drives with the contactor option also contain a contactor terminal block (TB6). For the
location of TB6, see chapter 5.8 Terminal Dimensions.
3 3
1
2
3
4
5
1 Fieldbus top entry kit (optional)
2 LCP (local control panel)
3 Control terminals
4 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
5 Cable clamps
6 Lifting ring

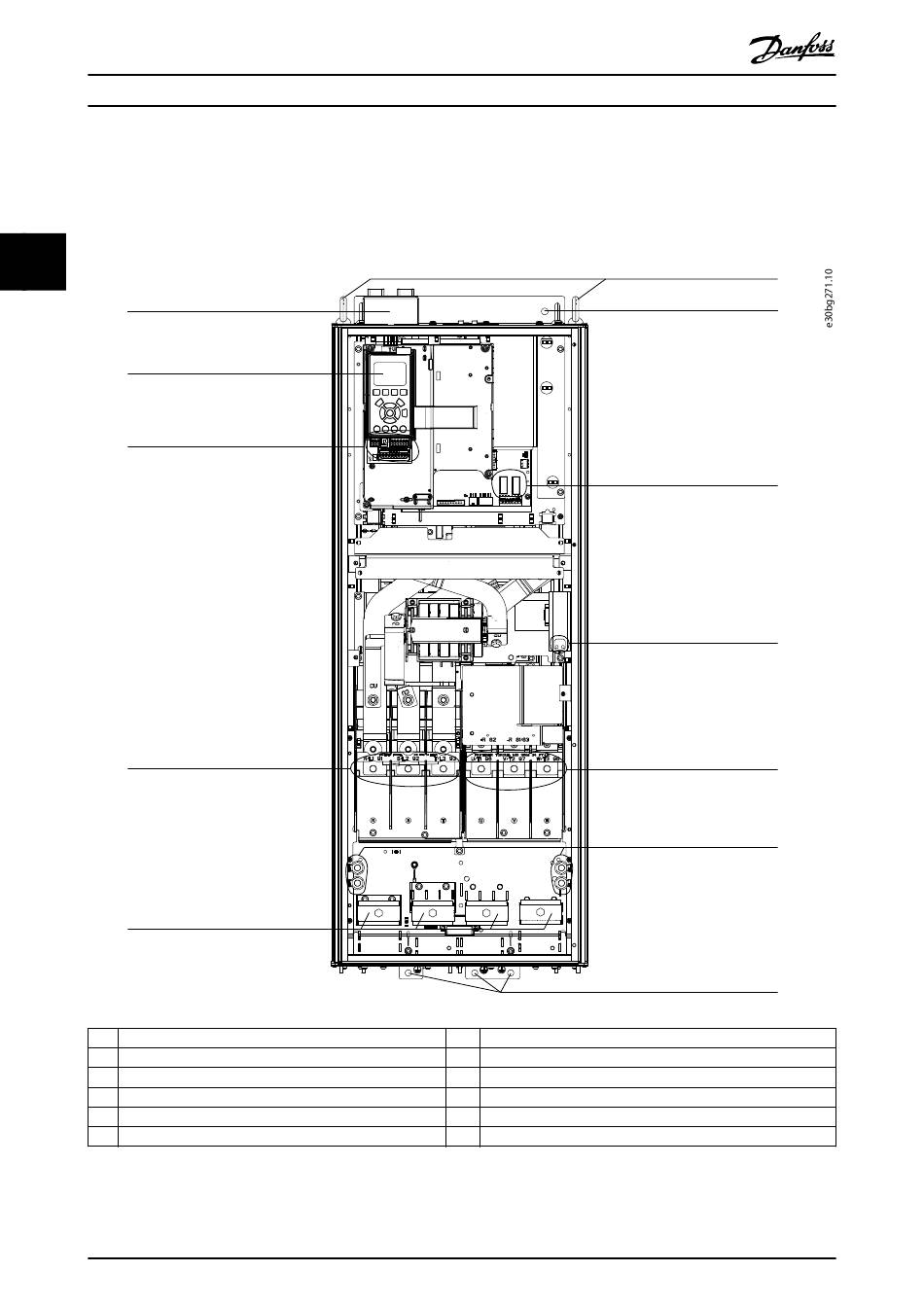

Illustration 3.2 Interior View of D2h Drive (Similar to D4h/D7h/D8h)
10
VLT® AQUA Drive FC 202
7 Mounting hole
8 Relays 1 and 2
9 Terminal block for anti-condensation heater (optional)
10 Motor output terminals 96 (U), 97 (V), 98 (W)
11 Ground terminals for IP21/54 (Type 1/12)
12 Ground terminals for IP20 (Chassis)
Danfoss A/S © 09/2018 All rights reserved.
6
7
8
9
10
11
12
MG21A502
