Electrical Installation
5.8.4 D4h Terminal Dimensions
1
319 (12.6)
200 (7.9)
0.0
1
Mains terminals
2
Brake terminals

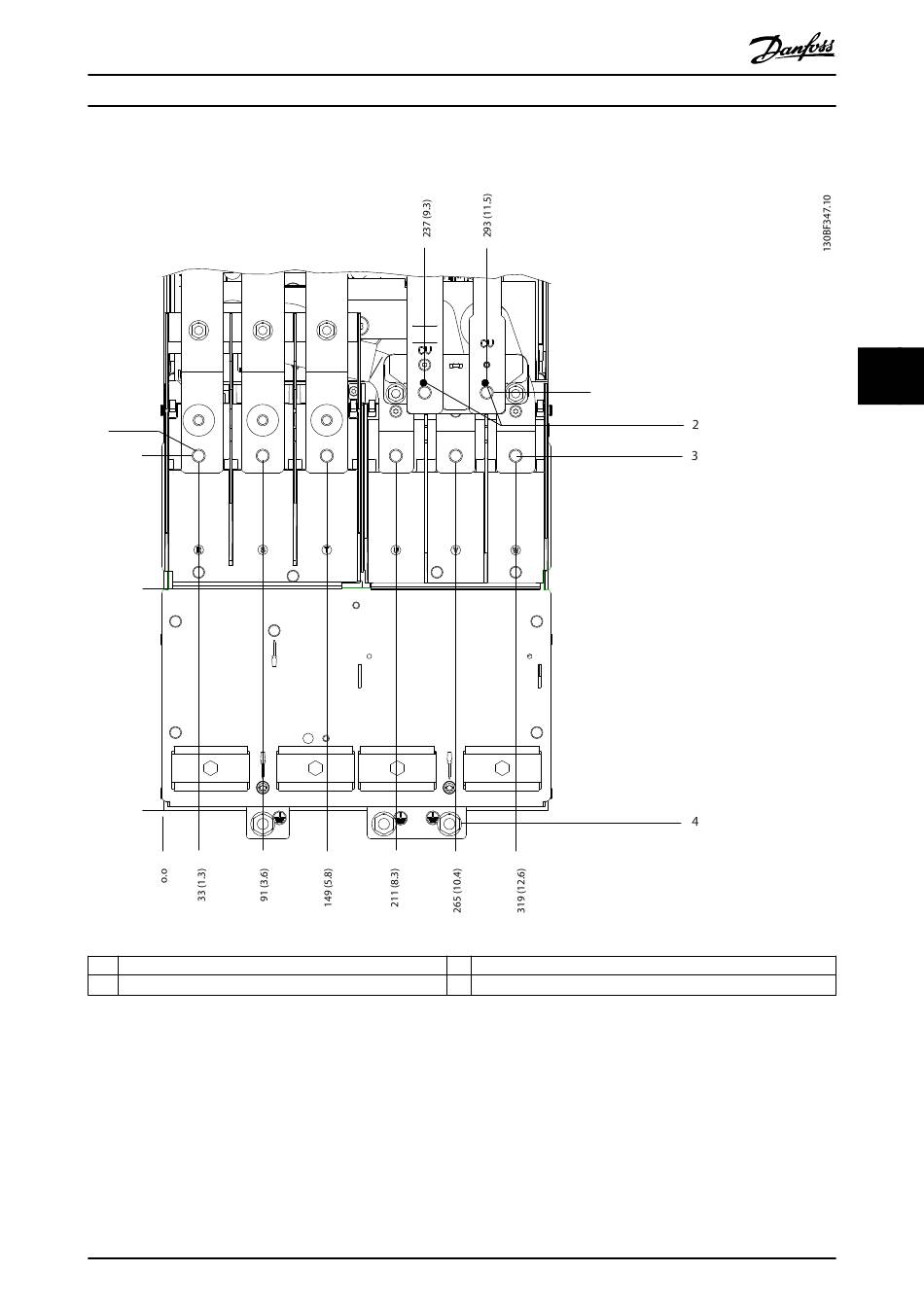

Illustration 5.13 D4h Terminal Dimensions (Front View)
MG21A502
Operating Guide
3
Motor terminals
4
Ground terminals
