Wiring Configuration Exampl...
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
29
D IN
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 8.7 Wiring Configuration for Start/Stop with Reversing
and 4 Preset Speeds
MG21A502
Operating Guide
Parameters
Function Setting
Parameter 5-10 [8] Start
Terminal 18
Digital Input
Parameter 5-11 [10] Reversing*
Terminal 19
Digital Input
Parameter 5-12 [0] No
Terminal 27 operation
Digital Input
Parameter 5-14 [16] Preset ref
Terminal 32 bit 0
Digital Input
Parameter 5-15 [17] Preset ref
Terminal 33 bit 1
Digital Input
Parameter 3-10
Preset Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
*=Default value
Notes/comments:
Danfoss A/S © 09/2018 All rights reserved.

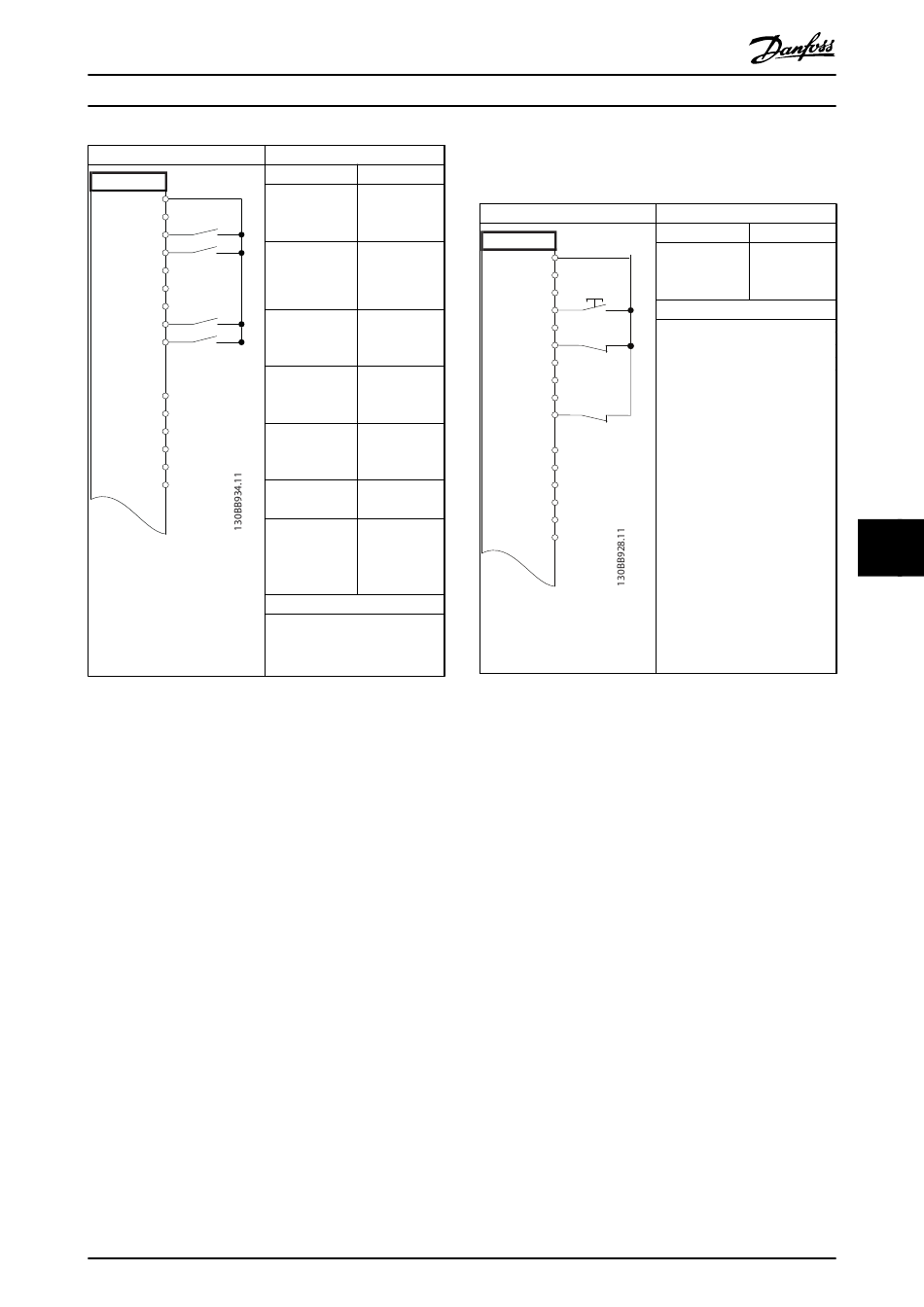

8.4 Wiring Configurations for an External
Alarm Reset
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 8.8 Wiring Configuration for an External Alarm Reset
Parameters
Function Setting
Parameter 5-11 [1] Reset
Terminal 19
Digital Input
*=Default value
Notes/comments:
75
8 8
