4. Power & Control Wiring
4.1. Connection Locations

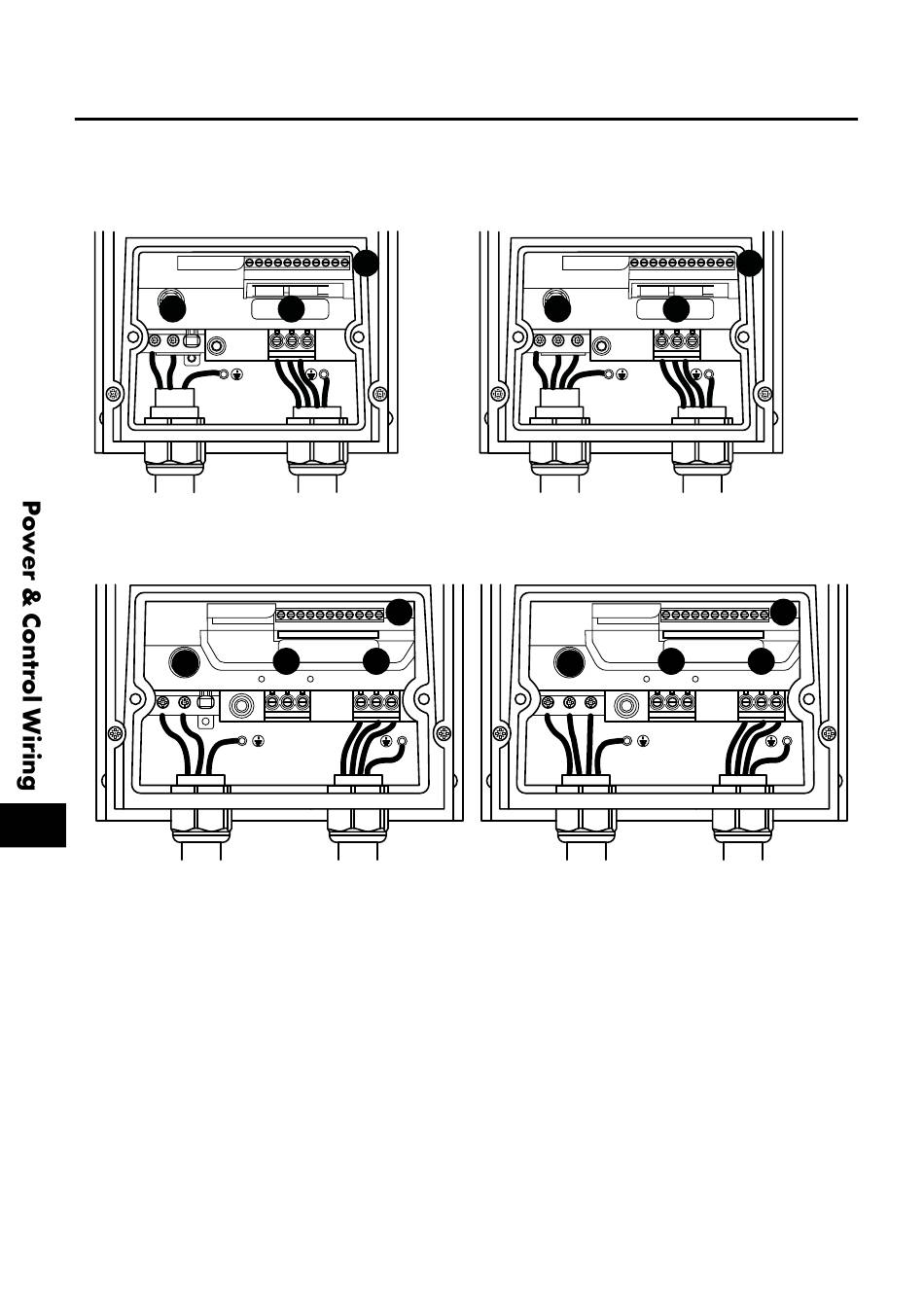

4.1.1. Connection locations – Frame size 1
Single phase supply
I0I0I
A
L2/N
L3
L1
4.1.2. Connection locations – Frame sizes 2, 3 and 4
Single phase supply
A
L1
L2/N
4
A – Incoming Power Connections see section 4.4. Incoming Power Connection for more information
B – Motor Connections see section 4.5. Motor Connection for more information
C – Control Terminal Connections see section 4. 1 0. Control Terminal Connections for more information
D – Brake Resistor see section 4. 1 3. Optional Brake Resistor for more information
