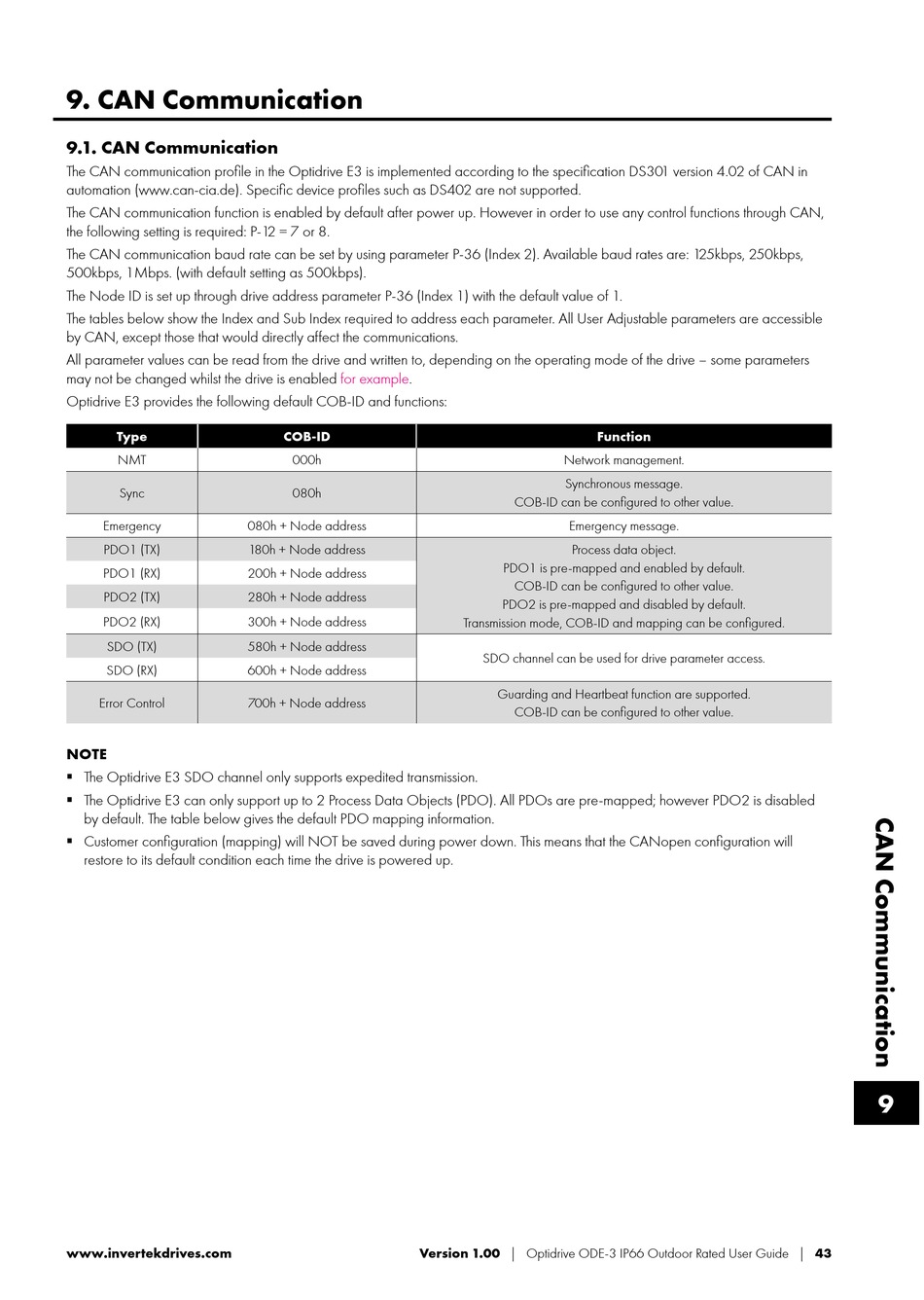

9. CAN Communication
9.1. CAN Communication
The CAN communication profile in the Optidrive E3 is implemented according to the specification DS301 version 4.02 of CAN in
automation (www.can-cia.de). Specific device profiles such as DS402 are not supported.
The CAN communication function is enabled by default after power up. However in order to use any control functions through CAN,
the following setting is required: P-12 = 7 or 8.
The CAN communication baud rate can be set by using parameter P-36 (Index 2). Available baud rates are: 125kbps, 250kbps,
500kbps, 1Mbps. (with default setting as 500kbps).
The Node ID is set up through drive address parameter P-36 (Index 1) with the default value of 1.
The tables below show the Index and Sub Index required to address each parameter. All User Adjustable parameters are accessible
by CAN, except those that would directly affect the communications.
All parameter values can be read from the drive and written to, depending on the operating mode of the drive – some parameters
may not be changed whilst the drive is enabled
Optidrive E3 provides the following default COB-ID and functions:
Type
NMT
Sync
Emergency
PDO1 (TX)
PDO1 (RX)
PDO2 (TX)
PDO2 (RX)
SDO (TX)
SDO (RX)
Error Control
NOTE
The Optidrive E3 SDO channel only supports expedited transmission.
T he Optidrive E3 can only support up to 2 Process Data Objects (PDO). All PDOs are pre-mapped; however PDO2 is disabled
by default. The table below gives the default PDO mapping information.
C ustomer configuration (mapping) will NOT be saved during power down. This means that the CANopen configuration will
restore to its default condition each time the drive is powered up.
www.invertekdrives.com
for
example.
COB-ID
000h
080h
080h + Node address
180h + Node address
200h + Node address
280h + Node address
300h + Node address
580h + Node address
600h + Node address
700h + Node address
Version 1.00 | Optidrive ODE-3 IP66 Outdoor Rated User Guide | 43
Function
Network management.
Synchronous message.
COB-ID can be configured to other value.
Emergency message.
Process data object.
PDO1 is pre-mapped and enabled by default.
COB-ID can be configured to other value.
PDO2 is pre-mapped and disabled by default.
Transmission mode, COB-ID and mapping can be configured.
SDO channel can be used for drive parameter access.
Guarding and Heartbeat function are supported.
COB-ID can be configured to other value.
9
