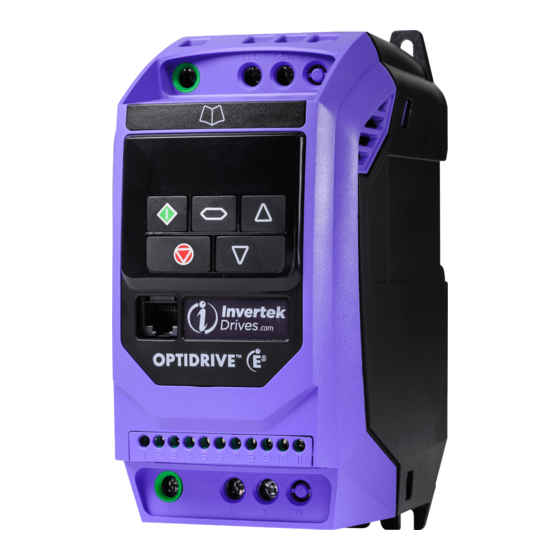

Invertek Drives OPTIDRIVE E3 Service Manual
Outdoor rated drive
Hide thumbs
Also See for OPTIDRIVE E3:
- User manual (52 pages) ,
- User manual (40 pages) ,
- Service manual (23 pages)
Subscribe to Our Youtube Channel
Related Manuals for Invertek Drives OPTIDRIVE E3
Summary of Contents for Invertek Drives OPTIDRIVE E3
- Page 1 2019 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) SERVICE MANUAL Frame Size 4 240V - 480V Outdoor rated drive Assembly/disassembly IP66 Page 1 of 18...
-
Page 2: Table Of Contents
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Contents Page no: Tools required…………………………………………………………………………………………3 Terminal cover removal (Non-switched) ................3 Terminal cover removal (Switched) ..................4 Plastic cover removal (Switched & Non switched) ..............5 Filter board removal (switched/Non Switched) ..............7 Power board removal (switched) ................... -
Page 3: Tools Required
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Terminal cover removal (Non-switched) Place the drive on a flat surface Using a Philips screwdriver remove the terminal cover. The drive will look as shown opposite Page 3 of 18... -
Page 4: Terminal Cover Removal (Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Terminal cover removal (Switched) Place the drive on a flat surface Using a Philips screwdriver remove the terminal cover. The drive will look as shown opposite Page 4 of 18... -
Page 5: Plastic Cover Removal (Switched & Non Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Plastic cover removal (Switched & Non switched) Using a torx screwdriver T20, remove the motor cable earth screw (1.5Nm) Using a torx screwdriver T20, remove the 6 x corner screws (1.5Nm) Place the drive on its side then pull the top cover away from the... - Page 6 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Please note that antistatic precautions must be taken when haddling the PCB A ribbon cable is connected from the top cover to the power board. To disconnect this ribbon cable, push the connector in the direction highlighted and the ribbon cable will be loose.
-
Page 7: Filter Board Removal (Switched/Non Switched)
2019 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) Filter board removal (switched/Non Switched) Using a Torx 25 Screwdriver remove the 4 x screw Torque setting 4.0Nm Using a pair of long nose pliers, push white plastics tabs highlight opposite together, this will release the filter board The picture opposite shows an... - Page 8 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Before the boards can be split apart, there is connector in the cover of the PCB, please see picture attached. This is a push fit connector and can be disconnected by splitting the connector in the direction highlighted.
-
Page 9: Power Board Removal (Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Power board removal (switched) Using a Torx 20 Screwdriver remove the 2 x screws highlighted in red Torque setting 2.3Nm Disconnect the isolator highlighted in yellow using a Philips screwdriver Torque setting 2.0Nm 3) Using a Torx 20 Screwdriver remove the... - Page 10 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Using a pair of long nose pliers, push white plastics tabs highlight opposite in yellow together, this will release the power board The heatsink will look as shown opposite Page 10 of 18...
-
Page 11: Power Board Removal (Non-Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Power board removal (Non-switched) Using a Torx 20 Screwdriver remove the 2 x screw highlighted in red Torque setting 2.3Nm 1) Using a Torx 20 Screwdriver remove the screws highlighted in yellow Torque setting 1.5Nm 2) Using a Philips screwdriver, remove the screw... - Page 12 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 The heatsink will look as shown opposite Page 12 of 18...
-
Page 13: Fan Removal On Heatsink (Switched & Non-Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Fan removal on heatsink (Switched & Non-Switched) The external fans are held in position by 6 x T15 screw. Remove the screws. Torque setting, hand tight The fan lead can now be treaded through the heatsink. -
Page 14: Control Board And Switch Assembly Removal (Switched & Non-Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Control board and switch assembly removal (Switched & Non- Switched) Place the top cover face down as shown opposite Using a torx 15 screw driver, remove the screw highlighted opposite, torque setting 0.5Nm As highlighted in yellow, push the 2 x clips inwards to release the option board... - Page 15 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 The control board and switch assembly can now be changed if required The picture opposite shows the facia label, this part can also be replaced if required If the pot or forward/reverse switch is damaged, these too can be replaced.
-
Page 16: Control Board Removal (Non-Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Control board removal (Non-switched) Place the top cover face down as shown opposite Using a torx 15 screw driver, remove the screw highlighted opposite, torque setting 0.5Nm The control board is connected to front cover by a ribbon cable, to release it, pull the ribbon cable away for the control board in the... - Page 17 SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 The control board and switch assembly can now be changed if required The picture opposite shows the facia label, this part can also be replaced if required Page 17 of 18...
-
Page 18: Fan Removal From Plastic Cover (Switched & Non-Switched)
SERVICE MANUAL ODE-3 FRAME SIZE 4 IP66 (OUTDOOR RATED) 2019 Fan removal from plastic cover (Switched & Non-switched) Place the cover face down on flat surface. The following applies to Switched and Non switched variants drives. The internal fan is pushed into place and is held in position by the clip highlighted opposite.
