Diagram 13
(NO) (NC) (NO)
Close Open Close
FWD Stop REV

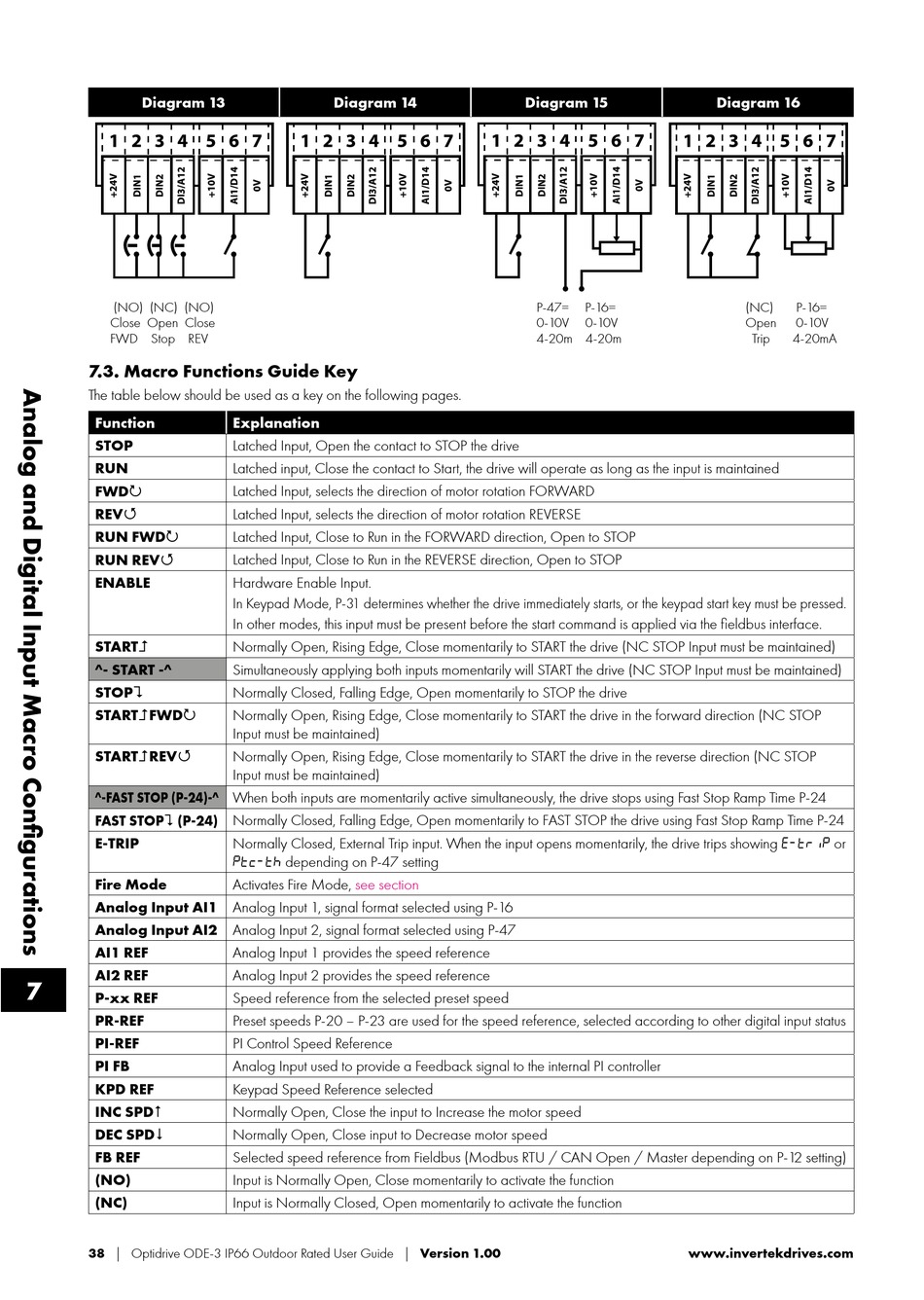

7.3. Macro Functions Guide Key

The table below should be used as a key on the following pages.
Function
STOP
RUN
FWD
REV
RUN FWD
RUN REV
ENABLE
START
^- START -^
STOP
STARTFWD
STARTREV
^-FAST STOP (P-24)-^ When both inputs are momentarily active simultaneously, the drive stops using Fast Stop Ramp Time P-24
FAST STOP (P-24) Normally Closed, Falling Edge, Open momentarily to FAST STOP the drive using Fast Stop Ramp Time P-24
E-TRIP
Fire Mode
Analog Input AI1 Analog Input 1, signal format selected using P-16
Analog Input AI2 Analog Input 2, signal format selected using P-47
AI1 REF
AI2 REF
7
P-xx REF
PR-REF
PI-REF
PI FB
KPD REF
INC SPD
DEC SPD
FB REF
(NO)
(NC)
38 | Optidrive ODE-3 IP66 Outdoor Rated User Guide | Version 1.00
Diagram 14
Explanation
Latched Input, Open the contact to STOP the drive
Latched input, Close the contact to Start, the drive will operate as long as the input is maintained
Latched Input, selects the direction of motor rotation FORWARD
Latched Input, selects the direction of motor rotation REVERSE
Latched Input, Close to Run in the FORWARD direction, Open to STOP
Latched Input, Close to Run in the REVERSE direction, Open to STOP
Hardware Enable Input.
In Keypad Mode, P-31 determines whether the drive immediately starts, or the keypad start key must be pressed.
In other modes, this input must be present before the start command is applied via the fieldbus interface.
Normally Open, Rising Edge, Close momentarily to START the drive (NC STOP Input must be maintained)
Simultaneously applying both inputs momentarily will START the drive (NC STOP Input must be maintained)
Normally Closed, Falling Edge, Open momentarily to STOP the drive
Normally Open, Rising Edge, Close momentarily to START the drive in the forward direction (NC STOP
Input must be maintained)
Normally Open, Rising Edge, Close momentarily to START the drive in the reverse direction (NC STOP
Input must be maintained)
Normally Closed, External Trip input. When the input opens momentarily, the drive trips showing  or
 depending on P-47 setting
Activates Fire Mode, see section
Analog Input 1 provides the speed reference
Analog Input 2 provides the speed reference
Speed reference from the selected preset speed
Preset speeds P-20 – P-23 are used for the speed reference, selected according to other digital input status
PI Control Speed Reference
Analog Input used to provide a Feedback signal to the internal PI controller
Keypad Speed Reference selected
Normally Open, Close the input to Increase the motor speed
Normally Open, Close input to Decrease motor speed
Selected speed reference from Fieldbus (Modbus RTU / CAN Open / Master depending on P-12 setting)
Input is Normally Open, Close momentarily to activate the function
Input is Normally Closed, Open momentarily to activate the function
Diagram 15
P-47= P-16=
0-10V 0-10V
4-20m 4-20m
www.invertekdrives.com
Diagram 16
(NC) P-16=
Open 0-10V
Trip 4-20mA
