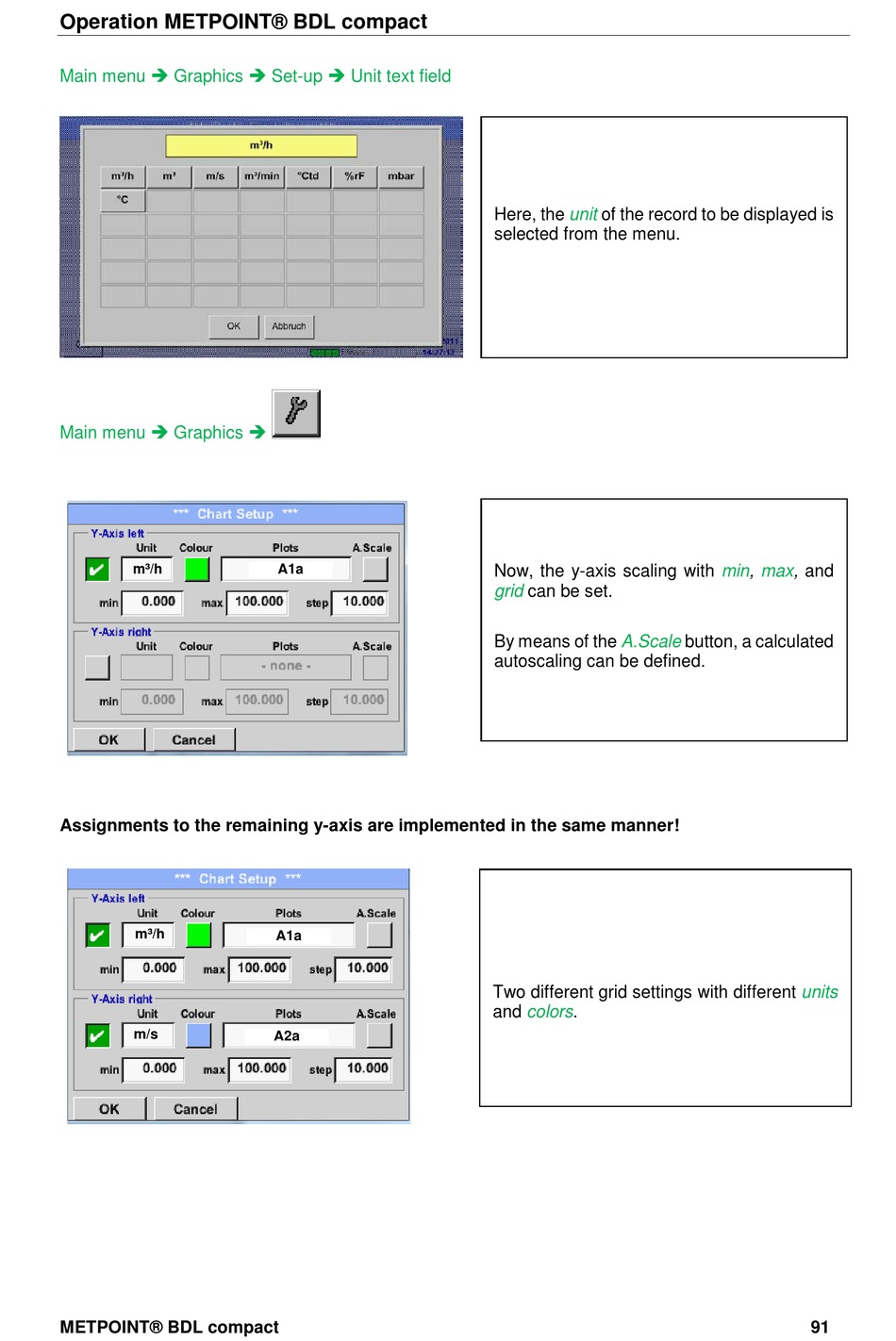

Operation METPOINT® BDL compact
Main menu Graphics Set-up Unit text field
Main menu Graphics
m³/h
Assignments to the remaining y-axis are implemented in the same manner!
m³/h
m/s
METPOINT® BDL compact
A1a
A1a
A2a
Here, the
unit
of the record to be displayed is
selected from the menu.
Now, the y-axis scaling with min, max, and
grid
can be set.
By means of the
A.Scale
autoscaling can be defined.
Two different grid settings with different
and colors.
button, a calculated
units
91
