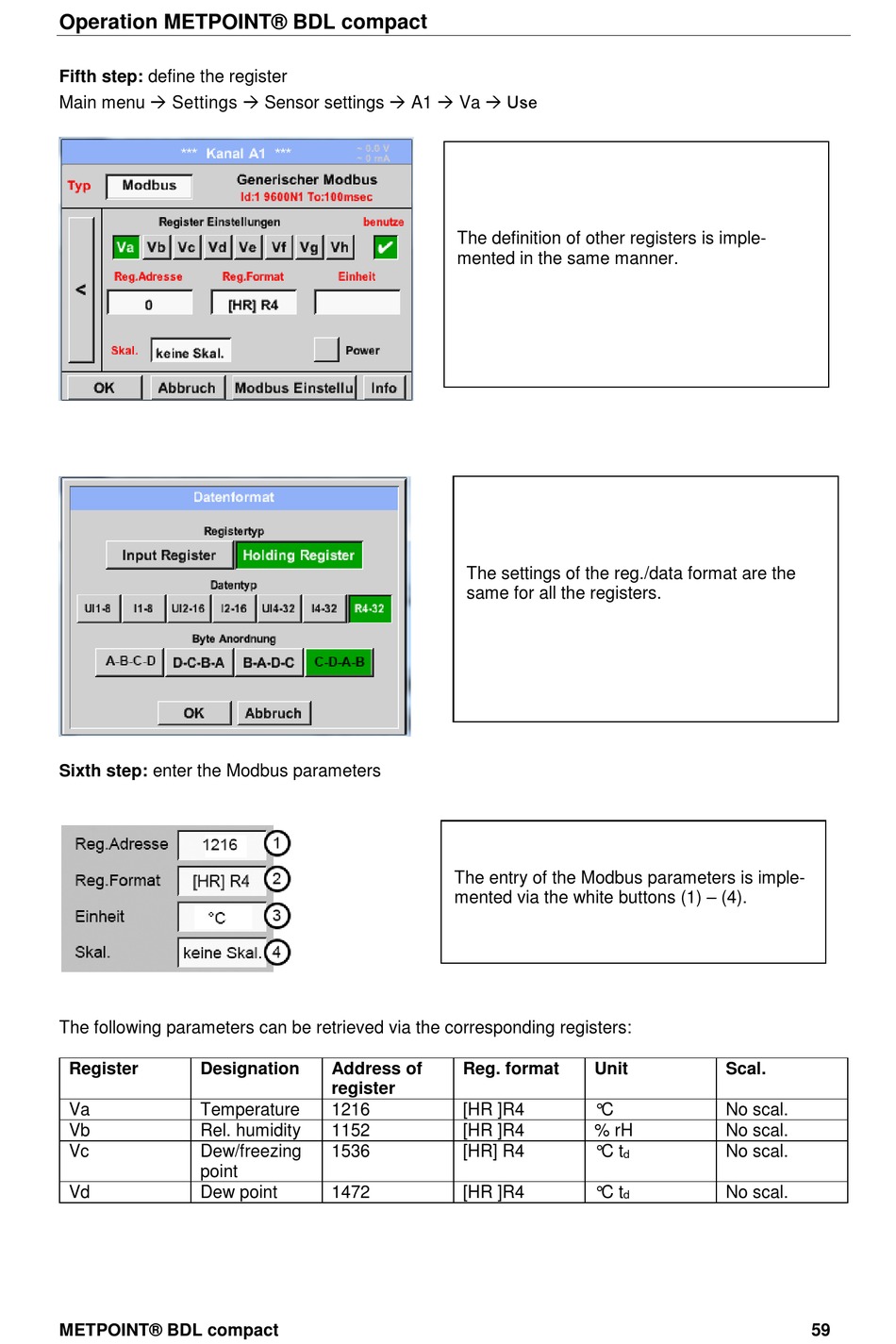

Operation METPOINT® BDL compact
Fifth step: define the register
Main menu  Settings  Sensor settings  A1  Va  Use
Sixth step: enter the Modbus parameters
The following parameters can be retrieved via the corresponding registers:
Register Designation
Va Temperature
Vb Rel. humidity
Vc Dew/freezing
point
Vd Dew point
METPOINT® BDL compact
The definition of other registers is imple-
mented in the same manner.
The settings of the reg./data format are the
same for all the registers.
The entry of the Modbus parameters is imple-
mented via the white buttons (1) – (4).
Address of Reg. format
register
1216 [HR ]R4
1152 [HR ]R4
1536 [HR] R4
1472 [HR ]R4
Unit Scal.
°C No scal.
% rH No scal.
°C t No scal.
d
°C t No scal.
d
59
