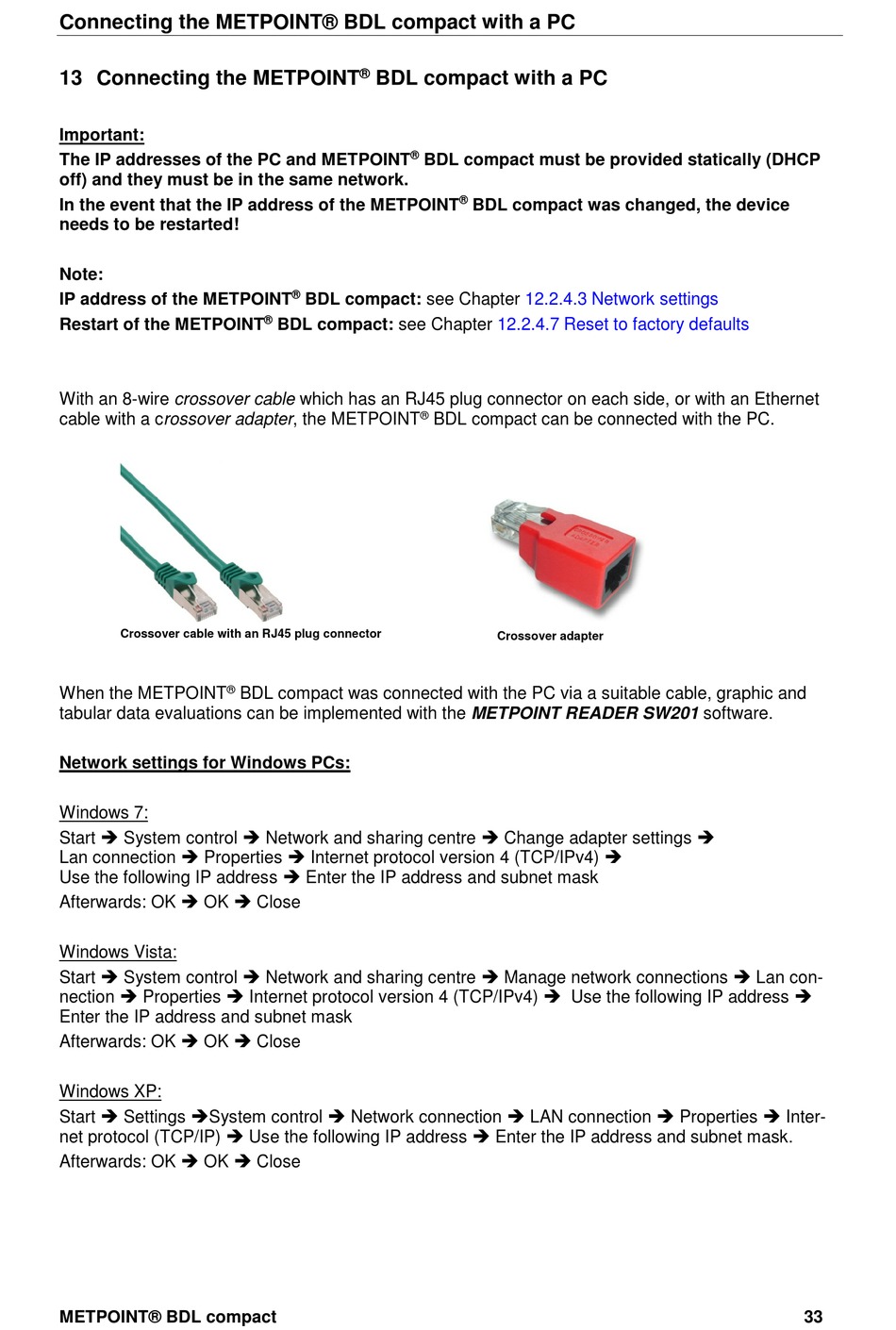

Connecting the METPOINT® BDL compact with a PC

13 Connecting the METPOINT

Important:

The IP addresses of the PC and METPOINT

off) and they must be in the same network.

In the event that the IP address of the METPOINT

needs to be restarted!

Note:

IP address of the METPOINT

Restart of the METPOINT

With an 8-wire crossover cable which has an RJ45 plug connector on each side, or with an Ethernet

cable with a crossover adapter, the METPOINT

Crossover cable with an RJ45 plug connector

When the METPOINT

tabular data evaluations can be implemented with the METPOINT READER SW201 software.

Network settings for Windows PCs:

Windows 7:

Start  System control  Network and sharing centre  Change adapter settings 

Lan connection  Properties  Internet protocol version 4 (TCP/IPv4) 

Use the following IP address  Enter the IP address and subnet mask

Afterwards: OK  OK  Close

Windows Vista:

Start  System control  Network and sharing centre  Manage network connections  Lan con-

nection  Properties  Internet protocol version 4 (TCP/IPv4)  Use the following IP address 

Enter the IP address and subnet mask

Afterwards: OK  OK  Close

Windows XP:

Start  Settings System control  Network connection  LAN connection  Properties  Inter-

net protocol (TCP/IP)  Use the following IP address  Enter the IP address and subnet mask.

Afterwards: OK  OK  Close

METPOINT® BDL compact

BDL compact with a PC

BDL compact: see Chapter

BDL compact was connected with the PC via a suitable cable, graphic and

BDL compact must be provided statically (DHCP

BDL compact was changed, the device

12.2.4.3 Network settings

12.2.4.7 Reset to factory defaults

BDL compact can be connected with the PC.

Crossover adapter
