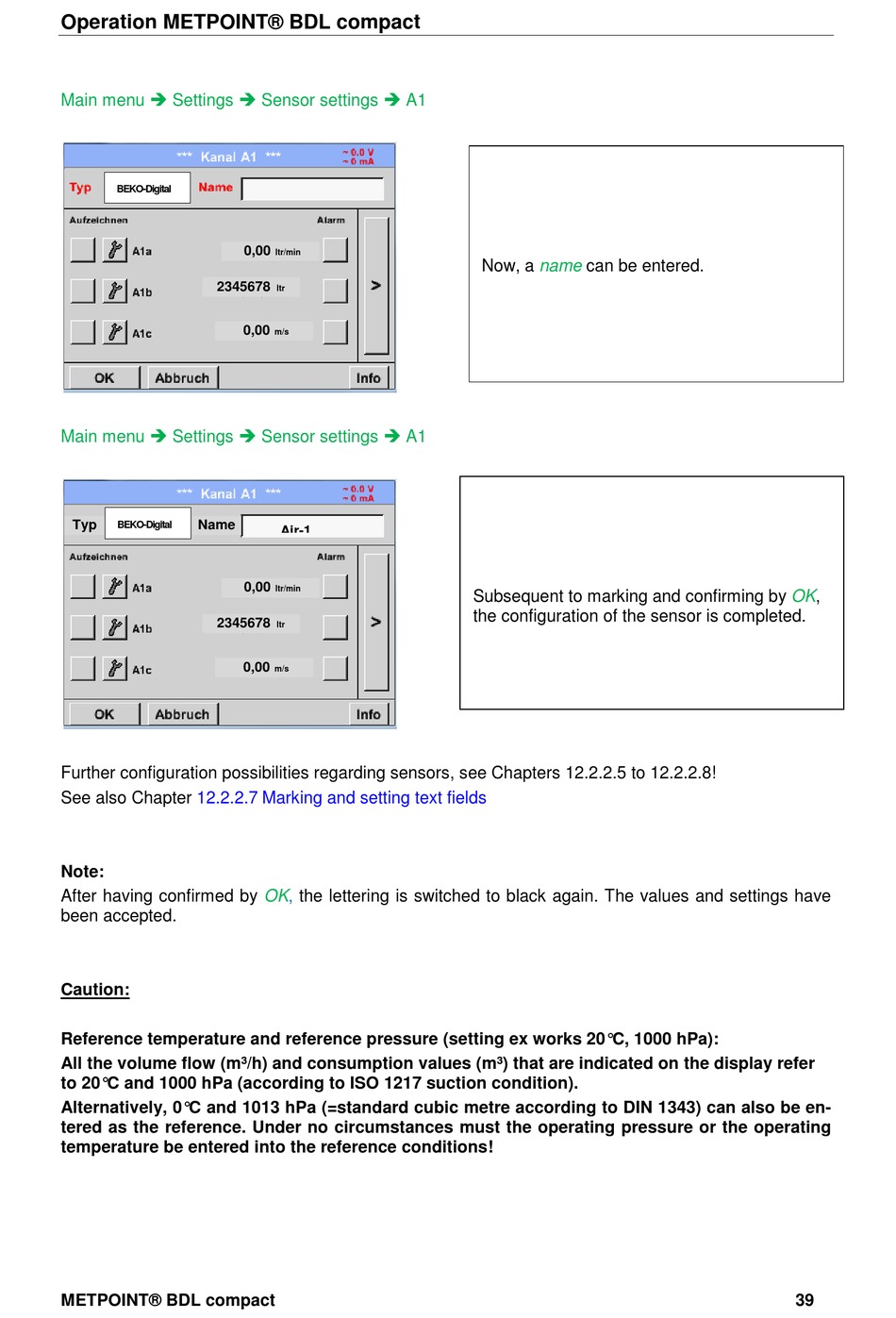

Operation METPOINT® BDL compact
Main menu Settings Sensor settings A1
BEKO-Digital
2345678
Main menu Settings Sensor settings A1
Typ
Name
BEKO-Digital
2345678
Further configuration possibilities regarding sensors, see Chapters 12.2.2.5 to 12.2.2.8!
See also Chapter
12.2.2.7 Marking and setting text fields
Note:
After having confirmed by
been accepted.
Caution:
Reference temperature and reference pressure (setting ex works 20°C, 1000 hPa):
All the volume flow (m³/h) and consumption values (m³) that are indicated on the display refer
to 20°C and 1000 hPa (according to ISO 1217 suction condition).
Alternatively, 0°C and 1013 hPa (=standard cubic metre according to DIN 1343) can also be en-
tered as the reference. Under no circumstances must the operating pressure or the operating
temperature be entered into the reference conditions!
METPOINT® BDL compact
0,00
ltr/min
ltr
0,00
m/s
Air-1
0,00
ltr/min
ltr
0,00
m/s
OK,
the lettering is switched to black again. The values and settings have
Now, a
name
can be entered.
Subsequent to marking and confirming by OK,
the configuration of the sensor is completed.
39
