5.2.11
Real-time (via EtherCAT) and parallel (via
Ethernet) output of signals to a data recorder
Every source in a QuantumX system is split into two signals that can be parameterized with
different data rates and filters.
For example, the first signal of an input channel with a high data rate, e.g. acceleration
sensor with 96,000 measured values per second and deactivated filter (38 kHz maximum
bandwidth), can be output to PC software for analysis while the second signal with 4,800
measured values per second and 600 Hz filter can be output via CAN or EtherCAT.
CX27
KAB269

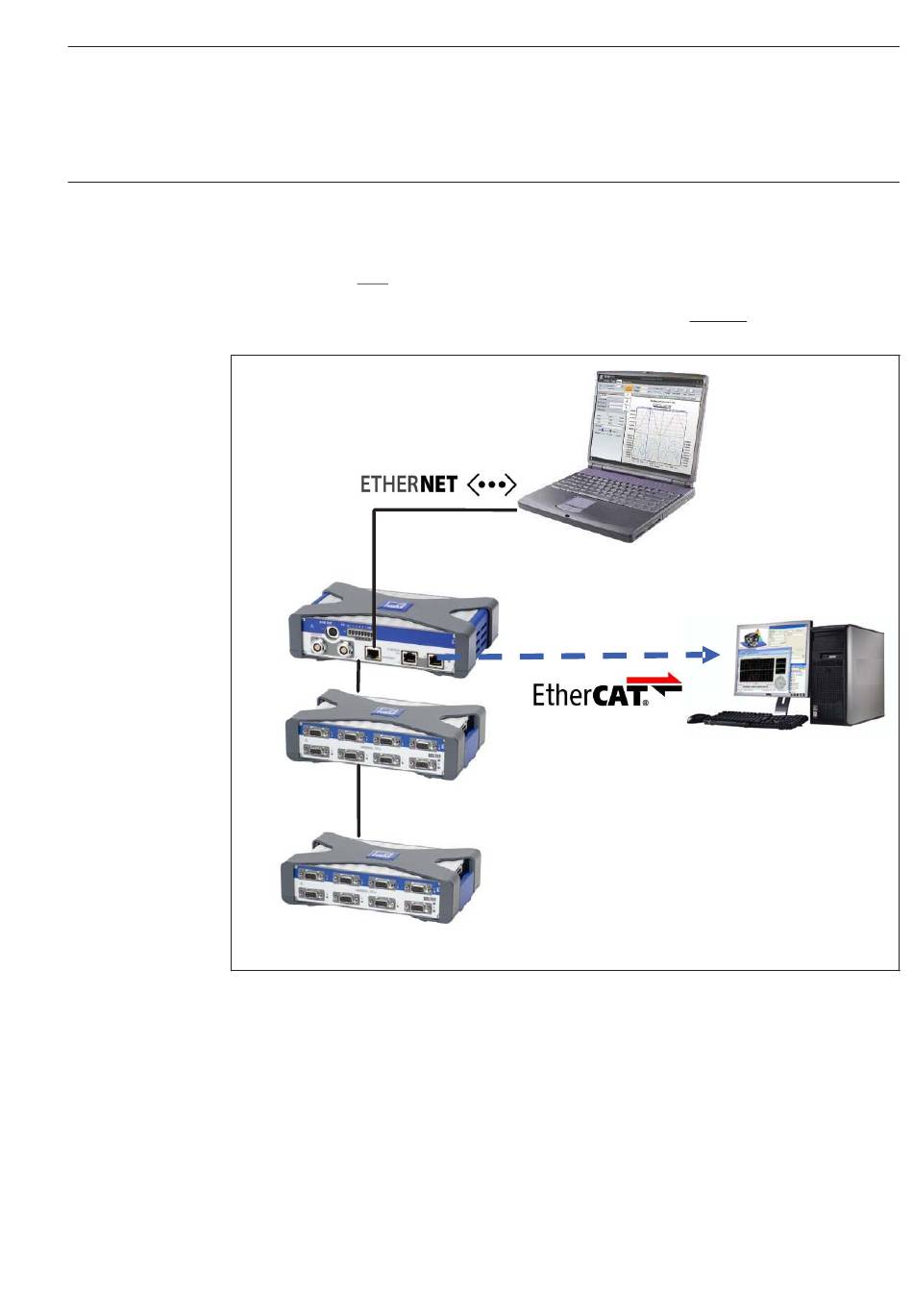

Fig.5.12:
Real-time output via EtherCAT / Ethernt
QuantumX
HBM
