6.10.1

MX1615 pin assignment

To enable insertion or removal of a transducer connection to be unmistakably identified, Pin
4 and Pin 5 in the connector plug must be bridged! This is automatically the case with all
bridge transducers; this bridge needs to be completed only in the event of voltage
measurements. If this bridge is missing, no measurement values will be recorded at the
connection!

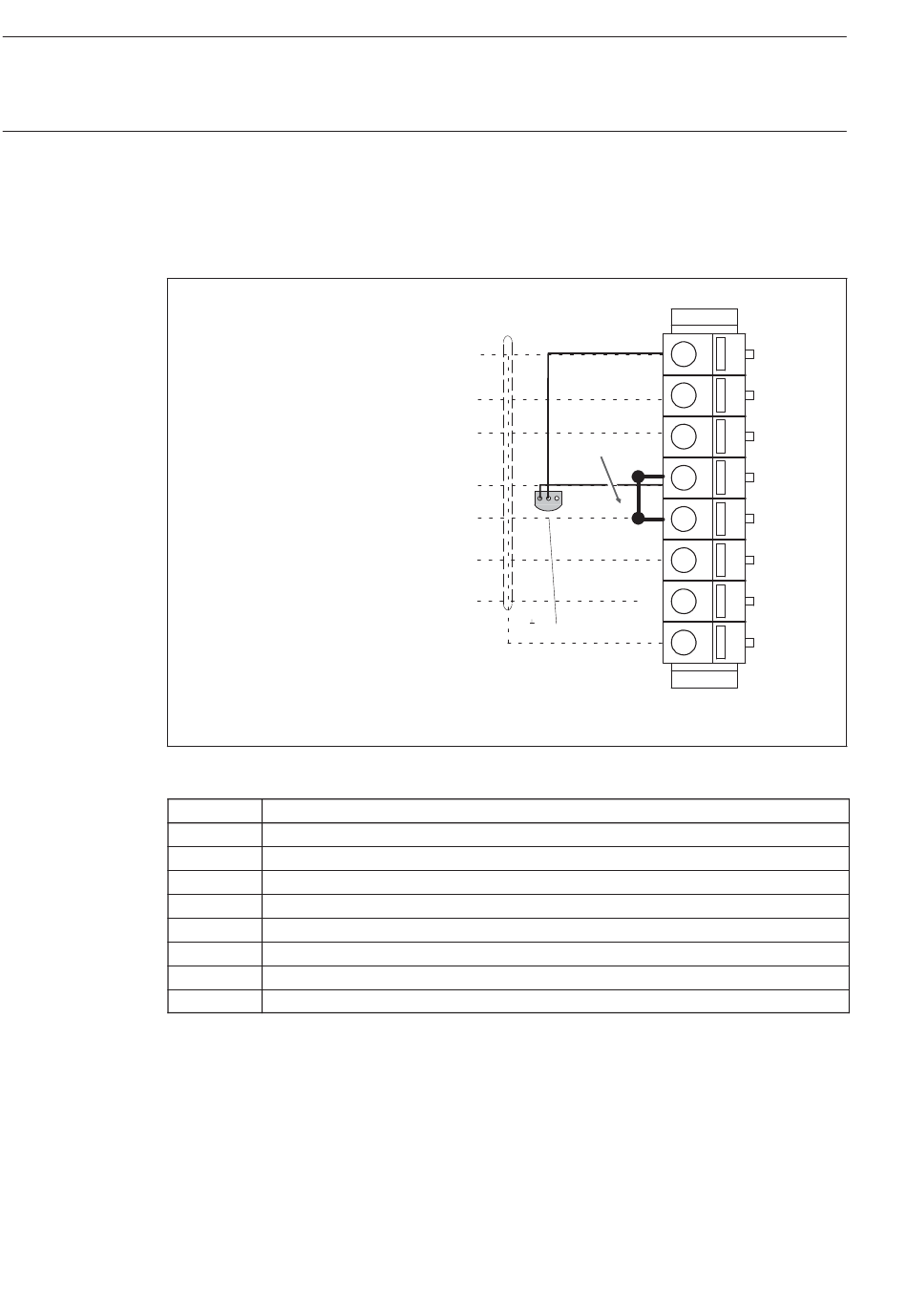

Fig.6.15:
HBM
Pin assignment of the connector plug, view from the connection side
Pin Connection
1 TEDS
2 Bridge excitation voltage (+)
3 Sense lead (+)
4 Bridge excitation voltage (−)
5 Sense lead (−)
6 Measuerment signal (+)
7 Measurement signal (−)
8 Housing (shield connection)
Bridge
1 2 3
1
2 Data
3 no function
1-Wire-EEPROM
(Maxim DS2433+) Bottom view
Connection
1
2
3
4
5
6
7
8
