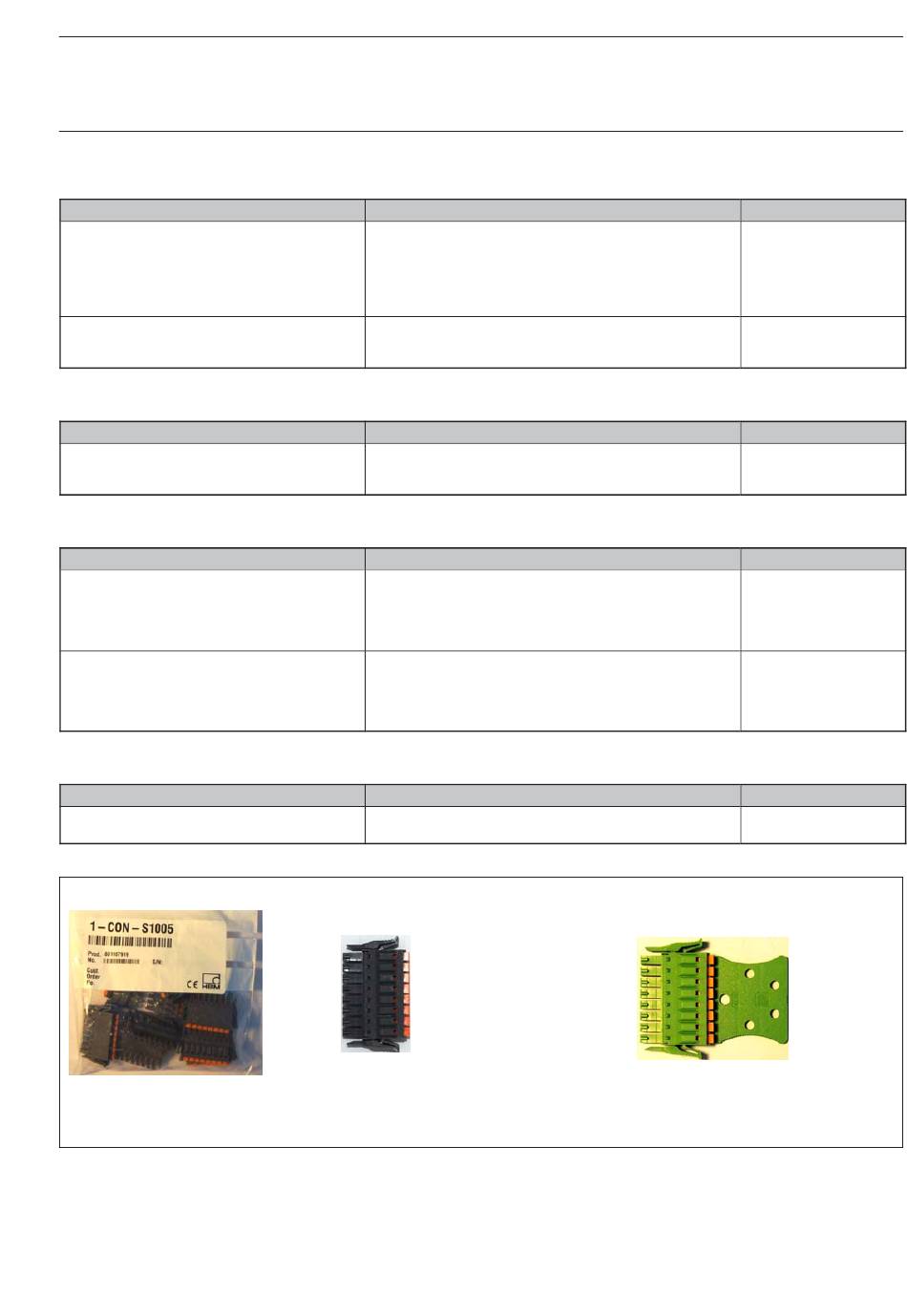

HBM QuantumX MX840 Operating Manual page 168

Accessories
MX840/MX840A accessories
Article
Cold junction for thermocouple on MX840,
MX840A, MX440
Adapter D−Sub−HD15 to D−Sub9 (CAN) on
MX840, MX840A
MX410 accessories
Article
BNC adapter for IEPE sensors with BNC
MX1609, 1609P and 1609T accessories
Article
Bag with 10 mini thermocouple plugs, incl. RFID
for thermocouple type K
Bag with 10 mini thermocouple plugs, incl. RFID
for thermocouple type T
MX879, MX1601 and 1615 accessories
Article
Push-in connectors (8 pins)
Push-in connectors
Packet comprising 10 push-in terminals
(8 pins)
(directly from HBM, 1−CON−S1005)
QuantumX
Description
Electronics for temperature compensation for measurements
with thermocouples on MX840, MX840A, MX460, comprising:
− PT1000 cold junction
− Including 1-wire TEDS chip for transducer identification
Note: Mounting in D−Sub−HD 15-pin transducer plug.
Adapter for connecting CAN devices to MX840, MX840A,
MX460. D−Sub−HD 15-pin (plug) to D−Sub 9-pin (socket);
(length: approx. 30 cm).
Description
Adapter for connecting IEPE sensors with BNC connection
cable to MX410 (BNC socket to 15-pin D−Sub−HD; length:
approx. 7 cm).
Description
Packet, comprising 10 x mini thermocouple plugs with
integrated RFID chip for measuring point detection for the
MX1609 thermocouple measuring amplifier of the QuantumX
product family; Type K: NiCr−NiAl, RFID integrated, green,
male.
Packet, comprising 10 x mini thermocouple plugs with
integrated RFID chip for measuring point detection for the
MX1609 thermocouple measuring amplifier of the QuantumX
product family; Type T: Co−CoNi, RFID integrated, brown,
male.
Description
10 push-in connectors, Phönix Contact, 8 pins
(Module: MX879, MX1601, MX1615)
Phönix push-in connector
without strain refief
Available from Phoenix (http://www.phoenix-
contact.com)
Type : FMC 1,5/ 8-ST-3,5-RF
Order no.: 1952089
Order No.
1-THERMO-MXBOARD
1-KAB418
Order No.
1-IEPE-MX410
Order No.
1-THERMO-MINI
1-THERMO-MINI−T
Order No.
1−CON−S1005
Phönix push-in connector
with strain relief
Available from Phoenix (http://www.phoenix-
contact.com):
Type : FMC 1,5/8-STZ3−3,5-RF
Order no. : 1702246
